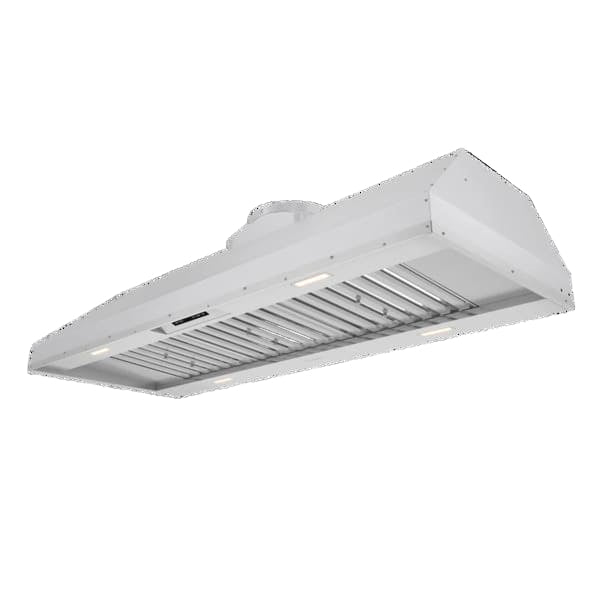

Thor Kitchen 60 Inch Range Hood Liner Wall Mount - XLH60

Thor Kitchen 60 Inch XLH60 Range Hood Insert

Elevate your kitchen with the Thor Kitchen 60 Inch Liner Wall Mount Range Hood (Model XLH60). Built for serious home chefs, this professional-grade hood combines high-end performance with sleek design. The 1200 CFM motor easily clears smoke, odors, and steam, while intuitive gesture and touch controls give you total command with just a wave of your hand. Its customizable liner insert fits seamlessly into custom cabinetry, delivering both power and style.

Thor Kitchen XLH60 Range Hood Features

• 1200 CFM Power – Eliminates smoke, odors, and steam from multiple dishes.
• Heat Sensor Protection – Automatically activates at 131°F and shuts down at 104°F for safety.
• 6-Speed Function – Choose the exact ventilation power you need.

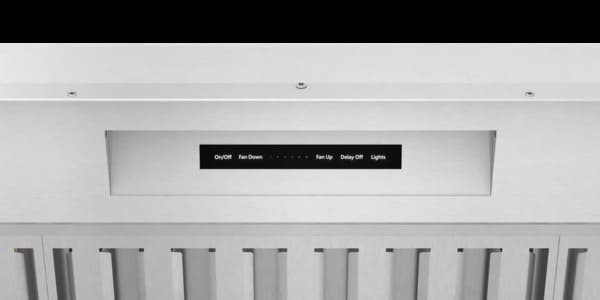

• Gesture & Touch Controls – Adjust fan speed with a wave or responsive touch panel.

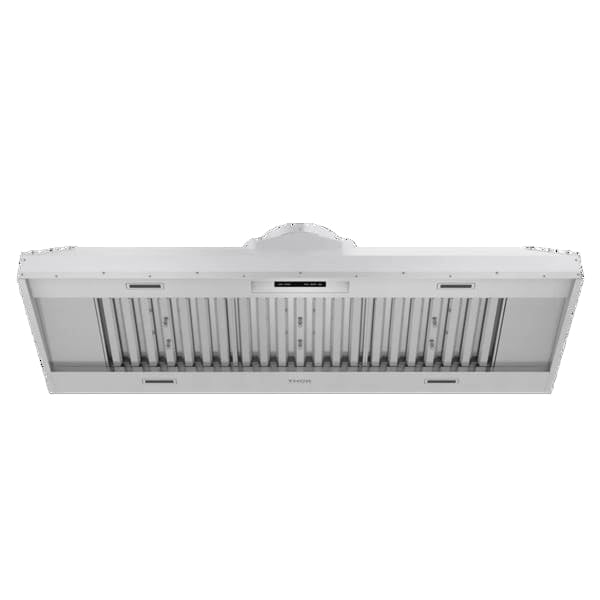

• LED Illumination – Four bright, energy-efficient LED square bulbs light your cooking area.

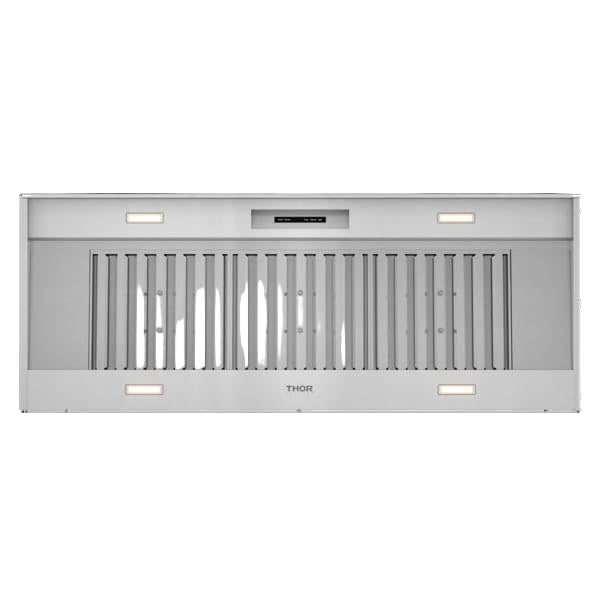

• Dishwasher-Safe Filters – 3 deep-groove stainless steel baffle filters for easy cleaning.
• Clean & Replace Reminders – Filter maintenance and charcoal filter replacement alerts.
• Seamless Integration – Designed for smooth installation into custom cabinets.

60 Inch Thor Kitchen Wall Mount Hood Specifications

• Mount Type: Insert (Liner Hood)
• Operating Mode: Ducted
• Finish: Stainless Steel
• Fan Speeds: 6 Adjustable Levels
• Lighting: 4 x LED Square Bulbs
• Controls: Gesture & Touch Panel
• Filters: 3 x Baffle Filters
• Power Requirements: 120V / 60Hz / 7A
• Duct Diameter: 10″
• Dimensions (Product): 58 15/16″ W × 22 1/2″ D × 12″ H
• Dimensions (Carton): 62 63/64″ W × 16 59/64″ D × 28 47/64″ H
• Cutout Size: 59 1/8″ W × 22 3/4″ D × 12″ H (minimum)
• Weight: 72.1 lbs. Net / 88.7 lbs. Gross

Thor Kitchen XLH60 Insert Hood Installation Manual

📄 Download Installation Manual (PDF)

📄 Download Specification Manual (PDF)
