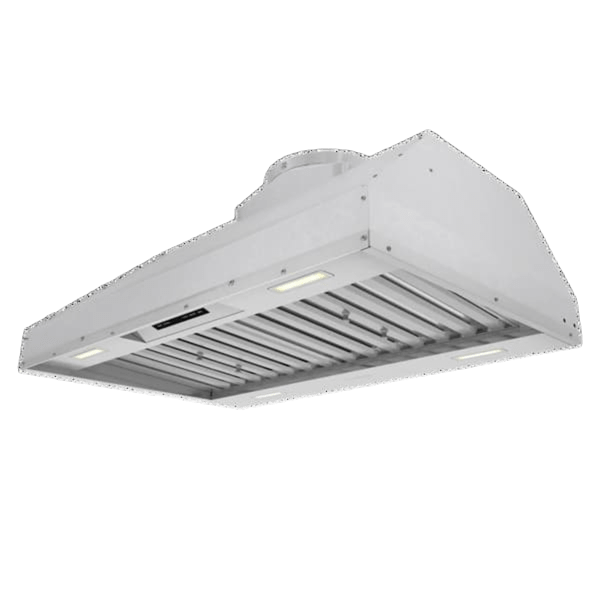

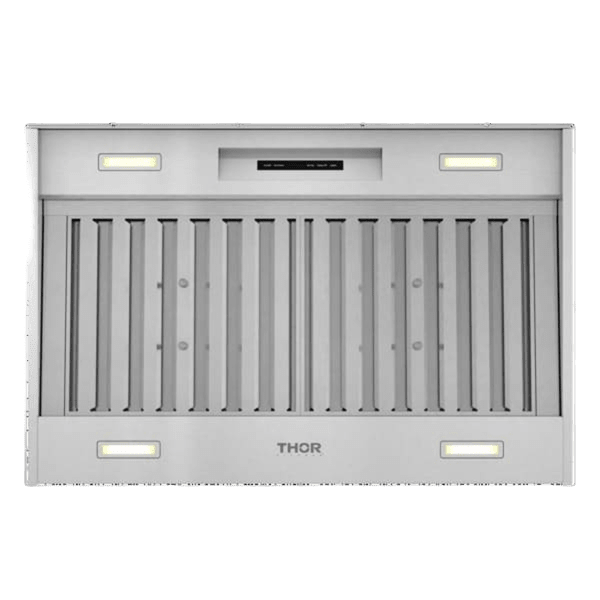

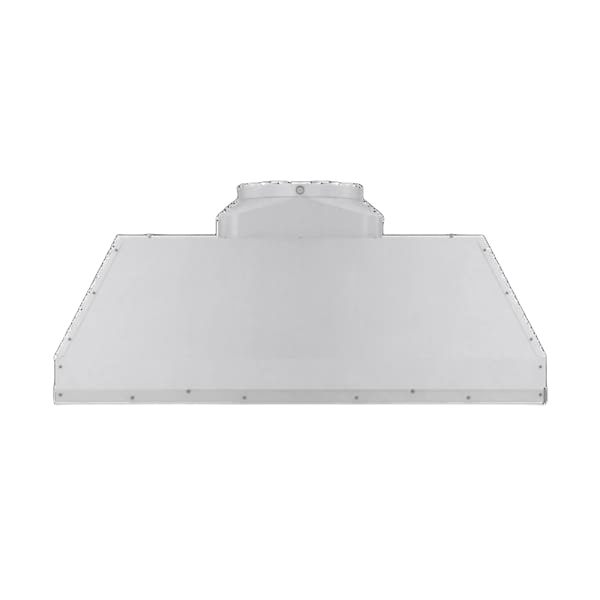

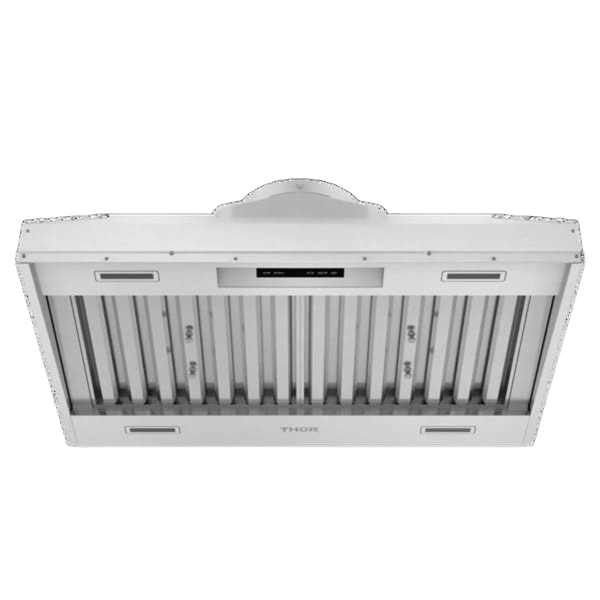

THOR Kitchen 36" Wall Mount Range Hood Liner - XLH36

THOR Kitchen XLH36 36" Wall Mount Range Hood Liner

Professional-Grade Ventilation for Modern Kitchens

Bring power and style into your kitchen with the THOR Kitchen XLH36 36-Inch Wall Mount Range Hood Liner. Designed for custom cabinet installations, this hood delivers exceptional performance with a 1200 CFM motor, intuitive gesture controls, and intelligent heat-sensing technology. From heavy smoke to lingering odors, this range hood keeps your kitchen fresh, clean, and well-lit while blending seamlessly into your space.

Thor Kitchen 36-Inch Range Hood Liner Features

• Heat Sensor – Integrated sensor detects abnormal temperature spikes, automatically protecting your home and optimizing energy efficiency.
• Replacement Indicator – 5-layer aluminum mesh filter includes reminders for filter cleaning and charcoal filter replacement (charcoal filter sold separately).
• 6 Speed Function – Six adjustable fan speeds handle everything from simmering steam to smoke from multiple dishes.
• LED Lighting – Bright, built-in LED lights provide excellent cooktop illumination.
• Gesture Controls – Adjust fan speeds or power on/off with a simple wave of your hand.
• Delay-Off Function – Set a timer to automatically shut off the fan up to 12 minutes after cooking.
• Color – Stainless Steel finish for a timeless, modern, and durable look.
• Stainless Steel Baffle Filters – Heavy-duty filters capture grease efficiently and are dishwasher-safe for easy cleaning.
• Powerful 1200 CFM Motor – Effectively clears smoke, odors, and grease from your kitchen.
• Filter Maintenance Reminders – Stay on top of cleaning for peak performance and air quality.

THOR Kitchen XLH36 Vent Hood Specifications

• Mount Type: Insert / Liner
• Operating Mode: Ducted
• Finish: Stainless Steel
• Speeds: 6
• Lights: 4 Square LED
• Controls: Touch Panel & Gesture
• Filters: 2 Stainless Steel Baffle Filters
• Electrical: 120V / 60Hz / 7A
• Dimensions: 34 5/16” W x 22 1/2” D x 12” H
• Duct Diameter: 10″
• Cutout Dimensions: 34 5/8” W x 22 3/4” D x 12” H or higher
• Weight: Net 54.5 lbs. | Gross 68.5 lbs.

Stainless Steel Range Hood Installation Manual – XLH36

📄 Specification Sheet (PDF)
📄 Use & Care Manual (PDF)
