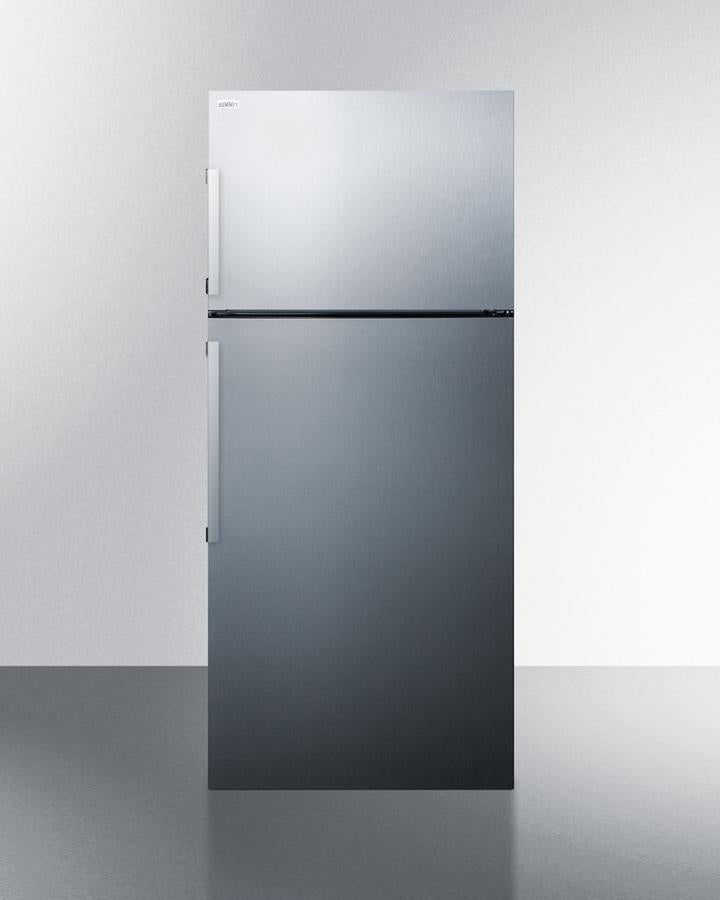

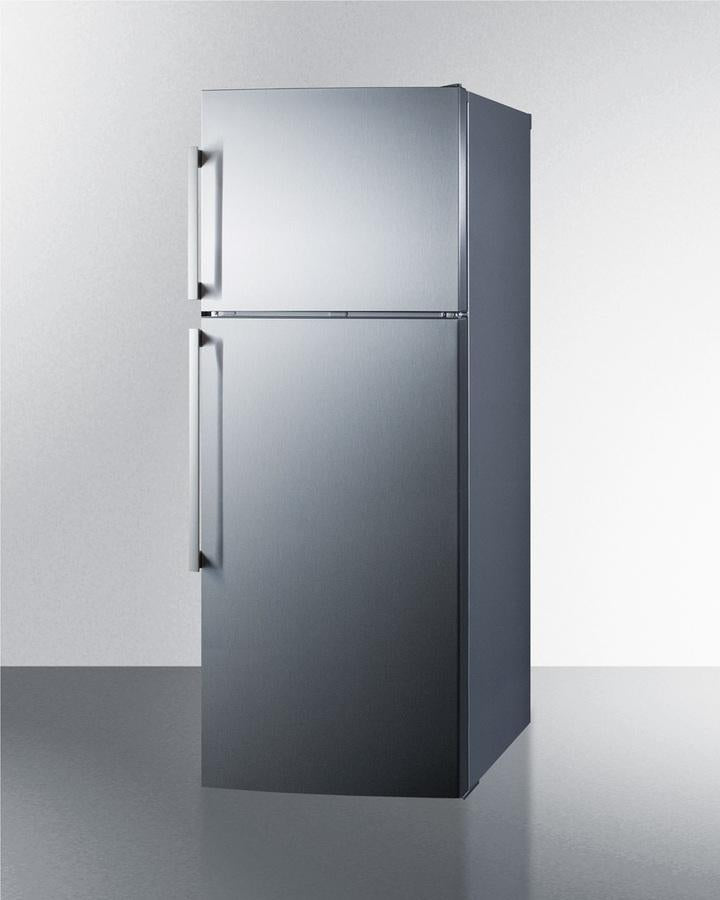

Summit 28" Wide Top Mount Refrigerator-Freezer With Icemaker - FF1512SSIM

Summit 28" Wide Top Mount Refrigerator-Freezer With Icemaker - FF1512SSIM

SUMMIT carries one of the industry's most extensive lines of ENERGY STAR certified frost-free refrigerator-freezers in unique counter depth footprints for apartments and smaller kitchens.

Made for us in Europe, the FF1512SSIM comes with an attractive platinum cabinet and stainless steel doors. Designer style handles complete the modern look. At less than 26" deep, it offers a generous 12.6 cu.ft. capacity for maximum storage in a convenient fit.

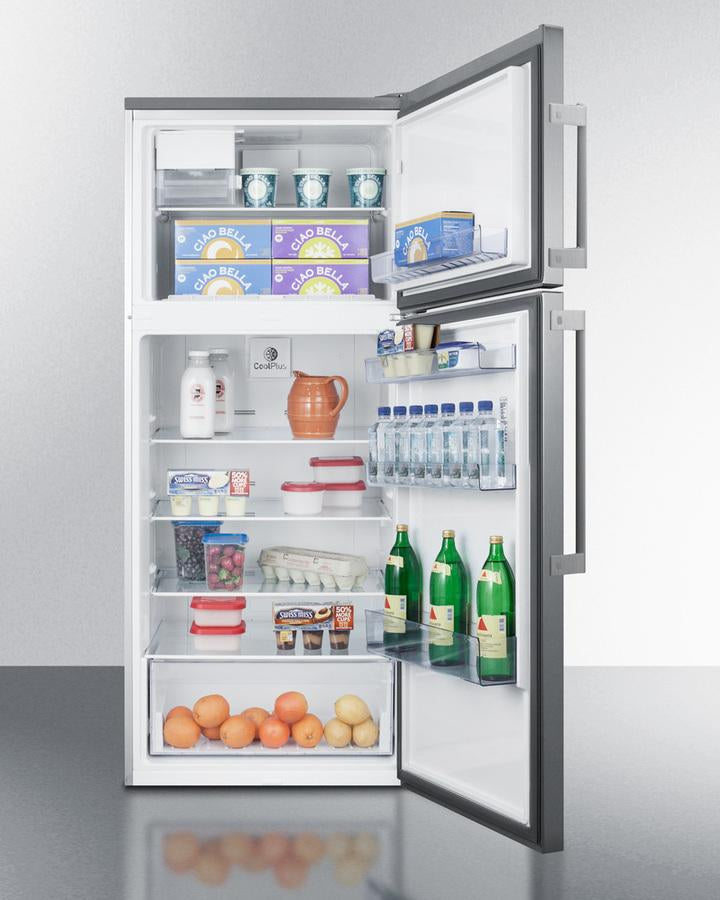

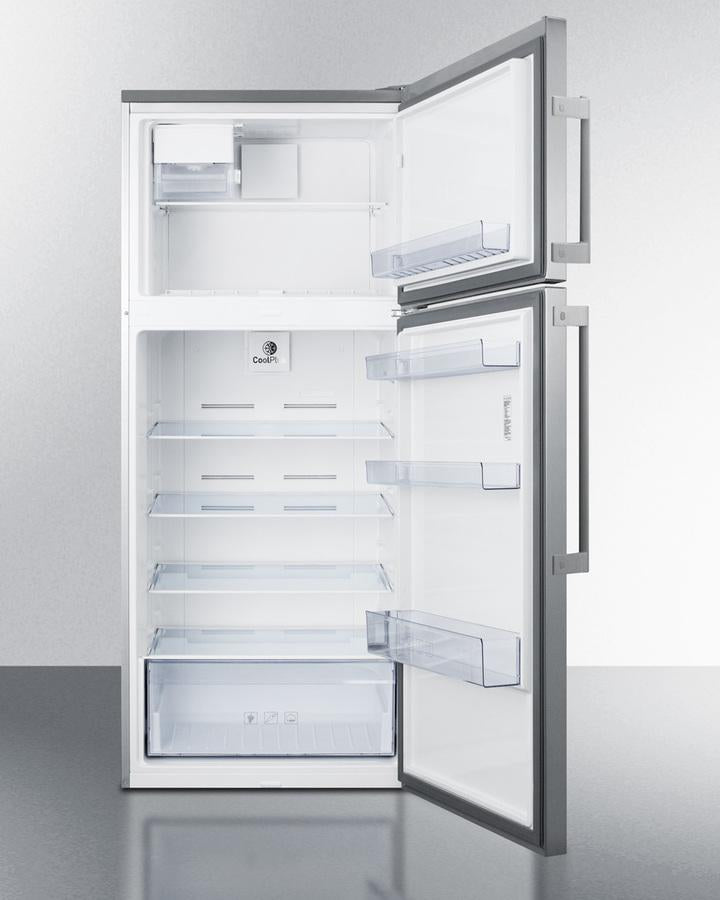

Inside, the FF1512SSIM utilizes frost-free operation for minimum user maintenance and a dual evaporator system for improved cooling. Adjustable glass shelves offer spill-proof storage while multiple door racks are ideal for keeping condiments in easy reach. A large clear crisper drawer is included for optimum produce storage. The freezer compartment includes a glass shelf, door rack, and factory installed icemaker.

Additional features make the FF1512SSIM a user-friendly choice. LED lighting in the side walls of the refrigerator offers an efficient and attractive view inside. This unit includes an innovative touch control system that lets you manage the refrigerator and freezer temperature with an intuitive digital thermostat. For added energy savings, it features a vacation setting. The open door alarm alerts with an audio and visual signal when the door is left ajar for over one minute.

The FF1512SSIM is ENERGY STAR certified to ensure an efficient and low cost performance. With its professional style, unique size, and innovative features, this model is a great choice for smaller kitchens with full storage needs. For this unit without an icemaker, see the FF1511SS. This unit has been designated as one of the Most Efficient ENERGY STAR certified products.

Features

• ENERGY STAR Most Efficient 2016 recognition: This unit has been recognized as the Most Efficient of ENERGY STAR 2016, helping to prevent greenhouse gas emissions by meeting rigorous energy efficiency performance levels set by the U.S. Environmental Protection Agency
• CEE Tier I qualified: Efficient design meets CEE Tier I specifications, using 20% less energy than DOE standards require for this product category
• ENERGY STAR certified: Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs
• Stainless steel doors: Attractive look with lasting durability

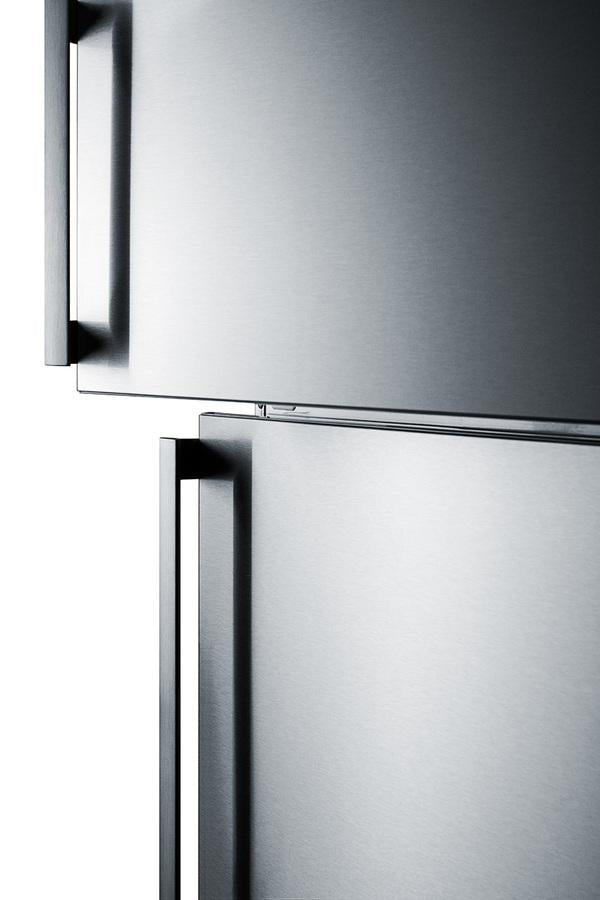

• Designer handles: Brushed steel handles offer a modern look for the refrigerator
• Frost-free operation: No-frost convenience for reduced user maintenance
• Factory installed icemaker: Keep a constant supply of ice cubes on hand inside the freezer
• Large capacity: Generous capacity inside a counter deep footprint

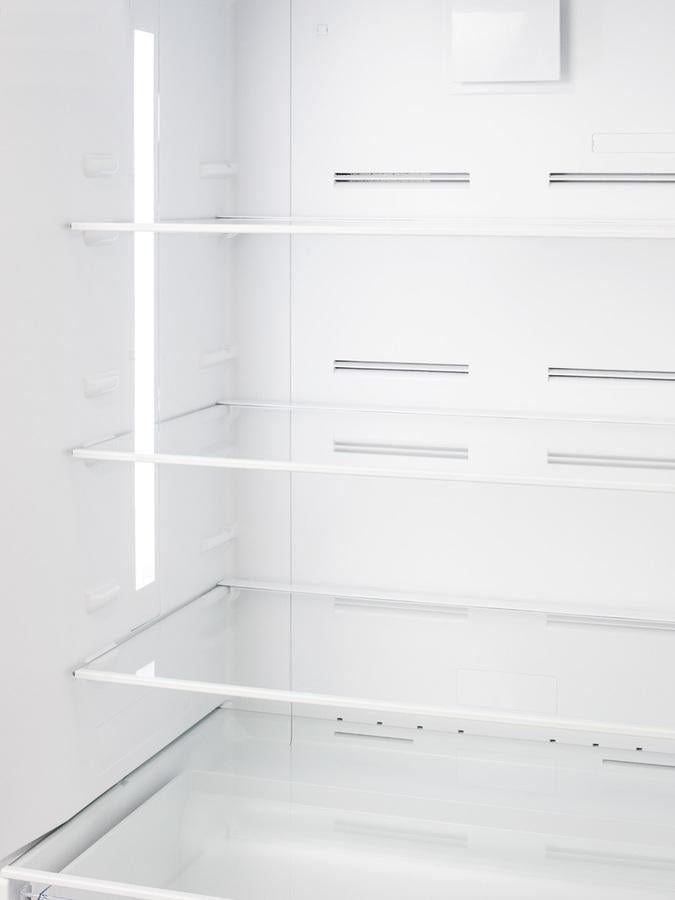

• Adjustable glass shelves: Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
• Crisper drawer: Get the longest life and best taste out of produce by storing it in a convenient slide drawer
• Door storage: Store tall bottles and condiments right on the door for convenient access
• Interior LED lighting: Energy efficient lighting located inside the walls to provide a better view of the interior

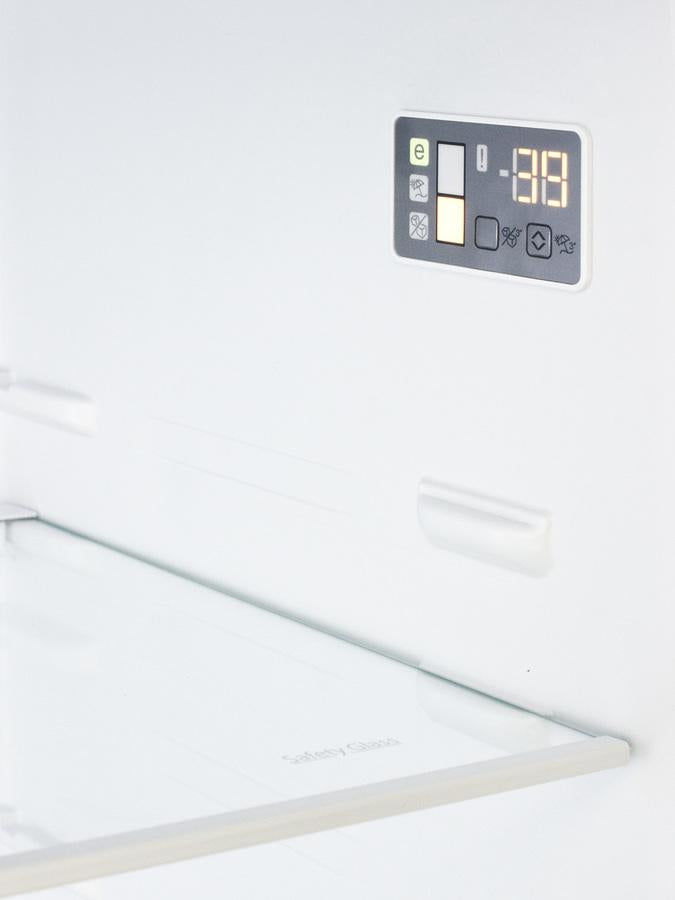

• Digital temperature control: Innovative control panel located inside the refrigerator makes it easy to manage the refrigerator and freezer temperature at the touch of a button
• Open door alarm: Alarm sends an audio and visual signal when the door is left ajar for over one minute
• Full freezer shelf: Removable glass shelf offers spill-proof storage in the freezer compartment
• Sealed back: Space-saving design offers easy cleanability
• Vacation setting: Allows you to disable certain features during periods of inactivity
• Factory-reversible door swing: Unit ships with a right hand door swing. For a left hand door swing, order with option "LHD"
• 100% CFC free: Environmentally friendly design without ozone-damaging chemicals
• CARB Compliant: Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Specifications

Overview

• Height of Cabinet: 67.75" (172 cm)
• Width: 27.63" (70 cm)
• Width with Door Open: 28.63" (73 cm)
• Depth: 25.63" (65 cm)
• Depth with Handle: 27.63" (70 cm)
• Depth with door at 90°: 50.75" (129 cm)
• Capacity: 12.6 cu.ft. (357 L)
• Defrost Type: Frost-Free
• Door: Stainless Steel
• Cabinet: Platinum
• US Electrical Safety: UL
• Canadian Electrical Safety: ULC
• Energy Usage/Year: 400.0kWh/year
• Amps: 2.4
• Voltage/Frequency: 115 V AC/60 Hz
• Weight: 185.0 lbs. (84 kg)
• Shipping Weight: 192.0 lbs. (87 kg)
• Parts & Labor Warranty: 1 Year
• Compressor Warranty: 5 Years
• UPC: 761101049441

Refrigerator-Freezer

• Door Swing: RHD
• Reversible: Factory Reversible
• Adjustable Shelves: Yes
• Crisper Qty: 1
• Crisper Finish: Transparent
• Crisper Cover: Glass
• Interior Light: Yes
• Refrigerator - Interior Height: 41.0" (104 cm)
• Refrigerator - Interior Width: 23.5" (60 cm)
• Refrigerator - Interior Depth: 18.5" (47 cm)
• Refrigerator - Capacity: 9.67 cu.ft
• Refrigerator - Shelf Type: Glass
• Refrigerator - Shelf Qty: 3
• Refrigerator - Full Door Shelves: 3
• Freezer - Interior Height: 16.25" (41 cm)
• Freezer - Interior Width: 22.25" (57 cm)
• Freezer - Interior Depth: 16.38" (42 cm)
• Freezer - Capacity: 2.89 cu.ft
• Freezer - Shelf Type: Glass
• Freezer - Shelf Qty: 1
• Freezer - Full Door Shelves: 1
• Thermostat Type: Digital
• Fan Type: Interior
• Refrigerant Type: R600a
• Refrigerant Amount: 1.94 oz.
• High Side PSI: 224.0
• Low Side PSI: 53.0
• Level Legs: 2
• Compressor Step Height: 9.0" (23 cm)
• Compressor Step Width: 23.5" (60 cm)
• Compressor Step Depth: 5.5" (14 cm)

Available Upgrades

Exterior

• LHD: Left hand door swing

Manufacturer Resources

• Brochure w/ Drawings
• Technical Drawing (.dwg)
• MSDS Information
• Use and Care
• Energy Guide

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
