Summit 24" Wide Break Room Refrigerator-Freezer ADA Compliant - BKRF661BIADA

Summit 24" Wide Break Room Refrigerator-Freezer ADA Compliant - BKRF661BIADA

SUMMIT's selection of break room refrigeration features a variety of units for convenient and reliable storage in hospitals, clinics, and other facilities.

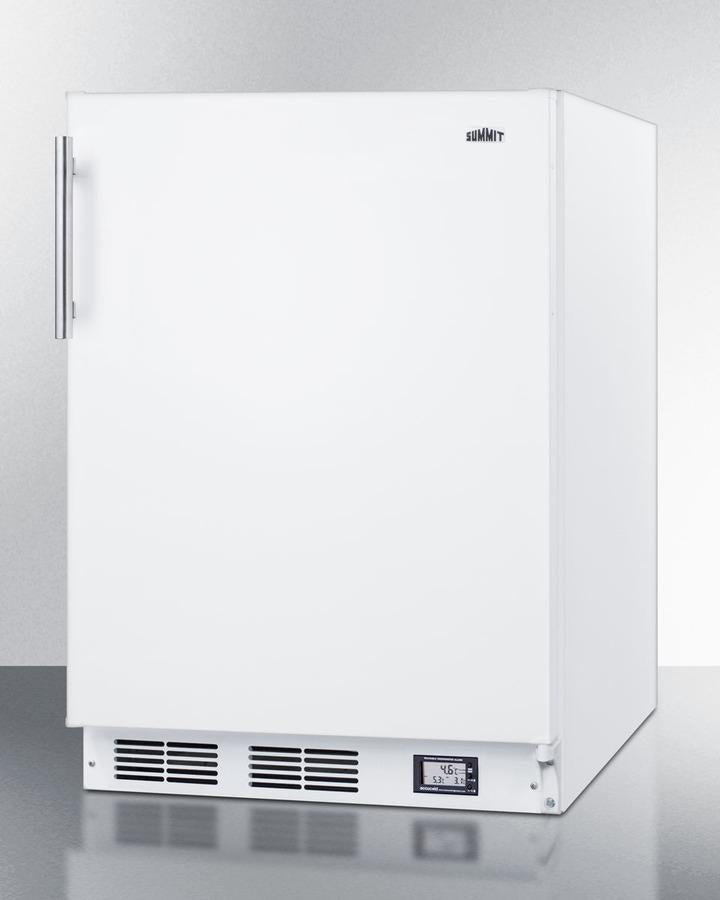

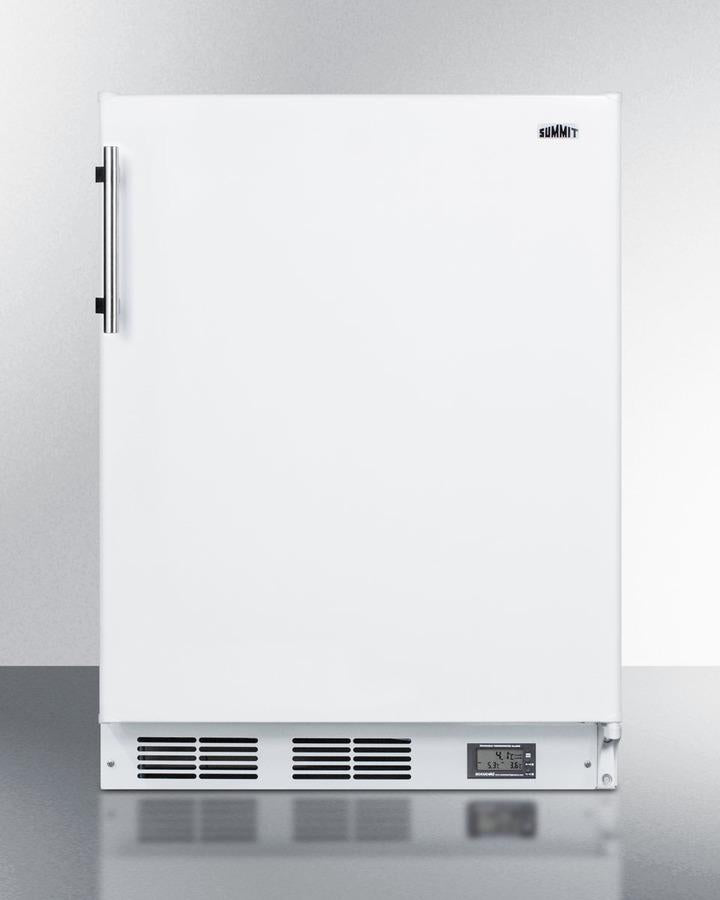

The BKRF661BIADA is a built-in under-counter refrigerator-freezer made in Europe and sized with a 24" footprint. It features a white exterior finish and stainless steel handle, with a user-reversible door swing for added flexibility.

A factory-installed NIST calibrated thermometer is located in the kickplate to provide a continuous display of the current and high/low temperatures of the refrigerator compartment to the nearest tenth of a degree. Temperature can be viewed in Celsius or Fahrenheit for added convenience. The device also includes an audible alarm to warn of major temperature fluctuations.

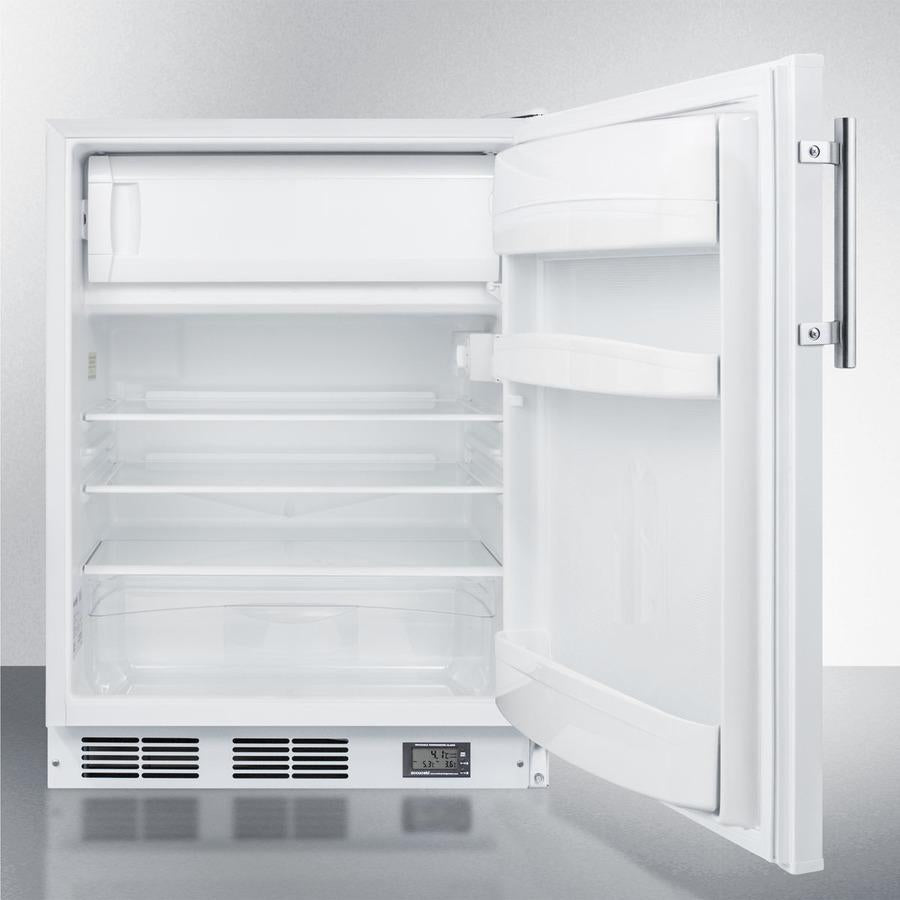

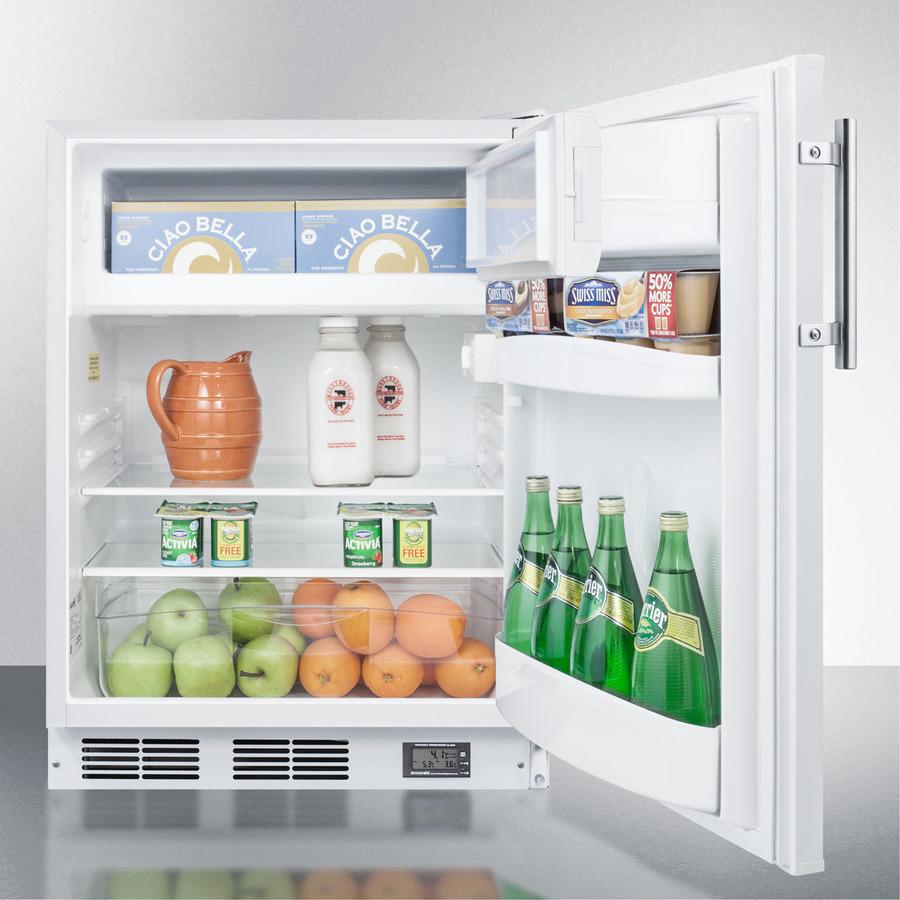

Inside, the BKRF661BIADA features a dual evaporator to allow separated cooling of the fresh and frozen food sections. The refrigerated compartment utilizes low maintenance automatic defrost, while the interior freezer compartment is manual defrost to achieve lower storage temperatures ideal for frozen food. Additional features include adjustable glass shelves, a crisper drawer, door racks for condiments and tall bottles, and an automatic interior light.

The BKRF661BIADA features a front-breathing design for built-in installation under counters, but can also be used freestanding. This unit is sized at 32" high for use under lower ADA compliant counter spaces. For this unit in black, see the BKRF663BBIADA.

Note: Model prefix "BKRF" is a marketing designation. Actual unit will carry Summit model number CT661BIADA.

Features

• ADA Compliant: Sized at 32" high for use under lower ADA compliant counters
• Slim counter height dimensions: Ideal 24" footprint offers full 5.1 cu.ft. storage capacity in a slim fit
• Built-in capable: Make the best use of space by installing your appliance under the counter and flush with other cabinets
• NIST calibrated thermometer: Thermometer provides an external readout of the current and high/low refrigerator temperature to the nearest tenth of a degree
• High/low temperature alarm: Audible alarm sounds if the refrigerator interior temperature rises or falls out of set range
• Cycle defrost: This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment
• Dual evaporator cooling: Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators
• Adjustable glass shelves: Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
• Fruit and vegetable crisper: Get the longest life and best taste out of produce by storing it in a convenient slide drawer
• Door storage: Store tall bottles and condiments right on the door for convenient access
• Interior light: Automatically illuminates when you open the door
• Hidden evaporator: Cold wall design with hidden evaporator creates a seamless, easy to clean interior
• Adjustable thermostat: Dial thermostat located inside for easy temperature management
• Reversible door: User-reversible door swing for added flexibility
• Height adjustable: Adjustable legs allow the unit to be sized from 32 1/2" to 34" high
• Fully finished cabinet: Allows the unit to be used freestanding
• 100% CFC free: Environmentally friendly design without ozone-damaging chemicals
• CARB Compliant: Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Specifications

Overview

• Height of Cabinet: 32.0" (81 cm)
• Height to Hinge Cap: 32.25" (82 cm)
• Width: 23.63" (60 cm)
• Depth: 23.0" (58 cm)
• Depth with Handle: 24.63" (63 cm)
• Depth with door at 90°: 45.38" (115 cm)
• Capacity: 5.1 cu.ft. (144 L)
• Defrost Type: Cycle
• Door: White
• Cabinet: White
• US Electrical Safety: UL
• Canadian Electrical Safety: ULC
• Energy Usage/Year: 365.0kWh/year
• Amps: 1.4
• Voltage/Frequency: 115 V AC/60 Hz
• Weight: 100.0 lbs. (45 kg)
• Shipping Weight: 110.0 lbs. (50 kg)
• Parts & Labor Warranty: 1 Year
• Compressor Warranty: 5 Years
• UPC: 761101061368

Refrigerator-Freezer

• Door Swing: RHD
• Reversible: Yes
• Adjustable Shelves: Yes
• Crisper Qty: 1
• Crisper Finish: Transparent
• Crisper Cover: Glass
• Interior Light: Yes
• Refrigerator - Interior Height: 18.0" (46 cm)
• Refrigerator - Interior Width: 21.0" (53 cm)
• Refrigerator - Interior Depth: 18.0" (46 cm)
• Refrigerator - Capacity: 4.5 cu.ft
• Refrigerator - Shelf Type: Glass
• Refrigerator - Shelf Qty: 2
• Refrigerator - Full Door Shelves: 3
• Freezer - Interior Height: 5.25" (13 cm)
• Freezer - Interior Width: 19.0" (48 cm)
• Freezer - Interior Depth: 11.5" (29 cm)
• Freezer - Capacity: 0.6 cu.ft
• Thermostat Type: Dial
• Refrigerant Type: R600a
• Refrigerant Amount: 0.92 oz.
• High Side PSI: 180.0
• Low Side PSI: 80.0
• Compressor Step Height: 5.5" (14 cm)
• Compressor Step Width: 21.0" (53 cm)
• Compressor Step Depth: 6.0" (15 cm)

Available Upgrades

Lock

• AC Keypad
• L-Installed Lock
• KEYPAD

Exterior

• TT: Installed thermometer
• PH: Probe Hole
• Alarm
• SS Hinges
• SCD: Self-closing door
• ODA: Open door alarm
• LHD: Left hand door swing
• Latch for door
• SSK
• HG: Hospital grade cord
• Agion Door
• DL2B: Factory installed NIST calibrated digital data logger (DDL)

Handle

• TBC Copper Towel Bar Handle
• CP Full-Length Copper Pipe Handle

Manufacturer Resources

• Brochure w/ Drawings
• Technical Drawing (.dwg)
• Calibrated Thermometer
• Use and Care
• Energy Guide

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
