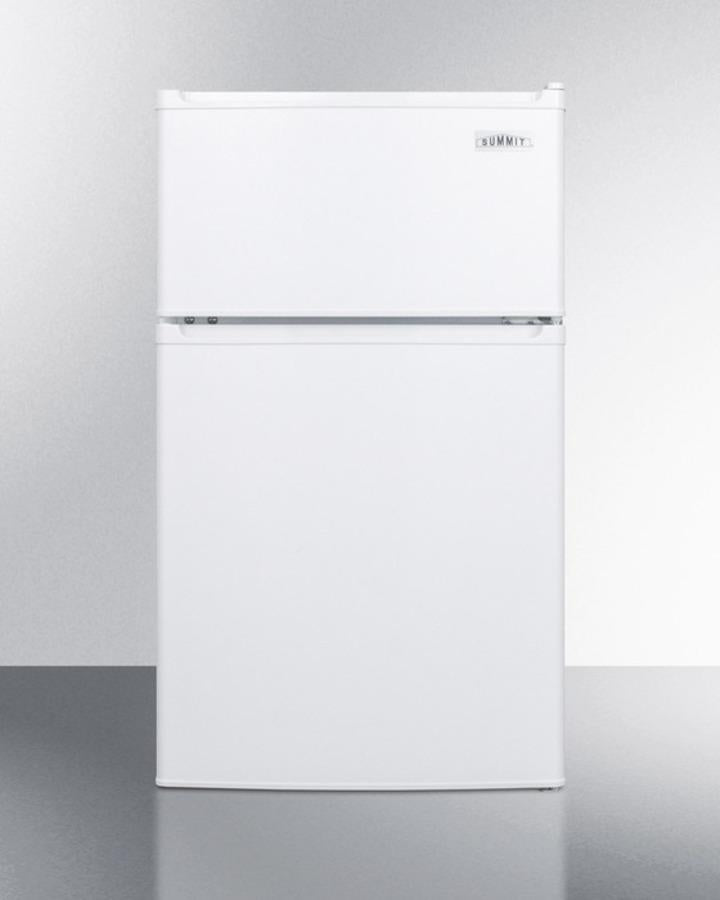

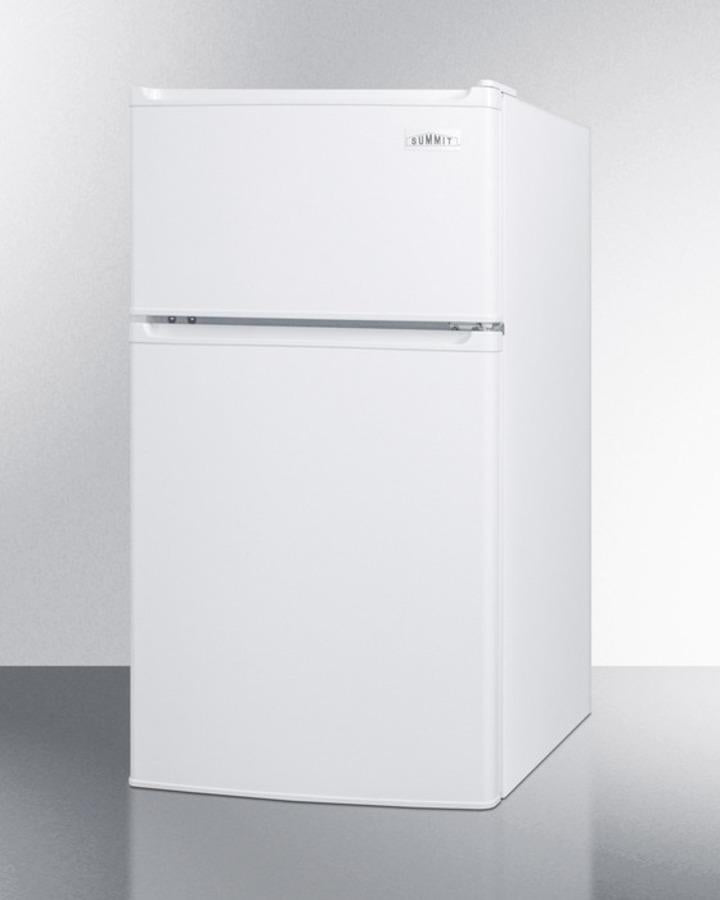

Summit 19" Wide Refrigerator-Freezer ADA Compliant - CP351WADA

Summit 19" Wide Refrigerator-Freezer ADA Compliant - CP351WADA

SUMMIT's ENERGY STAR qualified collection of compact refrigerator-freezers offers uniquely sized units with energy efficient performances.

Made in North America, the CP351WADA is a 32 1/2" high refrigerator-freezer designed for use in ADA compliant settings. It comes in a classic white textured finish with reversible doors for added convenience. This unit is designed for freestanding use.

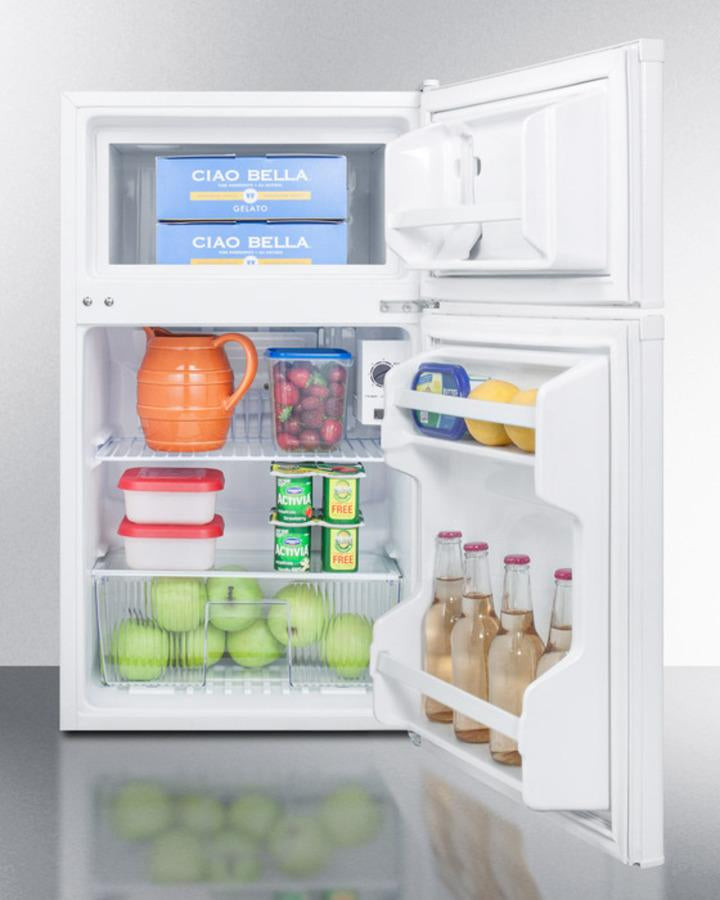

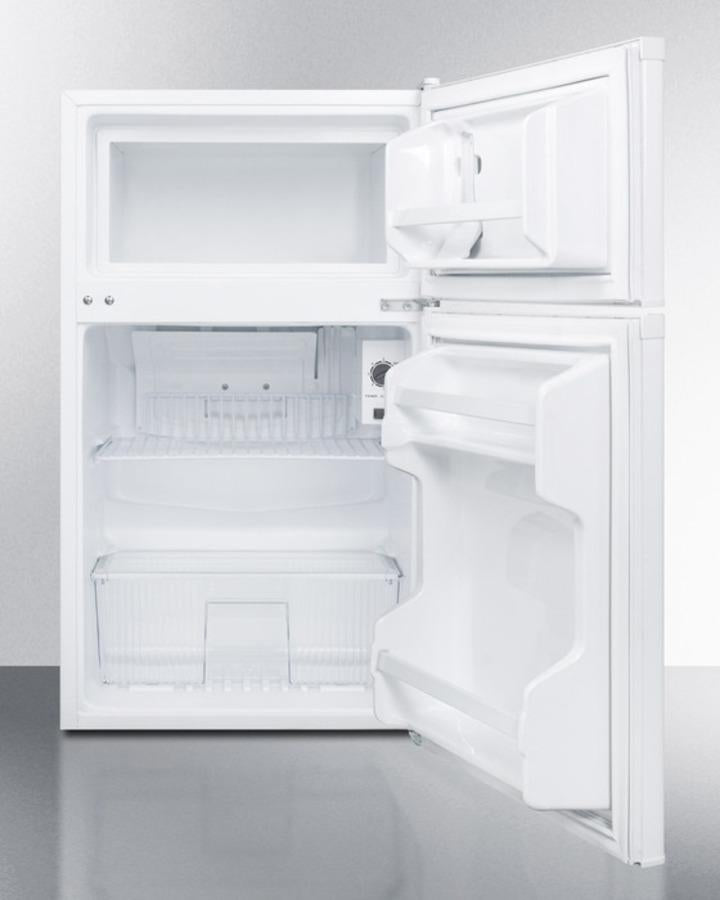

Inside, the CP351WADA utilizes a dual evaporator system to separately cool the auto defrost refrigerator section and manual defrost zero degree freezer compartment for an improved overall performance. The refrigerator includes an adjustable shelf, large crisper drawer, and door storage for tall bottles. The generously sized freezer section includes a large door shelf for easy storage.

The CP351WADA is ENERGY STAR qualified with an efficient performance designed to save on utility costs and energy usage. With its unique size and quality design, this unit is ideal for settings in need of a reliable, energy efficient compact refrigerator-freezer in an ADA compliant height.

Features

• ADA compliant: 32 1/2" height for use in settings complying with ADA guidelines for lower counter height
• ENERGY STAR qualified: Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs
• CEE Tier I qualified: Efficient design meets CEE Tier I specifications, using 20% less energy than DOE standards require for this product category
• Thin-line design: Limited space is no problem for our thin-line models, designed specifically for those hard-to-fit spots
• Cycle defrost: Combines an automatic defrosting refrigerator with a static manual defrosting freezer to minimize maintenance while protecting freezer contents
• Zero degree freezer: Frozen food and ice cream stay safe and freezer burn-free in the low temperature freezer compartment
• Two reversible doors: User-reversible door swing for added flexibility
• Door storage: Store tall bottles and condiments right on the door for convenient access
• Adjustable shelves: Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
• Fruit and vegetable crisper: Get the longest life and best taste out of produce by storing greens in a convenient slide drawer
• Interior light: Automatically illuminates when the refrigerator door is opened
• Adjustable thermostat: Dial thermostat located inside for easy temperature management
• Fully finished cabinet: Allows the unit to be used freestanding
• 100% CFC free: Environmentally friendly design without ozone-damaging chemicals

Specifications

Overview

• Height of Cabinet: 32.25" (82 cm)
• Height to Hinge Cap: 32.5" (83 cm)
• Width: 18.5" (47 cm)
• Depth: 20.25" (51 cm)
• Depth with door at 90°: 37.25" (95 cm)
• Capacity: 2.9 cu.ft. (82 L)
• Defrost Type: Cycle
• Door: White
• Cabinet: White
• US Electrical Safety: UL
• Canadian Electrical Safety: ULC
• Energy Usage/Year: 319.0kWh/year
• Other Energy Info: 120 Volts / 60 Hz.
• Amps: 1.4
• Voltage/Frequency: 115 V AC/60 Hz
• Weight: 130.0 lbs. (59 kg)
• Shipping Weight: 135.0 lbs. (61 kg)
• Parts & Labor Warranty: 1 Year
• Compressor Warranty: 5 Years
• UPC: 761101048406

Refrigerator-Freezer

• Door Swing: RHD
• Reversible: Yes
• Adjustable Shelves: Yes
• Crisper Qty: 1
• Crisper Finish: Transparent
• Crisper Cover: Glass
• Interior Light: Yes
• Refrigerator - Interior Height: 19.0" (48 cm)
• Refrigerator - Interior Width: 16.0" (41 cm)
• Refrigerator - Interior Depth: 14.0" (36 cm)
• Refrigerator - Shelf Type: Wire
• Refrigerator - Shelf Qty: 1
• Refrigerator - Full Door Shelves: 2
• Refrigerator - Temperature Range: 35° to 45°F
• Freezer - Interior Height: 6.0" (15 cm)
• Freezer - Interior Width: 14.0" (36 cm)
• Freezer - Interior Depth: 11.0" (28 cm)
• Thermostat Type: Dial
• Fan Type: Exterior
• Refrigerant Type: R134a
• Refrigerant Amount: 2.6 oz.
• High Side PSI: 235.0
• Low Side PSI: 140.0
• Level Legs: 4
• Compressor Step Height: 8.5" (22 cm)
• Compressor Step Width: 16.0" (41 cm)
• Compressor Step Depth: 3.75" (10 cm)

Available Upgrades

Exterior

• FA Front: Fan assist
• FA Rear: Fan assist
• HG: Hospital grade cord
• Latch for door
• LHD: Left hand door swing
• ODA: Open door alarm
• Alarm
• PH: Probe Hole
• TT: Installed thermometer
• DL2B: Factory installed NIST calibrated digital data logger (DDL)

Interior

• FC: Internal Fan
• FCGP: Internal fan with gel packs

Lock

• LLF2: Combination lock
• LL: Side-mounted locks

Manufacturer Resources

• Brochure w/ Drawings
• Technical Drawing (.dwg)
• Use and Care
• MSDS Information
• Energy Guide

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
