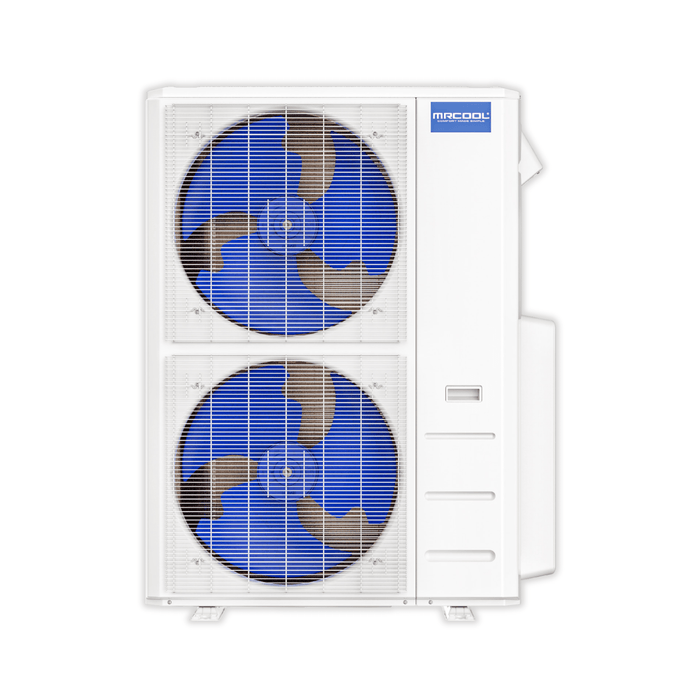

MRCOOL Olympus 4th Gen 48,000 BTU 6-zone mini split condenser, 230V

MRCOOL Olympus 4th Gen 48,000 BTU 6-Zone Mini Split Condenser, 24 SEER2, 4 Ton - 230V/60Hz

MRCOOL  | Authorized Dealer  |  SKU: MULTI6-48HP230C-O
$4,499.95

Save $900.95 Save $0.00
$4,499.95 - $4,499.95
$4,499.95
$3,599.00
$3,599.00 - $3,599.00
$3,599.00
+ FREE SHIPPING
Availability:
In stock

Get A Quote

• Free Shipping - on most MRCOOL products
• Manufacturer Warranty Included - on all MRCOOL
• 0% Financing Available - MRCOOL + 0% APR, Applicable at Checkout
• In Stock - most orders leave the warehouse in 3-5 business days
• Questions? - Call ‪(866) 412-1837

Get My Best Price
Authorized
Dealer
Free
Shipping
Price Match
Guarantee
Full Mfr
Warranty
Want today's MRCOOL prices but not ready for delivery?

No problem! All orders receive special attention and in most cases we can hold items and begin processing at a later date! Please contact us for more details!

The MRCOOL Olympus 4th Gen MULTI6-48HP230C-O is a 48,000 BTU multi-zone heat pump condenser that conditions up to six indoor zones from a single outdoor unit. DC inverter technology holds each zone at its own setpoint while sipping power — up to 24 SEER2 — and keeps heating down to 5°F outdoor temperature.

Mix and match wall-mount, ceiling cassette, and concealed duct indoor units to suit the space. Control everything from the MRCOOL SmartHVAC app, the included remotes, or by voice through Amazon Alexa and Google Assistant.

Highlights

  • 47,000 BTU cooling / 48,000 BTU heating — 4 ton, covers up to 2,000 sq. ft.
  • Supports up to 6 indoor zones from one condenser
  • Up to 24 SEER2, 12.5 EER2, 10.3 HSPF2 (Region 4)
  • Rotary DC inverter compressor — 63 dB(A) operation
  • Heats reliably down to 5°F outdoor temperature
  • Next-gen R-454B refrigerant (low-GWP)
  • Wi-Fi ready — MRCOOL SmartHVAC app, Alexa and Google Assistant
  • Works with wall-mount, cassette, and concealed duct indoor units

Specifications

Model MULTI6-48HP230C-O
Cooling Capacity 47,000 BTU/h
Heating Capacity 48,000 BTU/h
Tonnage 4 Ton
Zones Supported Up to 6
SEER2 Up to 24
EER2 Up to 12.5
HSPF2 (Region 4 / 5) 10.3 / 8.0
Power Supply 208/230V, 1 Phase, 60 Hz
Min. Circuit Ampacity 34 A
Max. Fuse / Breaker 40 A
Refrigerant R-454B, 148.15 oz factory charge
Max. Total Lineset Length 262.4 ft
Line Sizes Liquid 6 x 1/4 in. · Suction 4 x 3/8 in. + 2 x 1/2 in. (flare fittings)
Compressor Rotary DC inverter
Metering Device EXV
Fan Motor Speeds 800 / 700 / 650 RPM
Sound Level 63 dB(A)
Min. Operating Temp (Heat) 5°F
Net Dimensions (W x H x D) 37.48" x 52.48" x 16.34"
Net Weight 222 lbs
Shipping Dimensions 43.11" x 58.27" x 19.49"
Shipping Weight 254.19 lbs
Color White
Certifications UL, CSA, ETL, ENERGY STAR, AHRI Certified

Compatible Indoor Units

Pair with MRCOOL Olympus 4th Gen indoor units: O-09-HP-WMAH-230C-O, DUCT-09HP-230B-O, CASSETTE09HP-230C-O, O-12-HP-WMAH-230C-O, DUCT-12HP-230B-O, CASSETTE12HP-230C-O, O-18-HP-WMAH-230C-O, DUCT-18-HP-230B-O, CASSETTE18HP-230C-O, O-24-HP-WMAH-230C-O, DUCT-24HP-230B-O, and CASSETTE24HP-230C-O.

Warranty

  • 7-year compressor warranty
  • 5-year parts warranty
  • 5-year remote warranty

Warranty requires professional installation and product registration.

Shipping

Ships free curbside via freight carrier. Returns accepted within 30 days of delivery; item must be unused, uninstalled, and in original packaging.

Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
