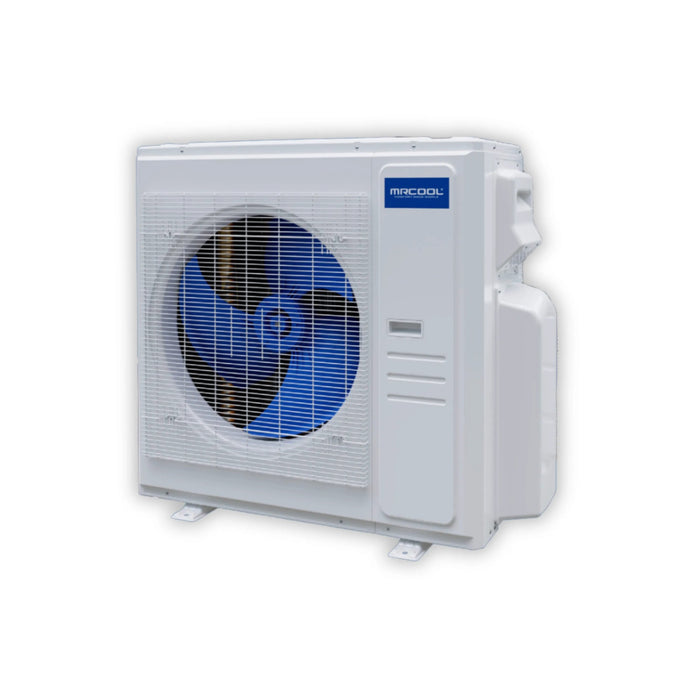

MRCOOL Olympus 4th Gen 36,000 BTU 5-zone mini split condenser, 230V

MRCOOL Olympus 4th Gen 36,000 BTU 5-Zone Mini Split Condenser, 24 SEER2, 3 Ton - 230V/60Hz

MRCOOL  | Authorized Dealer  |  SKU: MULTI5-36HP230C-O
$2,999.95

Save $498.95 Save $0.00
$2,999.95 - $2,999.95
$2,999.95
$2,501.00
$2,501.00 - $2,501.00
$2,501.00
+ FREE SHIPPING

0% APR financing available with Affirm — up to 12 months on purchases under $2,000, up to 24 months over $2,000. Subject to credit approval. See financing details

Availability:
In stock
In stock - Ready to Ship
On backorder - reserve yours today
Ships direct from MRCOOL
Out of Stock
Free Curbside Delivery
Estimated Arrival: Oct 6 to Oct 13
Ships as soon as MRCOOL restocks. Call (866) 412-1837 for today's ETA before you order.
A specialist confirms your lead time before it ships. Questions? (866) 412-1837
Authorized
Dealer
Free Shipping
on most orders
Price Match
Guarantee
Full Mfr
Warranty
4.8/5 from 2,462 InnovDepot customer reviews
Secure checkout American Express Apple Pay BancontactDiners ClubDiscoverGoogle Pay iDEAL Wero
Questions before you order? Talk to a real specialist: (866) 412-1837

MRCOOL sets a minimum advertised price, so this is the same price every authorized dealer shows. We compete on service instead: freight handled properly, honest lead times, and a specialist who picks up the phone.

Get Expert Pricing Call a Specialist — (866) 412-1837

Talk to a real specialist about pricing, freight and lead time. 7 days a week, 9AM–9PM EST. Call or text (866) 412-1837.

Shipping & delivery on this item

  • Leaves the warehouse in 3–5 business days. You get a tracking number by email within 24 hours of dispatch.
  • Then 5–10 business days in transit. Times vary by distance and weight.
  • Ships from a US warehouse. Carriers are UPS, USPS or FedEx, or a freight carrier on large items.
  • This is a freight item. The carrier calls you to book a delivery appointment before it arrives. Delivery is curbside — plan to have help or equipment to move it, and note that installation is not included.
  • Inspect it before you sign. If anything is damaged in transit, email support@innovdepot.com the same day with photos (we usually need 3–5) and we replace it.
  • We cannot deliver to a PO Box.

Need it by a certain date, or not ready for delivery yet? Call (866) 412-1837 — in most cases we can hold the item and start processing later. Full shipping policy

Want today's MRCOOL prices but not ready for delivery?

No problem! All orders receive special attention and in most cases we can hold items and begin processing at a later date! Please contact us for more details!

The MRCOOL Olympus 4th Gen MULTI5-36HP230C-O is a 36,000 BTU multi-zone heat pump condenser that conditions up to five indoor zones from a single outdoor unit. DC inverter technology holds each zone at its own setpoint while sipping power — up to 24 SEER2 — and keeps heating down to 5°F outdoor temperature.

Mix and match wall-mount, ceiling cassette, and concealed duct indoor units to suit the space. Control everything from the MRCOOL SmartHVAC app, the included remotes, or by voice through Amazon Alexa and Google Assistant.

Highlights

  • 36,000 BTU cooling / 37,000 BTU heating — 3 ton, covers up to 1,500 sq. ft.
  • Supports up to 5 indoor zones from one condenser
  • Up to 24 SEER2, 12 EER2, 9.5 HSPF2 (Region 4)
  • Rotary DC inverter compressor — 64.5 dB(A) operation
  • Heats reliably down to 5°F outdoor temperature
  • Next-gen R-454B refrigerant (low-GWP)
  • Wi-Fi ready — MRCOOL SmartHVAC app, Alexa and Google Assistant
  • Works with wall-mount, cassette, and concealed duct indoor units

Specifications

Model MULTI5-36HP230C-O
Cooling Capacity 36,000 BTU/h
Heating Capacity 37,000 BTU/h
Tonnage 3 Ton
Zones Supported Up to 5
SEER2 Up to 24
EER2 Up to 12
HSPF2 (Region 4 / 5) 9.5 / 7.0
Power Supply 208/230V, 1 Phase, 60 Hz
Min. Circuit Ampacity 30.5 A
Max. Fuse / Breaker 35 A
Refrigerant R-454B, 120.63 oz factory charge
Max. Total Lineset Length 262.4 ft
Line Sizes Liquid 5/16 in. · Suction 3/8 in. + 1/2 in. (flare fittings)
Compressor Rotary DC inverter
Metering Device EXV
Fan Motor Speeds 900 / 750 / 600 RPM
Sound Level 64.5 dB(A)
Min. Operating Temp (Heat) 5°F
Net Dimensions (W x H x D) 37.24" x 31.89" x 16.14"
Net Weight 168.87 lbs
Shipping Dimensions 42.91" x 34.84" x 19.68"
Shipping Weight 180.12 lbs
Certifications UL, CSA, ETL, ENERGY STAR, AHRI Certified

Compatible Indoor Units

Pair with MRCOOL Olympus 4th Gen indoor units: O-09-HP-WMAH-230C-O, DUCT-09HP-230B-O, CASSETTE09HP-230C-O, O-12-HP-WMAH-230C-O, DUCT-12HP-230B-O, CASSETTE12HP-230C-O, O-18-HP-WMAH-230C-O, DUCT-18-HP-230B-O, CASSETTE18HP-230C-O, O-24-HP-WMAH-230C-O, DUCT-24HP-230B-O, and CASSETTE24HP-230C-O.

Warranty

  • 7-year compressor warranty
  • 5-year parts warranty
  • 5-year remote warranty

Warranty requires professional installation and product registration.
