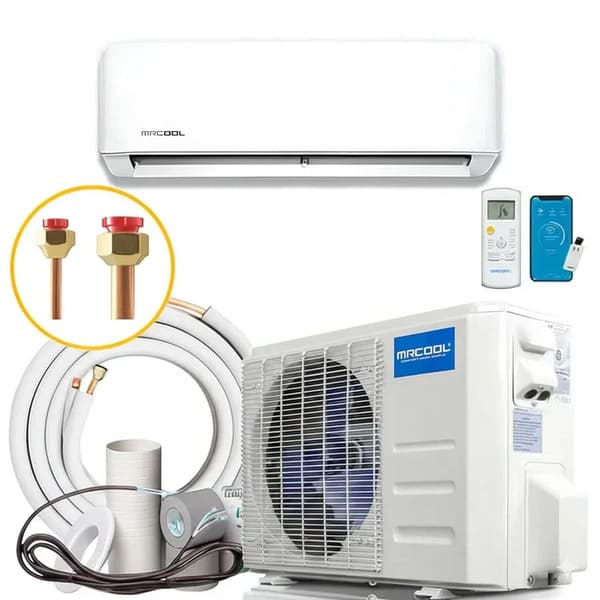

MRCOOL 36K BTU 5th Gen AC & Heat Pump Mini Split (A-36)

MRCOOL 5th Gen Advantage 36,000 BTU 230V Ductless Mini Split Heat Pump – R-454B

Professional Installation Required

The MRCOOL 5th Gen Advantage 36K Ductless Mini Split Heat Pump is the perfect solution for larger spaces up to 1,550 sq ft. Designed for high efficiency and environmental responsibility, it features the new R-454B refrigerant, offering improved performance with lower Global Warming Potential (GWP) than previous generations.

This powerful 36,000 BTU unit is ideal for open living areas, garages, bonus rooms, or small commercial offices. Its ductless design simplifies installation and the sleek air handler ensures whisper-quiet operation. With built-in Wi-Fi, you can control your comfort from anywhere using the SmartHVAC app, compatible with Amazon Alexa and Google Assistant.

✅ Key Features

• 36,000 BTU Capacity – Perfect for large rooms up to 1,550 sq ft

• 230V Power Supply – Ensures strong and reliable performance

• R-454B Refrigerant – Eco-friendly with low Global Warming Potential

• Wi-Fi Enabled – Remote control via SmartHVAC app on iOS/Android

• Quiet Operation – Low noise indoor and outdoor components

• Professional-Grade Quality – Affordable comfort for large areas

• Warranty Coverage –

  • 2-Year Parts Warranty

  • 1-Year Compressor Warranty

  • 1-Year Remote Control Warranty

  • Limited Lifetime Warranty available with MRCOOL® Care registration

⚠️ Installation Note

This is not a DIY unit. Must be installed by a licensed HVAC professional to ensure proper operation and maintain full warranty coverage.

📦 Condenser Specifications – A-36-HP-C-230D-O

• Brand: MRCOOL

• Series: Advantage 5th Gen

• Model: A-36-HP-C-230D-O

• BTU Rating: 36,000 (cooling & heating)

• Tonnage: 3 Ton

• SEER2: 18

• EER2: 9

• HSPF2 (4): 8.5

• HSPF2 (5): 6.8

• Voltage: 208-230V

• Phase: 1

• Cycle: 60 Hz

• Max Fuse Breaker: 35A

• Min Circuit Ampacity: 33A

• Refrigerant Type: R-454B

• Refrigerant Volume: 112.88 oz

• Decibel Rating: 60.5 dBA

• Inverter Type: DC

• Line Set Length: Max 213.2 ft

• Liquid Line Size: 3/8"

• Suction Line Size: 5/8"

• Compressor Type: Rotary

• Certifications: UL, CSA, ETL, AHRI

• Net Dimensions (in): 37.24 W x 31.89 H x 16.14 D

• Gross Dimensions (in): 42.91 W x 34.84 H x 19.68 D

• Weight: 150.35 lbs (net), 160.27 lbs (gross)

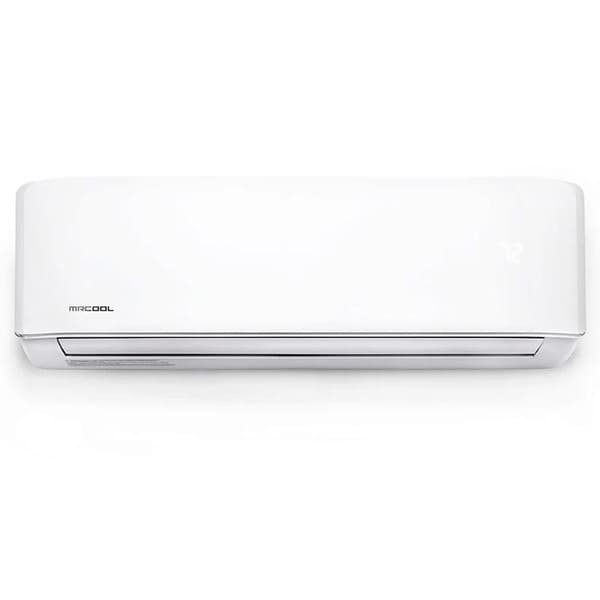

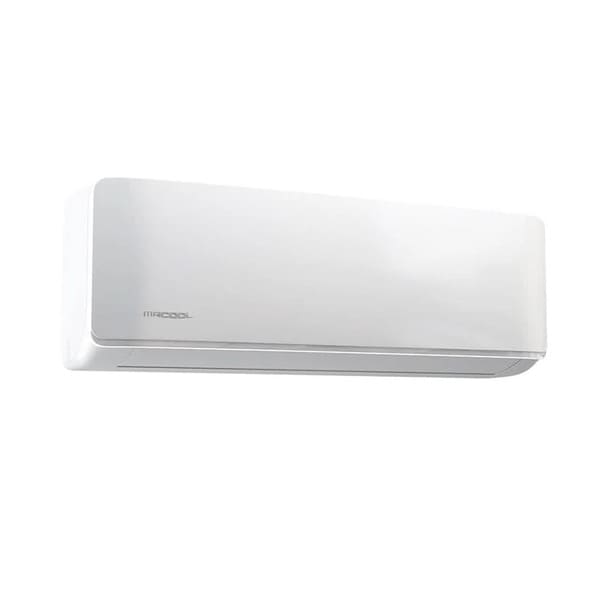

📦 Air Handler Specifications – A-36-HP-WMAH-230D-O

• Brand: MRCOOL

• Series: Advantage 5th Gen

• Model: A-36-HP-WMAH-230D-O

• BTU Rating: 36,000

• Tonnage: 3 Ton

• Voltage: 208-230V

• Mount Type: Wall Mounted

• CFM: 882.9 / 732.8 / 518.0 / 400.2

• Speeds: 5

• Decibel Rating: 28 (low) to 56.5 (high)

• Filter Type: Reusable

• Line Set Compatibility: Max 213.2 ft

• Liquid Line Size: 3/8"

• Suction Line Size: 5/8"

• Remote Control: Included

• Wi-Fi Ready: Yes (iOS and Android compatible)

• Certifications: UL, CSA, ETL, AHRI

• Net Dimensions (in): 49.57 W x 14.25 H x 11.1 D

• Gross Dimensions (in): 52.76 W x 15.16 H x 17.72 D

• Weight: 40.34 lbs (net), 54.01 lbs (gross)
