Home > MRCOOL > MRCOOL 24K BTU 5th Gen Ductless Mini Split 230V A-24
MRCOOL 24K BTU Advantage 5th Gen Mini Split 230V Ductless Heat Pump System – R-454B, Smart Control, Wall Mounted Air Handler

MRCOOL 24K BTU 5th Gen Ductless Mini Split 230V A-24

MRCOOL  | Authorized Dealer  |  SKU: A-24-HP-230D-O

$1,462.00 - $1,462.00
$1,462.00
$1,462.00 - $1,462.00
$1,462.00
+ FREE SHIPPING

0% APR financing available with Affirm — up to 12 months on purchases under $2,000, up to 24 months over $2,000. Subject to credit approval. See financing details

Availability:
In stock
Get Expert Pricing Call a Specialist — (866) 412-1837

Talk to a real specialist about pricing, freight and lead time. Mon–Fri, 9AM–6PM EST. We reply to quote requests within 24 hours on business days.

Authorized
Dealer
Free
Shipping
Price Match
Guarantee
Full Mfr
Warranty

MRCOOL sets a minimum advertised price, so this is the same price every authorized dealer shows. We compete on service instead: freight handled properly, honest lead times, and a specialist who picks up the phone.

Shipping & delivery on this item

  • Leaves the warehouse in 3–5 business days. You get a tracking number by email within 24 hours of dispatch.
  • Then 5–10 business days in transit. Times vary by distance and weight.
  • Ships from a US warehouse. Carriers are UPS, USPS or FedEx, or a freight carrier on large items.
  • This is a freight item. The carrier calls you to book a delivery appointment before it arrives. Delivery is curbside — plan to have help or equipment to move it, and note that installation is not included.
  • Inspect it before you sign. If anything is damaged in transit, email support@innovdepot.com the same day with photos (we usually need 3–5) and we replace it.
  • We cannot deliver to a PO Box.

Need it by a certain date, or not ready for delivery yet? Call (866) 412-1837 — in most cases we can hold the item and start processing later. Full shipping policy

Want today's MRCOOL prices but not ready for delivery?

No problem! All orders receive special attention and in most cases we can hold items and begin processing at a later date! Please contact us for more details!

MRCOOL 5th Gen Advantage 24,000 BTU 230V Ductless Mini Split Heat Pump – R-454B

Professional Installation Required

The MRCOOL 5th Generation Advantage 24K BTU Ductless Mini Split Heat Pump is a high-performance, energy-efficient system built for comfort in large rooms up to 1,200 sq ft. Operating on 230V and using next-gen R-454B refrigerant, it meets the latest environmental standards with a lower Global Warming Potential (GWP).

With its smart Wi-Fi capabilities, whisper-quiet operation, and sleek wall-mounted design, this system is ideal for homeowners seeking a powerful yet eco-conscious HVAC solution for living rooms, garages, basements, and open-plan spaces.

✅ Key Features:

  • 24,000 BTU cooling/heating capacity for spaces up to 1,200 sq ft

  • High efficiency with 18.7 SEER2 & 9.3 HSPF2-4

  • Uses eco-friendly R-454B refrigerant

  • Built-in Wi-Fi for smartphone control via SmartHVAC app

  • Quiet operation for maximum comfort

  • Professional installation required (not a DIY system)

  • Warranty includes: 2-Year Parts, 1-Year Compressor, 1-Year Remote

  • Optional extended lifetime warranty with MRCOOL® Care Program

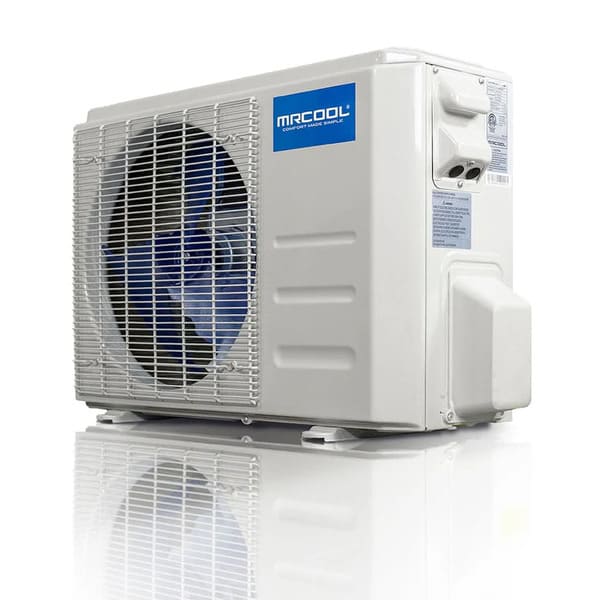

📦 Condenser Specifications (Model A-24-HP-C-230D-O):

  • Type: Mini-Split Heat Pump Condenser

  • Tonnage: 2 Ton

  • Cooling Capacity: 24,000 BTU

  • Heating Capacity: 24,000 BTU

  • Voltage: 208-230V, 1 Phase, 60 Hz

  • SEER2: 18.7

  • EER2: 10

  • HSPF2-4: 9.3

  • HSPF2-5: 7.3

  • Refrigerant: R-454B

  • Refrigerant Volume: 53.62 oz

  • Max Line Set Length: 164 ft

  • Line Sizes: 3/8" liquid, 5/8" suction

  • Compressor Type: DC Inverter Rotary

  • Noise Level: 59.5 dBA

  • Listings: UL, CSA, ETL, AHRI Certified

  • Net Dimensions (WxHxD): 35.04" x 26.5" x 13.46"

  • Gross Dimensions: 39.17" x 29.13" x 15.67"

  • Net Weight: 94.58 lbs | Gross Weight: 102.29 lbs

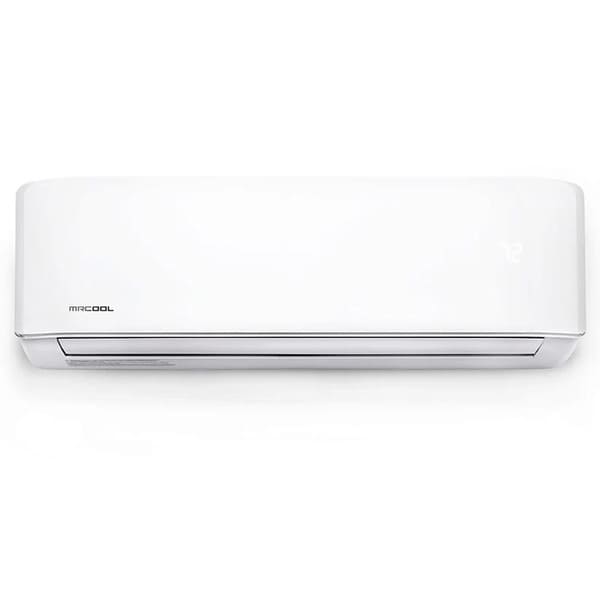

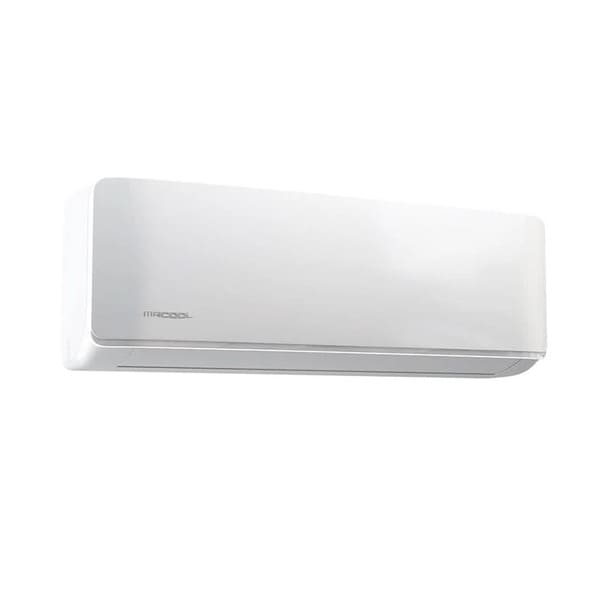

📦 Air Handler Specifications (Model A-24-HP-WMAH-230D-O):

  • Mount Type: Wall-Mounted

  • Tonnage: 2 Ton

  • Voltage: 208-230V, 1 Phase, 60 Hz

  • CFM: 729.9 / 529.7 / 400.2 / 329.6

  • Speeds: 5

  • Noise Levels: 21.5 dBA (Low), 54 dBA (High)

  • Max Line Set Length: 164 ft

  • Line Sizes: 3/8" liquid, 5/8" suction

  • Filter Type: Reusable

  • Wi-Fi Control: Compatible with iOS and Android

  • Remote Control Included

  • Listings: UL, CSA, ETL, AHRI Certified

  • Net Dimensions (WxHxD): 42.52" x 13.19" x 8.9"

  • Gross Dimensions: 45.47" x 12.6" x 16.34"

  • Net Weight: 30.64 lbs | Gross Weight: 39.46 lbs

⚠️ Please Note:

  • This is not a DIY unit. Installation must be done by a licensed HVAC professional to activate the warranty and ensure system safety and efficiency.

  • Not compatible with R-410A systems.

Specifications

Model / SKUA-24-HP-230D-O
BrandMRCOOL
