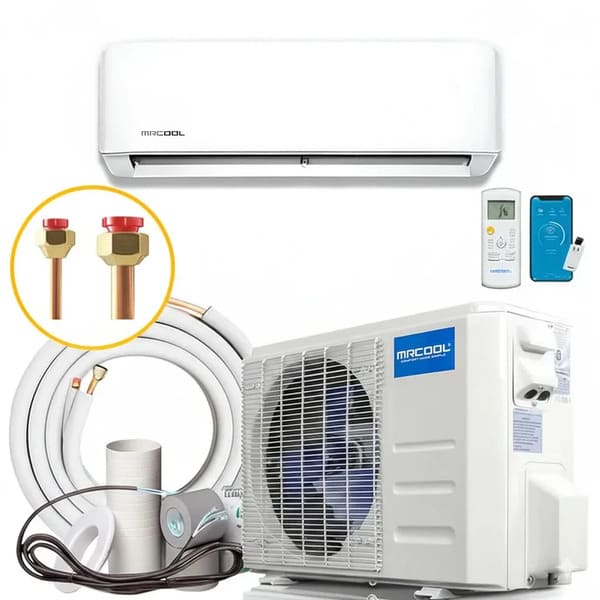

MRCOOL 18K 5th Gen Mini Split AC Heat Pump 230V (A-18)

MRCOOL 5th Gen Advantage 18,000 BTU 230V Ductless Mini Split Heat Pump – R-454B

Professional Installation Required

The MRCOOL 5th Gen Advantage 18,000 BTU Mini Split Heat Pump delivers reliable year-round comfort for areas up to 800 sq. ft. Engineered for efficiency, it features R-454B refrigerant, a SEER2 rating of 19.2, and advanced smart controls via built-in Wi-Fi. This system is perfect for master bedrooms, basements, garages, or open living spaces.

✅ Key Features:

• Cooling/Heating Capacity: 18,000 BTU (cooling), 18,800 BTU (heating)

• Coverage Area: Up to 800 sq. ft.

• SEER2 / HSPF2 (4/5): 19.2 / 9.6 / 7.5

• Refrigerant Type: R-454B (low-GWP, eco-friendly)

• Smart HVAC Control: Wi-Fi enabled, compatible with iOS, Android, Alexa, and Google Assistant

• Operation Noise: As low as 19 dB (air handler)

• Installation: Licensed HVAC professional required

• Warranty: 2-Year Compressor, 1-Year Parts, 1-Year Remote Control

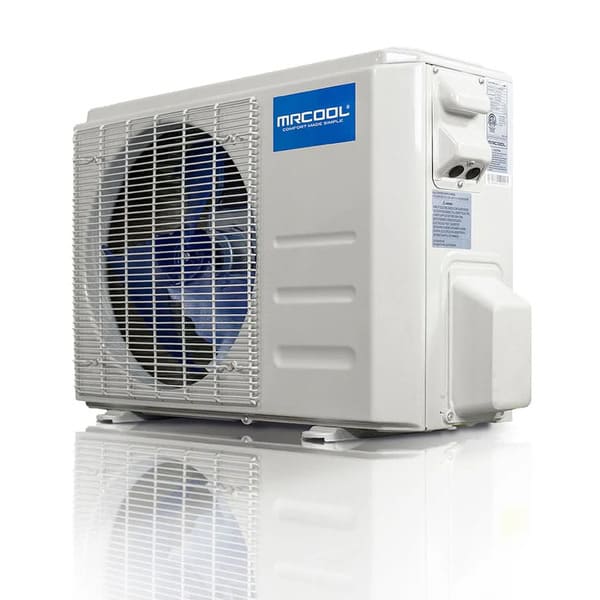

📦 Condenser Specifications – A-18-HP-C-230D-O

• System Type: Mini-Split Heat Pump

• Voltage / Phase: 208–230V / 1-Phase / 60Hz

• Tonnage: 1.5 Ton

• Cooling Capacity: 18,000 BTU

• Heating Capacity: 18,800 BTU

• SEER2 / EER2: 19.2 / 10.8

• HSPF2-4 / HSPF2-5: 9.6 / 7.5

• Inverter Type: DC Inverter

• Compressor Type: Rotary

• Refrigerant: R-454B

• Refrigerant Volume: 40.57 oz

• Max Line Set Length: 98.4 ft

• Line Sizes: 1/4" Liquid Line & 1/2" Suction Line

• Noise Level: 56 dBA

• Dimensions (W x H x D): 31.69" x 21.81" x 12.99"

• Weight: 72.31 lbs (Net) / 78.48 lbs (Gross)

• Certifications: UL, CSA, ETL, AHRI

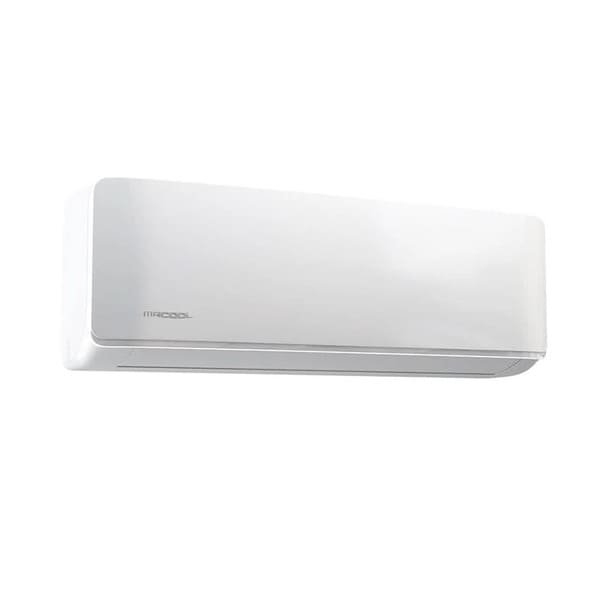

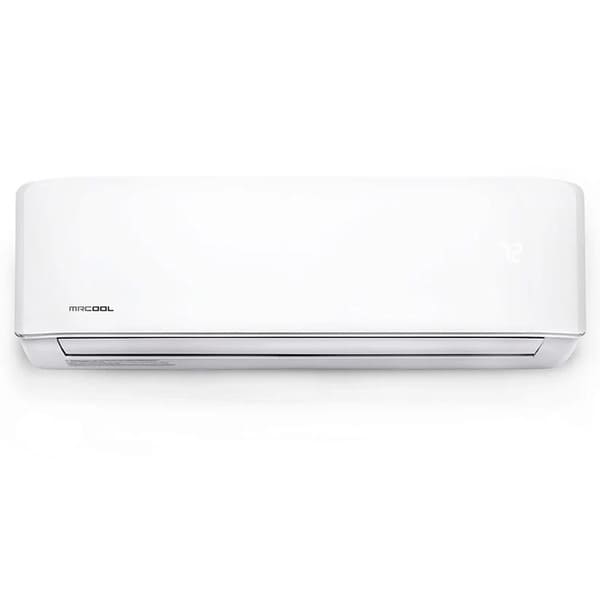

📦 Air Handler Specifications – A-18-HP-WMAH-230D-O

• Mounting Type: Wall Mounted

• Voltage / Phase: 208–230V / 1-Phase / 60Hz

• Number of Fan Speeds: 5

• Airflow (CFM): 429.7 / 388.5 / 259.0 / 217.8

• Noise Level (Low/High): 19 dBA / 50.5 dBA

• Filter Type: Reusable

• Line Sizes: 1/4" Liquid Line & 1/2" Suction Line

• Remote Control: Included

• Wi-Fi Ready: Yes (iOS and Android)

• Dimensions (W x H x D): 37.99" x 12.56" x 8.46"

• Weight: 24.47 lbs (Net) / 32.63 lbs (Gross)

• Certifications: UL, CSA, ETL, AHRI

⚠️ Important Notes:

• This is not a DIY system – installation by a licensed HVAC professional is required.

• Not compatible with systems using R-410A refrigerant.
