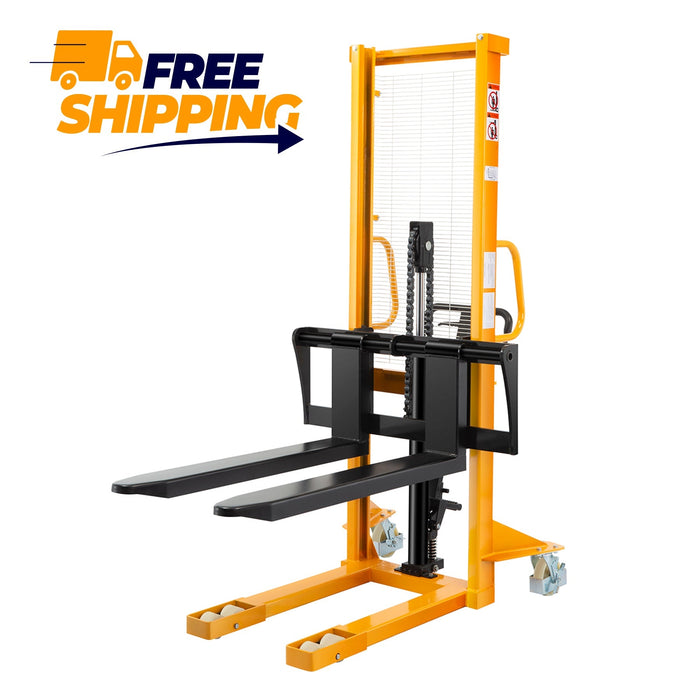

ApolloLift Manual Hydraulic Stacker Pallet Stacker Adjustable Forks 2200 lbs - A-3003

ApolloLift Manual Hydraulic Stacker Pallet Stacker Adjustable Forks 2200 lbs - A-3003

ApolloLift  | Authorized Dealer  |  SKU: A-3003
$2,100.00

Save $350.00 Save $0.00
$2,100.00 - $2,100.00
$2,100.00
$1,750.00
$1,750.00 - $1,750.00
$1,750.00
+ FREE SHIPPING

Get A Quote

✓ Free Shipping - on most ApolloLift products
✓ Manufacturer Warranty Included - on all ApolloLift
✓ 0% Financing Available - ApolloLift + 0% APR, Applicable at Checkout
✓ In Stock - most orders leave the warehouse in 3-5 business days
✓ Questions? - Call ‪(866) 412-1837

Want today's ApolloLift prices but not ready for delivery?

No problem! All orders receive special attention and in most cases we can hold items and begin processing at a later date! Please contact us for more details!

  • Compact design for pallet, perfect stacking and pallet positioning as well as stocking and refilling shelves.
  • High quality steel mast and strong steel construction ensures rigidity and durability.
  • High efficient pumps makes the control easier to operate.
  • Metal grid protects user from lift chains.
  • With safety wheel guard and brake system to ensure safety during operation.
  • Manually raise and lower loads with foot pump and handle operation.
*MANUAL STACKERS
MODEL NO. CAPACITY  LIFTING HEIGHT  WHEEL DIAMETER WEIGHT  PRICE EACH
A-3003 2200 lbs 63'' 5.8'' 550 lbs $1900
A-3002 1100 lbs  63'' 5.8'' 355 lbs $1600
*SHIPS ASSEMBLED VIA MOTOR FREIGHT


DIMENSIONS

  • Overall width: 37.6''
  • Overall length: 66.1''
  • Load center: 19.7''
  • Recommended Aisle Width: 84.5"
  • Turning radius: 48.6''
  • Inner legs width: 12.7''
  • Outer legs width: 21.8''

MAST

  • Lifting height: 63''
  • Mast lowered height: 82.3''
  • Mast extended height: 82.3''

FORKS

  • Adjustable width: 11.6-36.6''
  • Thickness: 2.4''
  • Width: 5.6''
  • Length: 42''
  • Fork lowered height: 3.5''

FEATURES

  • Foot Operated Pump: Lift Height nearly 1'' per stroke.

Click Here :Assemble the welded fork.
