Katool KT-B700 Wheel Balancer

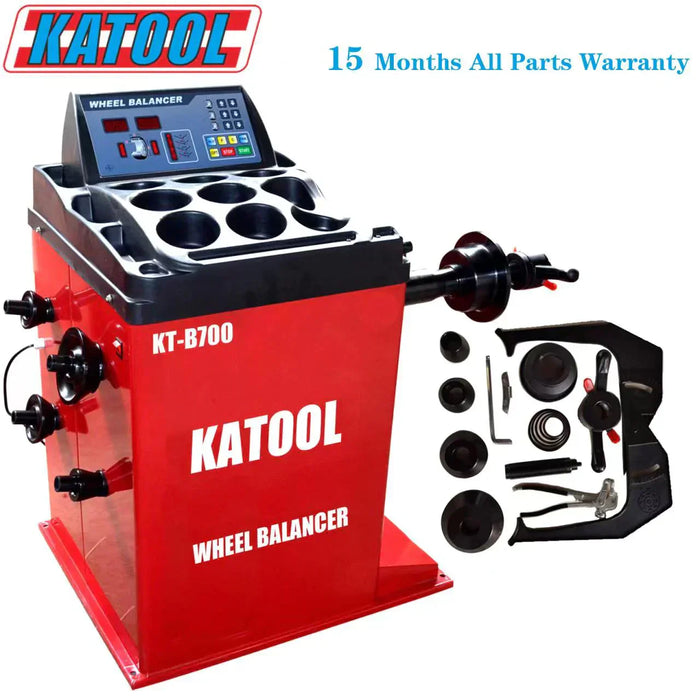

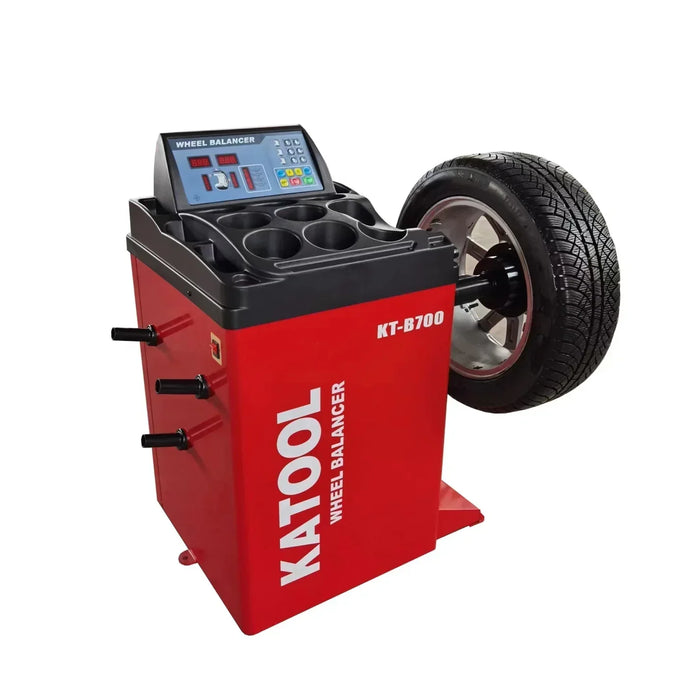

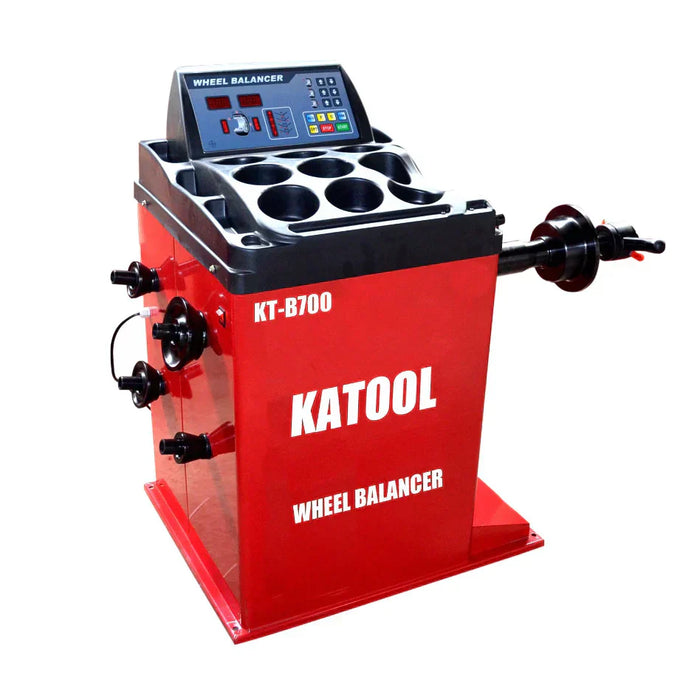

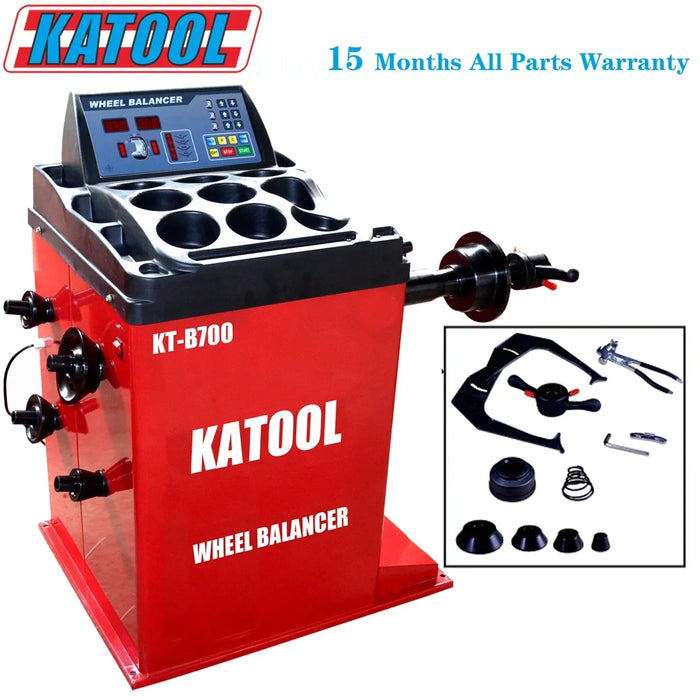

Katool KT-B700 High-Precision Wheel Balancer

The Katool KT-B700 is engineered for professional, precise, and efficient wheel balancing. Built from 3mm-thick high-strength steel and reinforced with solid welding, it minimizes vibration for consistently accurate results. The integrated pressure sensor support uses 8mm-thick side and base panels to ensure stable, high-precision performance. Powered by a premium motor with pure copper winding, the unit offers long-lasting durability, fast heat dissipation, and a reduced failure rate. The 36mm quenched shaft increases strength and compatibility, while the advanced dust-proof, moisture-proof, and antistatic circuit board ensures longevity and reliability.

Designed with a variety of balance modes to suit multiple rim types, the KT-B700 includes a user-friendly interface with built-in fault diagnostics and self-calibration for double-sided accuracy. Optional accessories, such as a wheel guard and extended shaft, provide flexibility and safety for wider wheels.

Key Features

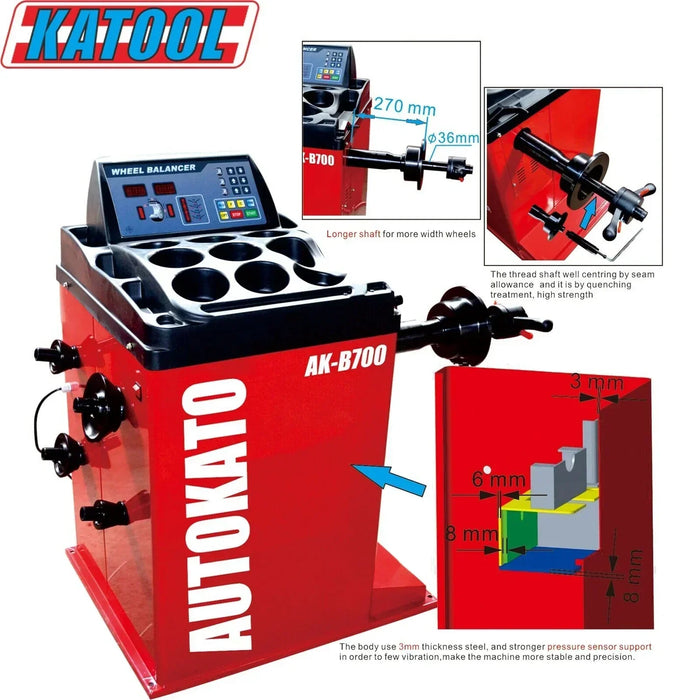

• 3mm-thick steel body with solid welding for ultra-low vibration

• 8mm-thick bottom/sideboards for stable sensor support

• High-performance copper-wound motor for power and durability

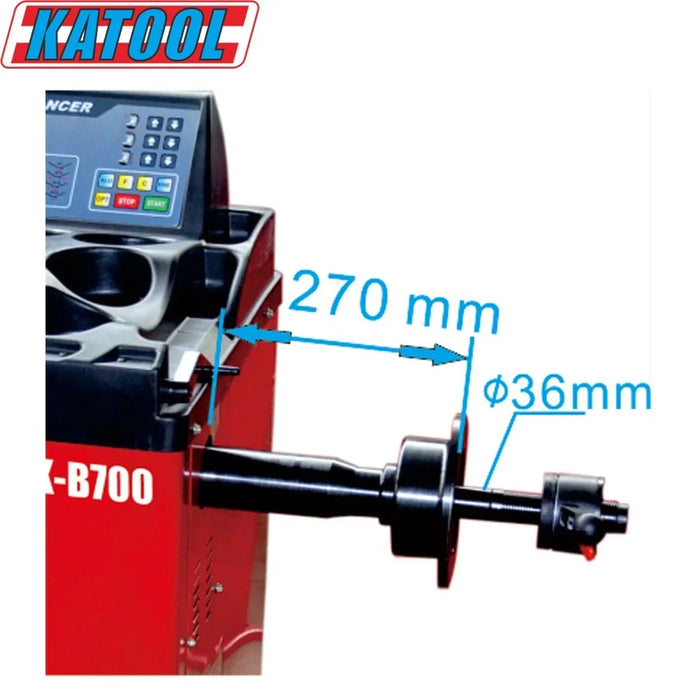

• 36mm quenching-treated shaft for added strength

• Advanced welded circuit board—moisture-proof, dust-proof, antistatic

• Multiple balancing modes for different rim styles

• Built-in fault diagnosis & dual-side self-calibration

• Flexible unit selection: Ounce/Gram, MM/Inch

• Optional wheel guard for safety

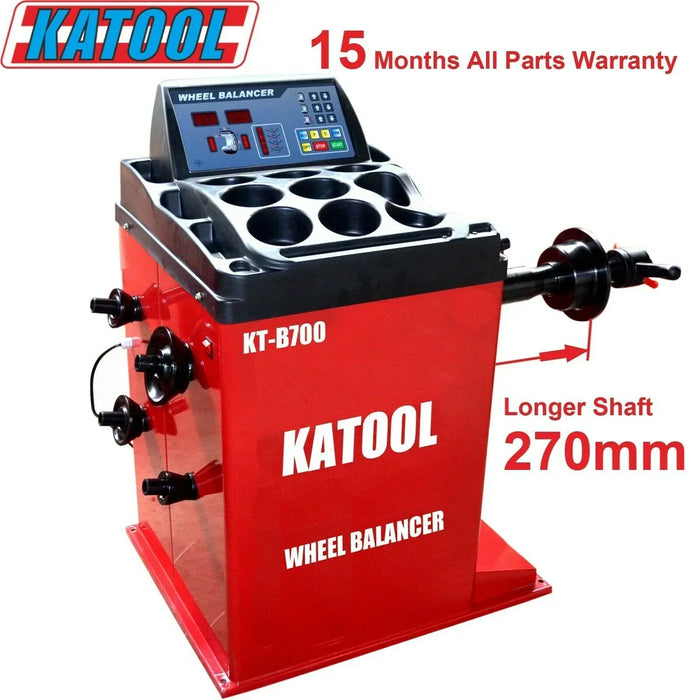

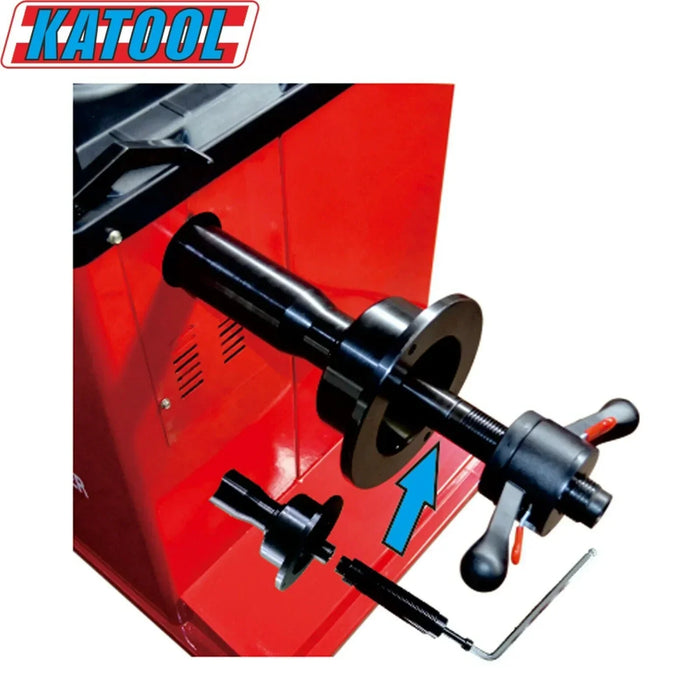

• Extended shaft supports wider wheels

Specifications

• Rim Diameter: ≤ 30"

• Wheel Width: 3"–12"

• Wheel Diameter: ≤ 880 mm / 34.64"

• Rim Center Hole Diameter: ≤ 135 mm / 5.31"

• Wheel Weight Capacity: ≤ 65 kg / 143 lbs

• Balancing Accuracy: 1g

• Balancing Speed: 180 RPM

• Measuring Time: 7 seconds

• Power Supply: 120V / 1PH

• Motor Power: 0.25 KW

Warranty

Katool provides a 1-year limited warranty covering all parts and product defects—free of charge.

A 2-year extended warranty is available for all Katool and M&E automotive equipment.

Covered Components:

• Motors, power units, electronics, displays, and cylinders

• Vehicle lifts also include a 3-year structural warranty

Conditions:

• Warranty valid only within the specified period

• Must include original order number

• Warranty is non-transferable

• Free replacement parts with shipping included

• Labor not included

Important Notes:

• Do not disassemble equipment before diagnosis

• Photo/video documentation of issues may be required

• Warranty service subject to approval by Katool

Resources
👉 [Download Manual (PDF)]
