Katool KT-AV6 Mobile 3D Wheel Alignment Machine for 2-Post & Scissor Lifts

Description

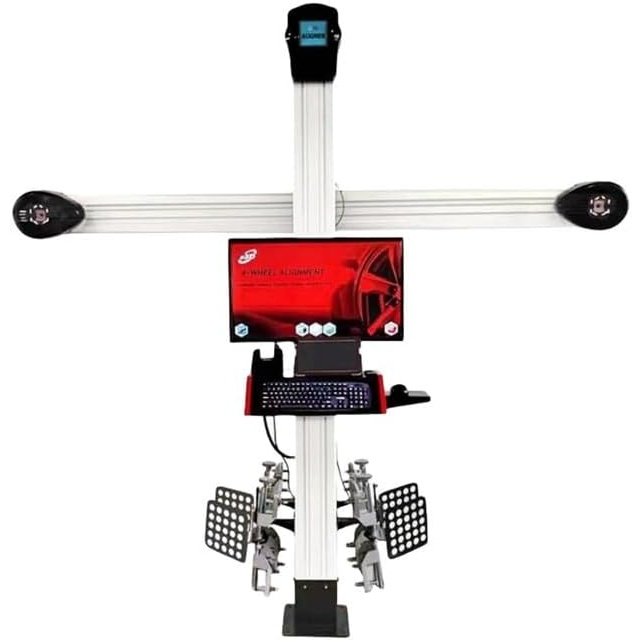

The Katool KT-AV6 Mobile 3D Wheel Alignment Machine is a cutting-edge solution designed for maximum efficiency with 2-Post and Scissor Lifts.
This compact, no-cabinet design system offers seamless installation with no calibration required, unlimited vehicle spec memory, and a highly intuitive operating experience.

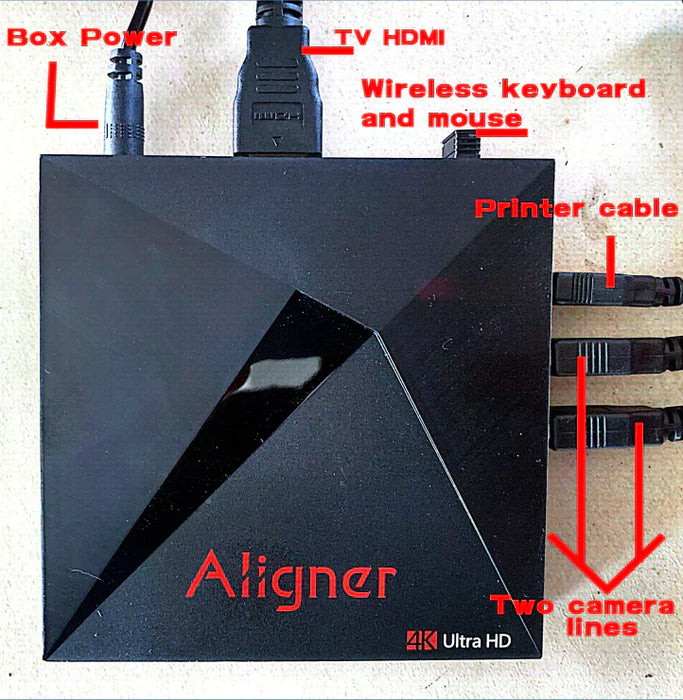

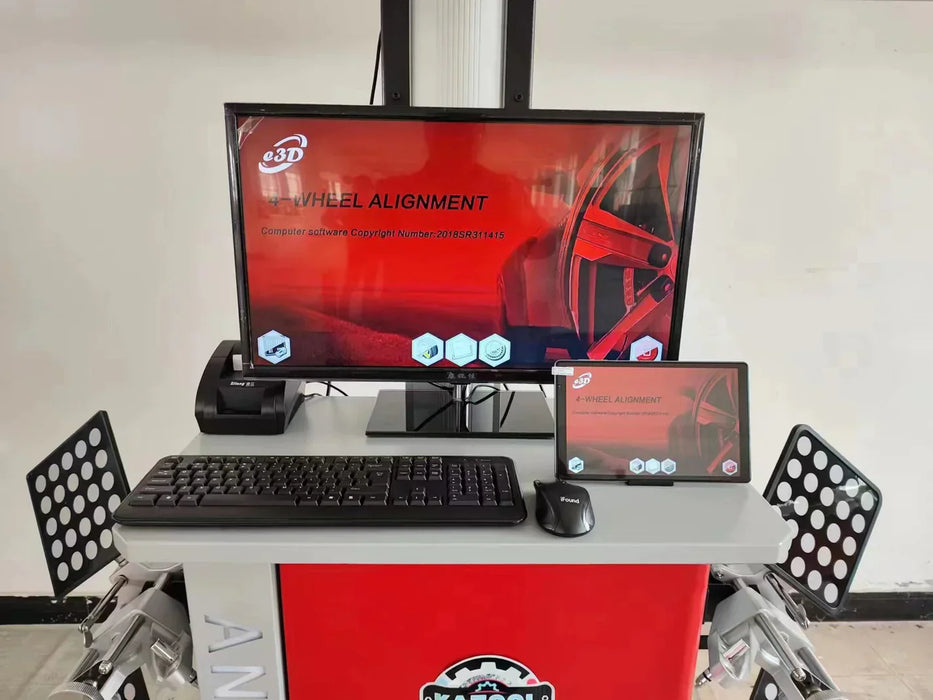

The package comes complete with a tablet, 30-inch display, mouse and keypad, printer, and WiFi and USB devices, providing a full-service setup right out of the box.

Operates on Android and iOS systems, the KT-AV6 minimizes maintenance requirements while allowing synchronous display on smartphones and tablets. Clients can view real-time alignment results, and technicians can easily monitor rear wheel adjustments directly from their smartphones.
The remote-controlled post enables effortless vehicle height tracking, enhancing efficiency and precision.

Stay current with free yearly database upgrades, covering the latest vehicle models from US, European, and Asian brands.

Features

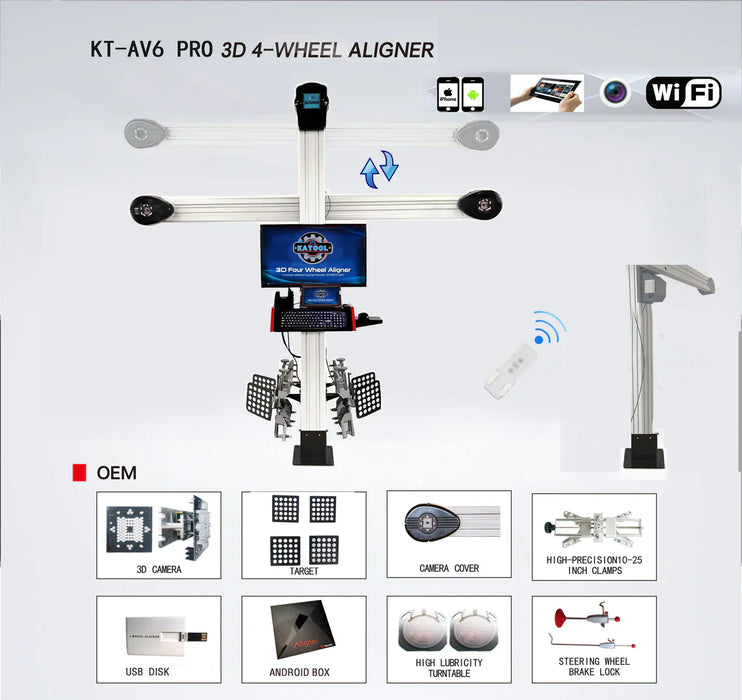

• Mobile 3D Wheel Aligner specifically designed for lifts

• Unlimited memory for vehicle specifications

• No calibration required during installation

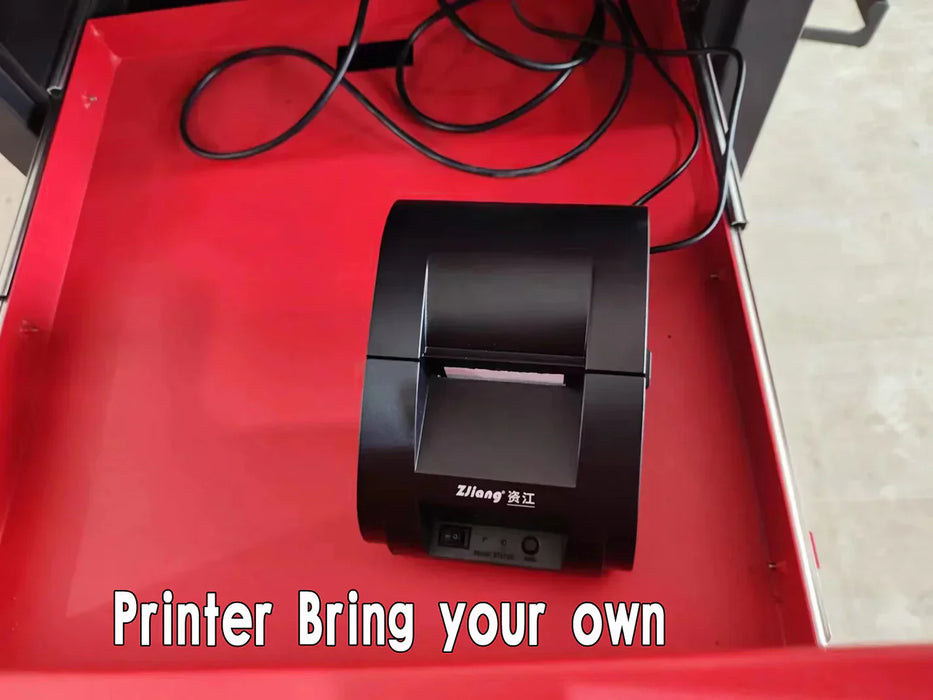

• Complete package: Tablet, 30" display, mouse, keypad, printer

• WiFi device and USB drive included

• Android and iOS compatible software minimizes maintenance

• Synchronous display on smartphones and tablets:

  • Clients can view alignment operations live

  • Technicians can track rear wheel adjustments via smartphone

• Remote-controlled post for tracking car height

• No-cabinet design: Compact and keeps workspace tidy

• Free yearly database upgrades to stay current with new car models

Specifications

• Power Supply: 100–240V, 50/60 Hz, 1-Phase

• Working Temperature: 41°F–104°F (5°C–40°C)

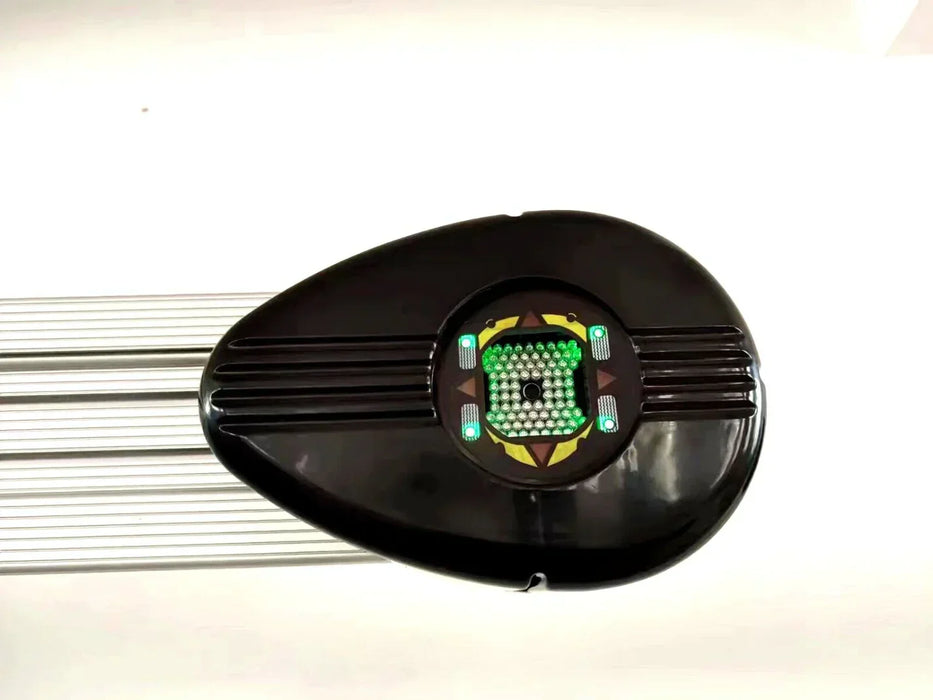

• Cameras: 2

• Tire Diameter: 9 27/32" – 31 1/2" (250–800 mm)

• Wheelbase Range: 62 63/64" – 82 43/64" (1.6–2.1 m)

• Track Width Range: 70 55/64" – 177 11/64" (1.8–4.5 m)

• Product Weight: 440.92 lbs (200 kg)

• Shipping Weight: 529.11 lbs (240 kg)

• Shipping Dimensions:

  • 26" × 35.43" × 36.22" (660 × 900 × 920 mm)

  • 110.24" × 15.75" × 15.75" (2800 × 400 × 400 mm)

Warranty

Katool offers a limited one-year (12 months) warranty covering all parts and defects at no cost.
A 2-year extended warranty plan is also available for Katool and M&E automotive equipment.

Warranty Coverage:

• Cylinders, power units, motors, displays, electronics

• Vehicle lifts include an additional three-year (36 months) warranty on structural components

Conditions:

• Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.

• Replacement parts will be shipped free of charge.

• Labor is not included.

• All warranty claims require approval, and photos/videos may be requested.

Resources

For detailed installation and operation instructions:
👉 [Download Manual (PDF)]
