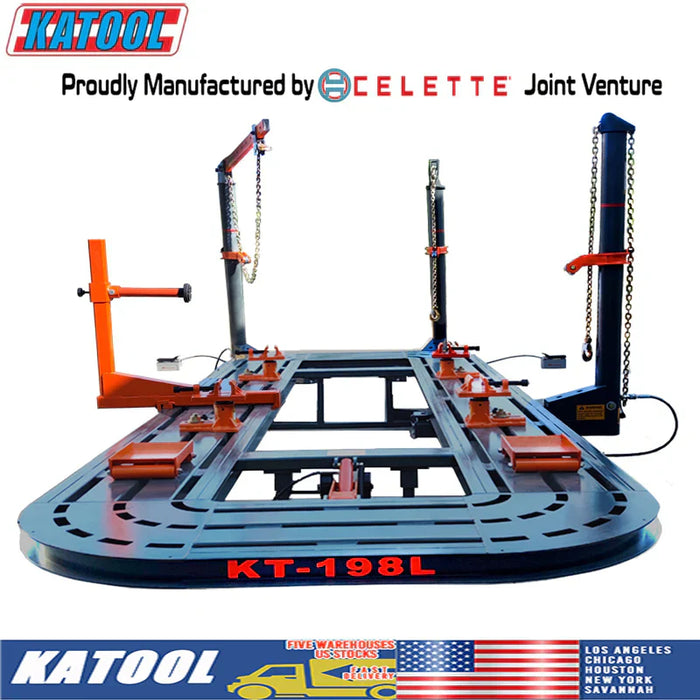

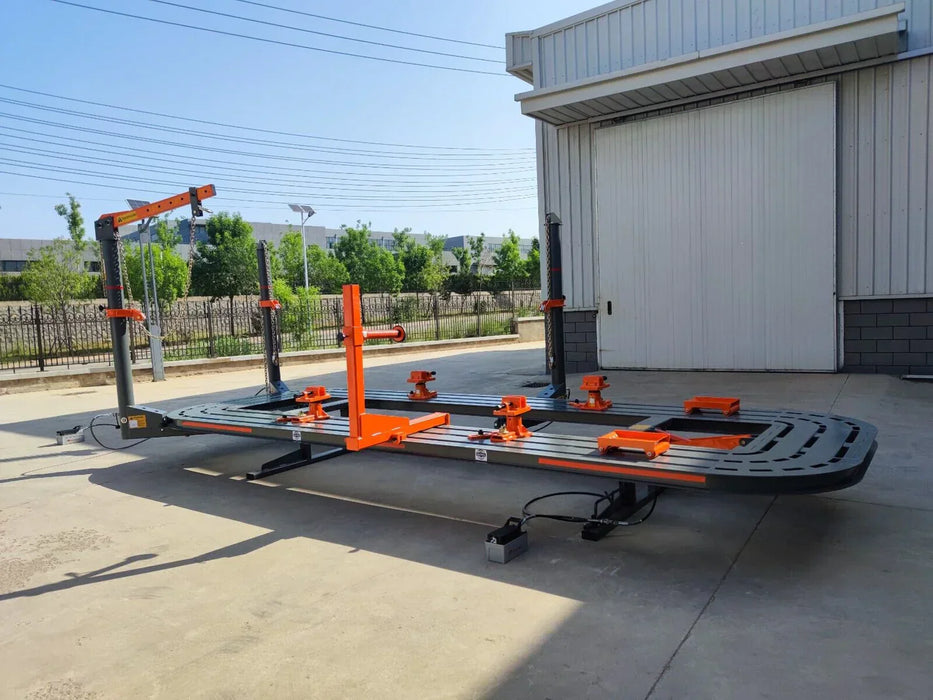

KATOOL KT-198L Auto Body Frame Machine – 100KN Collision Repair System
The KATOOL KT-198L Auto Body Frame Machine is a full-size collision repair platform engineered for professional auto body shops handling structural frame corrections and heavy chassis straightening. With a 100KN pulling capacity and 7,700 lb maximum load rating (CE Certified), this frame machine is built for serious structural restoration work.
Designed for precision and efficiency, the KT-198L features a tilt hydraulic lifting platform, 360-degree pulling radius, and multi-directional tensile capability. The automatic robot welding construction enhances structural rigidity and long-term durability, making it suitable for high-volume collision repair facilities.
This system is ideal for body shops requiring stable chassis clamping, full-frame pulling power, and professional-grade repair workflow.
Why Choose the KATOOL KT-198L Frame Machine
-
100KN pulling capacity for heavy structural repairs
-
7,700 lb max load capacity (CE Certified)
-
360° pulling radius for complete vehicle access
-
Multi-direction tensile force for complex collision repairs
-
Heavy-duty auto body frame machine for professional use
-
Tilt hydraulic lifting platform for improved positioning
-
Designed for high-volume collision repair shops
-
Robot-welded structure for enhanced rigidity and durability
Key Features
-

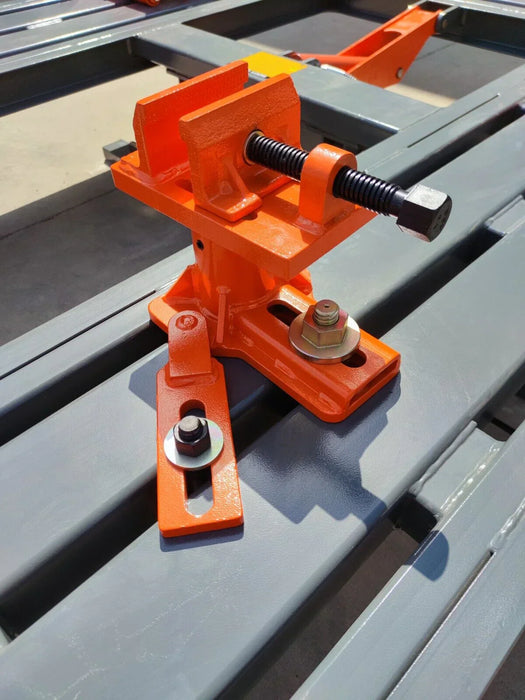

Quick-Fix Clamp Jaws – Clockwise shaft system improves chassis clamping efficiency
-
Tilt Hydraulic Lifting Platform – Adjustable height from 4.3" to 67" for flexible access
-
360° Pulling Tower System – Full-range directional pulling capability
-

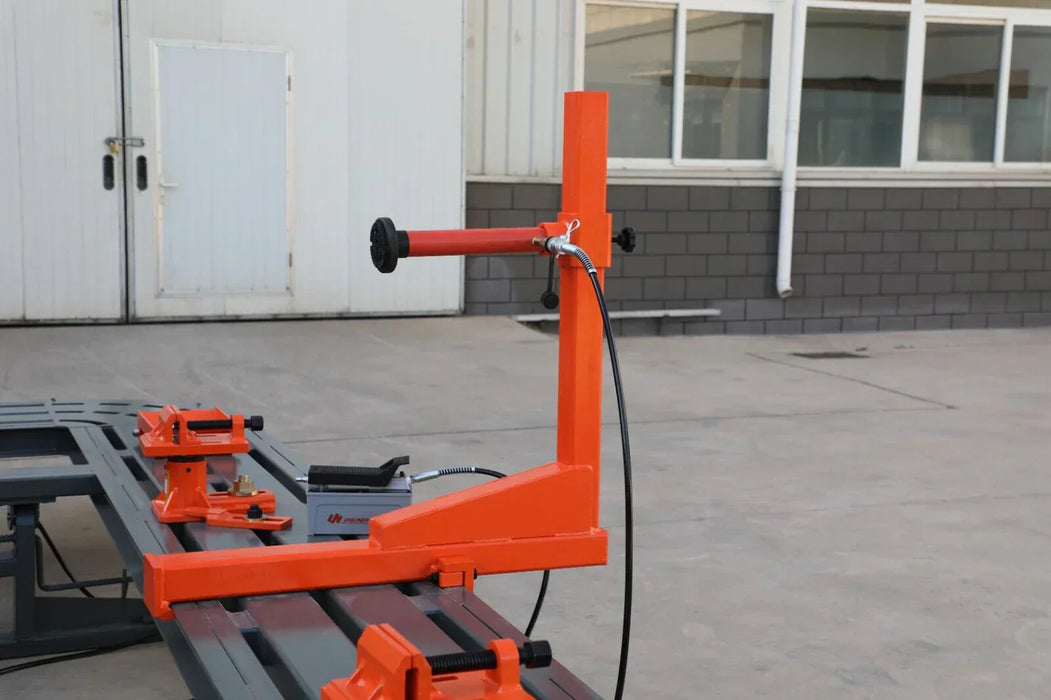

Multi-Directional Leading Arm – Supports complex frame corrections
-

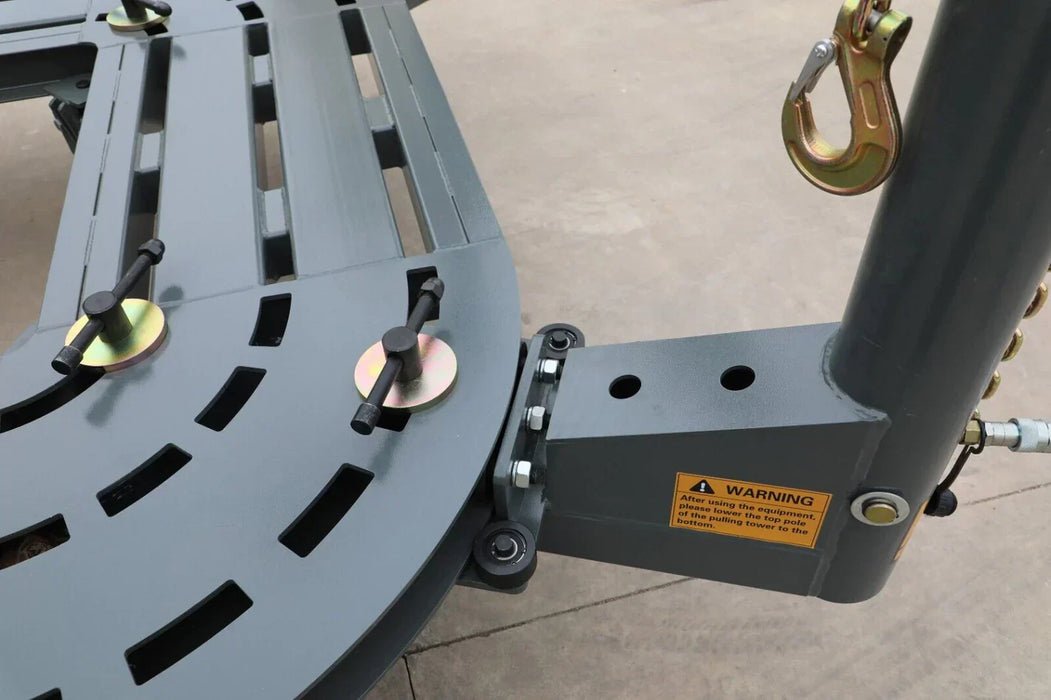

Tower Wheel Movement Device – Smooth tower positioning for precision setup
-
Lightweight Drive-On Ramps – Simplifies vehicle loading and unloading
-
Automatic Robot Welding Construction – Reinforced structural integrity
-

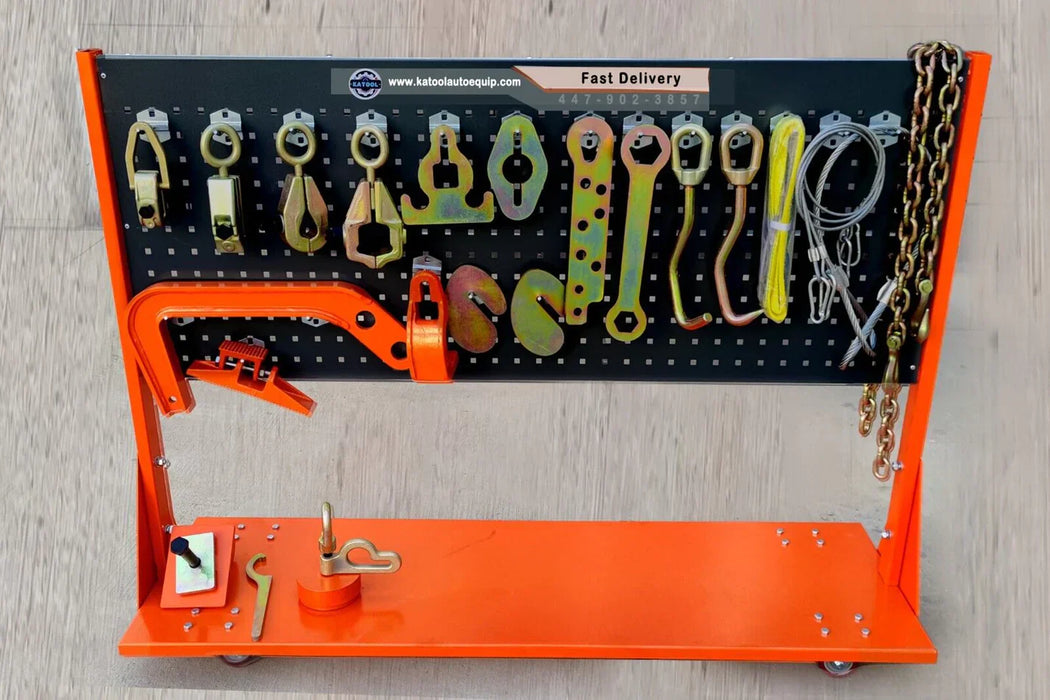

Complimentary Repair Accessories – Included per configuration
Specifications
| Specification |
Details |
| Model |
KT-198L |
| Product Type |
Auto Body Frame Machine |
| Pulling Capacity |
100 KN |
| Maximum Load |
7,700 lbs (CE Certified) |
| Pulling Radius |
360° |
| Air Supply Required |
0.8 MPa |
| Length |
236.4 inches |
| Width |
84.3 inches |
| Height Range |
4.3 – 67 inches |
| Material |
Q235 & Q245 Steel |
Installation Requirements (Important)
Freight shipping within the lower 48 states only.
Buyer is responsible for unloading the equipment from the truck. A forklift or loading dock is strongly recommended. Residential and limited-access deliveries may incur additional carrier fees.
Install on a reinforced, level concrete surface suitable for heavy structural pulling operations. Ensure adequate shop space to accommodate full 360° pulling range and platform dimensions.
Operation should be performed by trained collision repair professionals following proper structural repair procedures.
Warranty
-
1-Year Limited Warranty on parts and manufacturer defects
-
3-Year Structural Warranty on frame components
-
Free shipping on approved replacement parts
-
Labor is not included
-
Warranty is non-transferable and requires proof of purchase
All warranty claims are subject to service department approval.
Bottom Line
The KATOOL KT-198L is a professional-grade auto body frame machine built for collision repair facilities that require high pulling capacity, 360° access, and long-term structural durability.
Live Chat with us or call (866) 412-1837 to confirm fitment, installation requirements, or shipping details.
