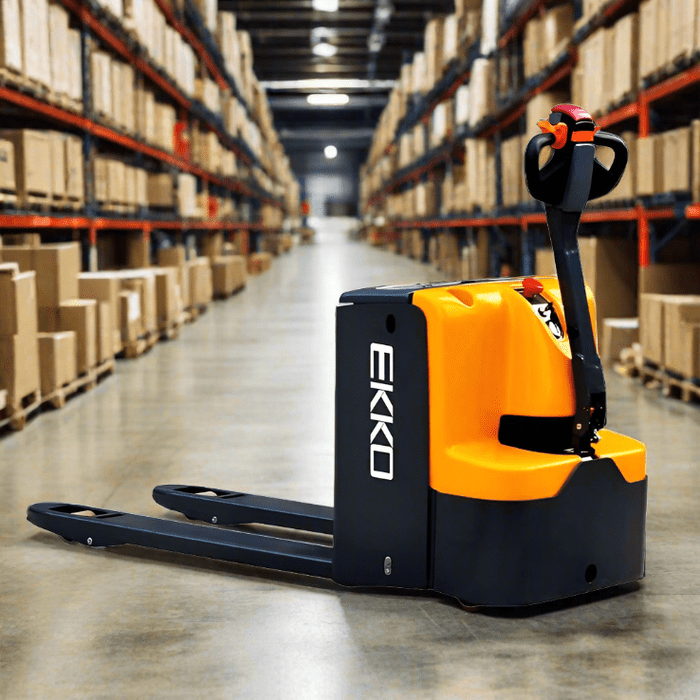

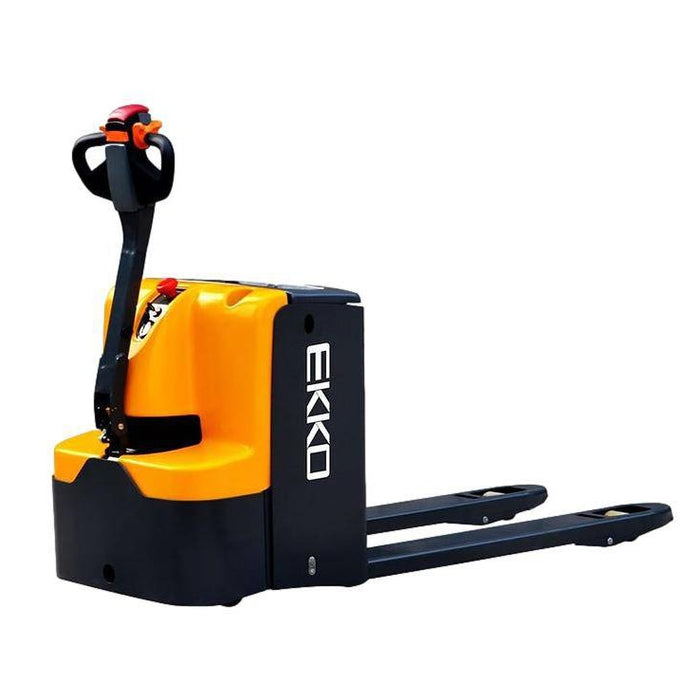

EKKO Walkie Pallet Jack 4400lbs. Capacity EP20E

The EKKO EP20E Electric Walkie Pallet Jack is designed with the versatility of a pallet jack with full power lifting and driving capabilities. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.

Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.

Load Capacity 4400lbs.
Fork Size 27x48
Raised Height 7.9"
Lowered Height 3.3"
Curtis Controller
Polyurethane Wheels
Steel Entry Wheels
Ergonomic Handle and Controls
Steel Construction
Robotic Welding
Built-in Charger Included
Battery Included
Optional Backrest
3 Years Limited Warranty

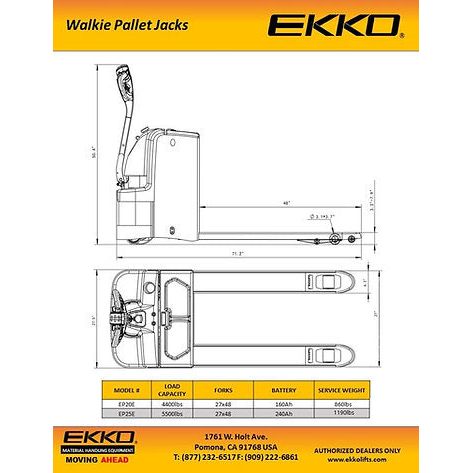

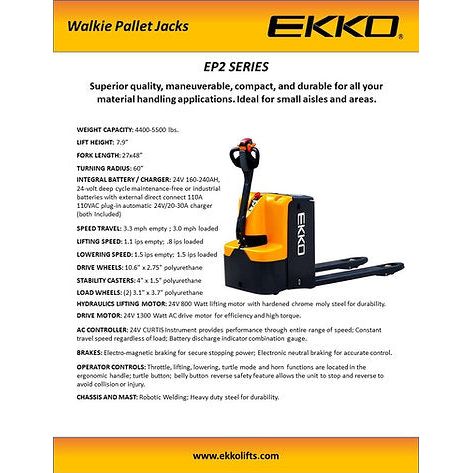

Specifications and Details

Specification	Unit / Type	Value
Model		EP20E
Lift		Electric
Drive		Electric
Load capacity	lbs	4400
Load center	in	24
Wheel base	in	53
Lowered fork height	in	3.3
Lifting height	in	7.9
Overall length	in	71.2
Overall width	in	28
Fork size	in	2/6/48
Outside distance of fork	in	27
Turning radius	in	60
Lifting speed, laden/unladen	in/s	0.8/1.1
Lowering speed, laden/unladen	in/s	1.5/1.5
Max gradient performance, laden/unladen	%	8/15
Brake type		Electromagnetic
Drive motor	kW	1.3
Lift motor	kW	0.8
Charger	V/A	24/15
Battery voltage / rated capacity	V / Ah	24 / 160
Type of drive motor		AC Motor speed control
Noise level at operator seat	dB(A)	68
Service weight (with battery)	lbs	860
