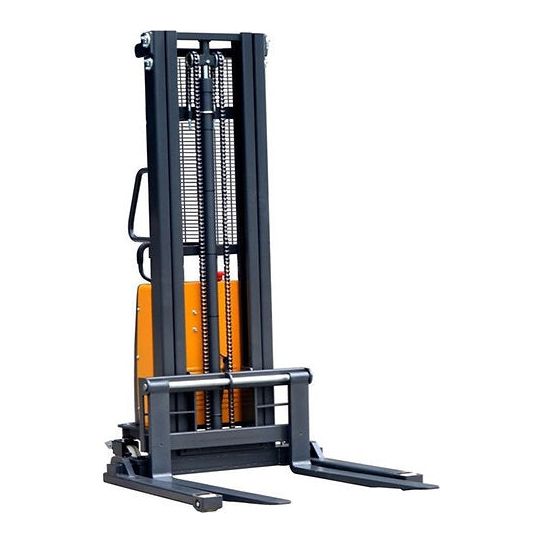

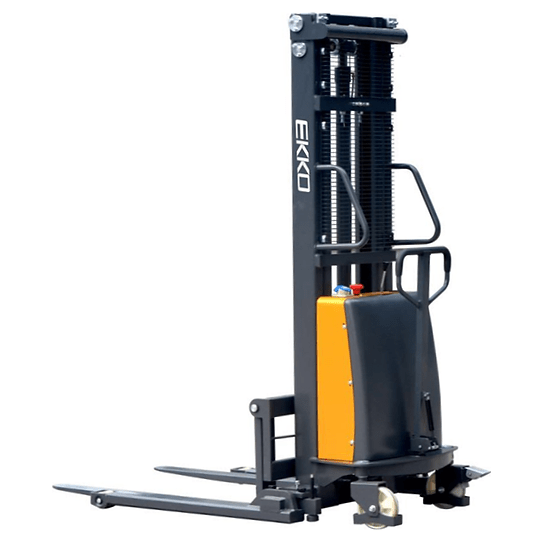

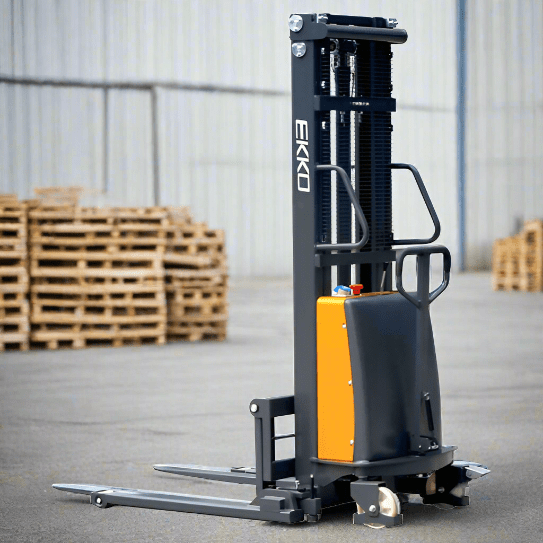

EKKO Semi-Electric Straddle Stacker 3300lbs. Cap., 119.4" Height EA15B

The EKKO EA15B Semi-Electric Straddle Stacker is designed with the combination of the versatility of a forklift and a pallet stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors, and warehousing.

Made from high-quality steel and components with durable quality drives to withstand any terrain, usage, impact, and directional changes for the use of any application with confidence and assurance.

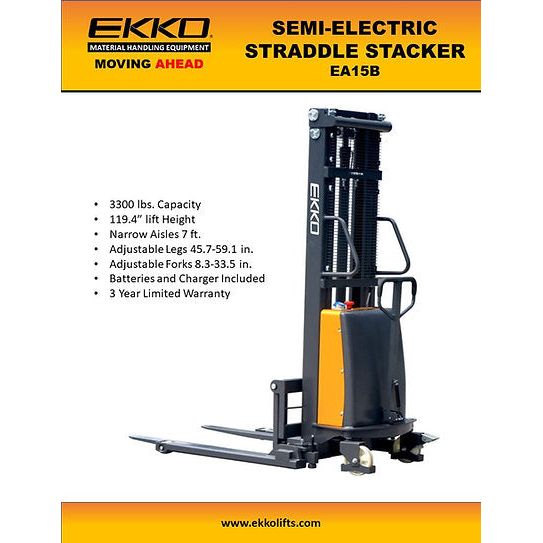

Load Capacity 3300lbs.
Raised Height 119.4" (9.95ft)
Adjustable Forks 8.3-33.4”
Adjustable Legs 43.5-59.1”
Fork Length 45.3"
Power Lifting
Manual Drive
Adjustable Forks
Internal Charger 12V/15A Included
Battery 12V 120Ah Included
Ergonomic Handle
Steel Construction
Robotic Welding
3 Years Limited Warranty

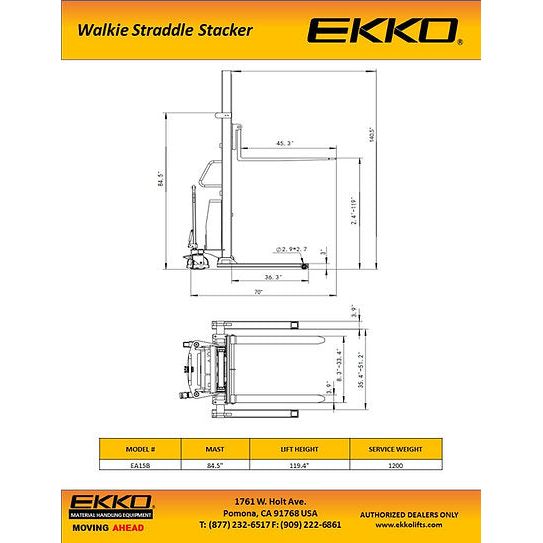

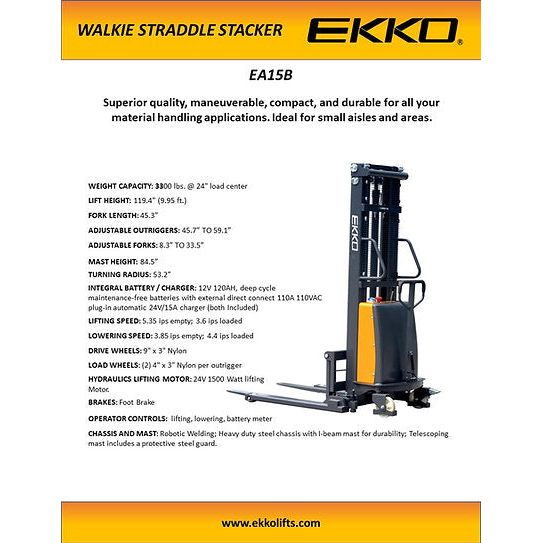

Specifications and Details

Model	EA15E	EA15D	EA15C	EA15B
Load Capacity (lbs)	3300	3300	3300	3300
Max Lifting Height (in)	138	138	119.4	119.4
Load Center Distance (in)	24	24	24	24
Fork Length (in)	45.3	45.3	45.3	45.3
Single Fork Width (in)	5.9	4	5.9	3.94
Overall Fork Width (in)	24.5	8-32.7	24.5	8-33.4
Lowered Fork Height (in)	2.4	2.35	2.4	2.4
Fixed Leg Length (in)	45.3	36.5	45.3	36.4
Adjustable Leg Width / Width Between Legs (in)	12.75	44.5-59.1	12.75	43.5-59.1
Turning Radius (in)	53.2	52.6	53.2	53.2
Overall Length (in)	73	70	73	70
Overall Width Max (in)	59	61	59	59
Extended Mast Height (in)	140.5	154	140.5	140.5
Lowered Mast Height (in)	81.8	92	81.8	84.5
Battery Voltage / Capacity (V/Ah)	12V/120Ah	12V/120Ah	12V/120Ah	12V/120Ah
Charger (V/A)	12V/20A	12V/15A	12V/20A	12V/15A
Lift Motor	DC 12V/1500W	DC 12V/1500W	DC 12V/1500W	DC 12V/1.5KW
Service Weight (lbs)	910	1450	870	1200
