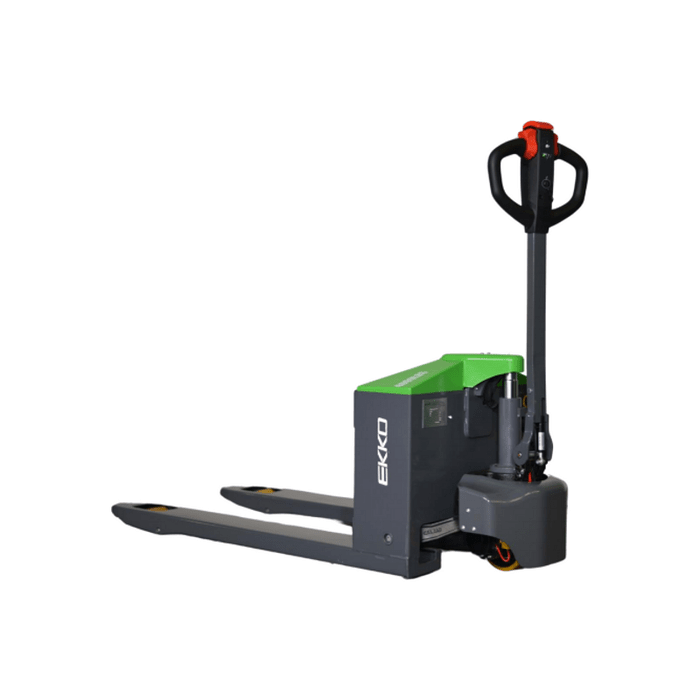

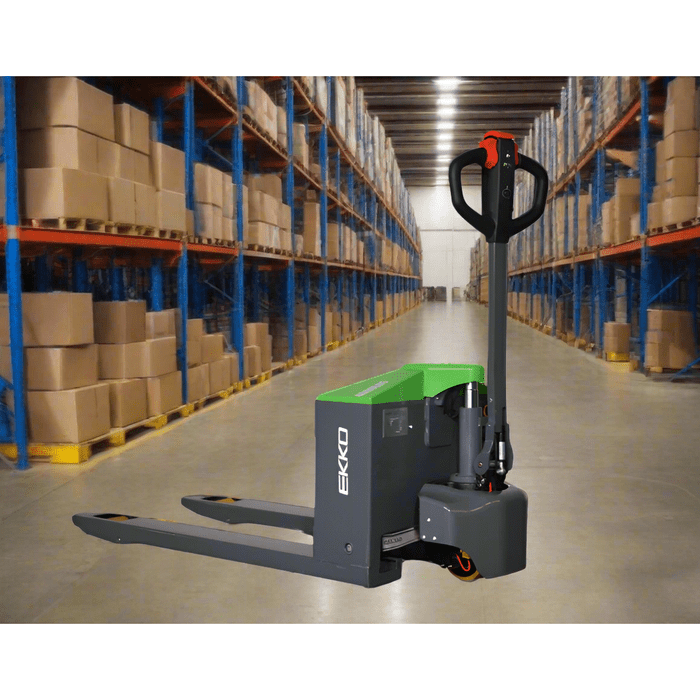

EKKO Lithium Walkie Pallet Jack 4400 lb Capacity EP20JLIC

The EKKO EP20JLIC Lithium Walkie Pallet Jacks are designed with the versatility of a pallet jack with full power lifting and driving capabilities. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.

Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.

  • Lithium 48V Powered
  • Load Capacity 4400 lb
  • Fork Size 2.2x45.2
  • Raised Height 7.48"
  • Lowered Height 2.95"
  • Pinwheel Capability
  • Polyurethane Wheels
  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • Charger Included
  • Battery Included
  • 3 Years Limited Warranty

Specifications and Details

Specification Unit / Type Value
Model EP20JLIC
Drive type Electric
Manner of operation Walkie
Load Capacity lbs 4400
Load Centre in 23.6
Axle centre to fork face in 37
Wheel Base in 50.3
Tire material Polyurethane
Driving wheel size Φ×w (in) Φ8.27×2.95
Bearing wheel size Φ×w (in) Φ2.91×3.66
Qty of wheel, Front/Rear (x=driving wheel) 1x/2
Tread in 21.06
Lifting Height in 7.48
Height of handle in operation in 48.2
Lowered fork height in 2.95
Overall Length in 64
Body Length in 16.53
Overall Width in 27
Fork Size s/e/l (in) 2.24/6.3/45.28
Fork Width in 27
Min. Ground clearance in 1.06
Aisle width for pallets 39.37*47.24 crossways in 88.9
Aisle width for pallets 31.5*47.24 lengthways in 83.9
Turning Radius in 57.5
Driving Speed, laden/unladen km/h 2.6/2.8
Maximum gradeability, laden/unladen in/s 0.24/0.39
Brake Type Electromagnetic brake
Drive Motor kW 0.75
Lift Motor kW 0.8
Lithium Battery voltage/rate capacity V/Ah 48/20
Battery Weight (±5%) lbs 21.1
Type of drive control DC
Noise level dB(A) ≤70
Service Weight (with battery) lbs 359

Specifications

Model / SKUEP20JLIC
BrandEKKO
