EKKO Lithium Walkie Pallet Jack 3300 lb Capacity EP15JLIC

EKKO Lithium Walkie Pallet Jack 3300 lb Capacity EP15JLIC

EKKO  | Authorized Dealer  |  SKU: EP15JLIC

$2,888.00 - $2,888.00
$2,888.00
$2,888.00 - $2,888.00
$2,888.00
+ FREE SHIPPING
Availability:
In stock

Get A Quote

✓ Free Shipping - on most EKKO products
✓ Manufacturer Warranty Included - on all EKKO
✓ 0% Financing Available - EKKO + 0% APR, Applicable at Checkout
✓ In Stock - most orders leave the warehouse in 3-5 business days
✓ Questions? - Call ‪(866) 412-1837

Want today's EKKO prices but not ready for delivery?

No problem! All orders receive special attention and in most cases we can hold items and begin processing at a later date! Please contact us for more details!

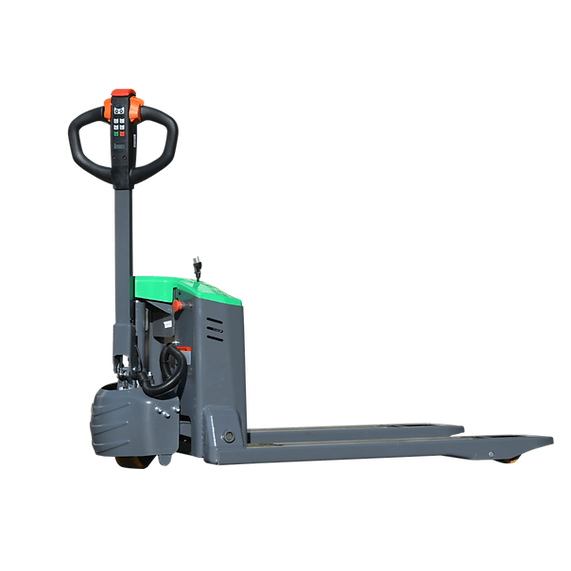

EKKO Lithium Walkie Pallet Jack 3300 lb Capacity EP15JLIC

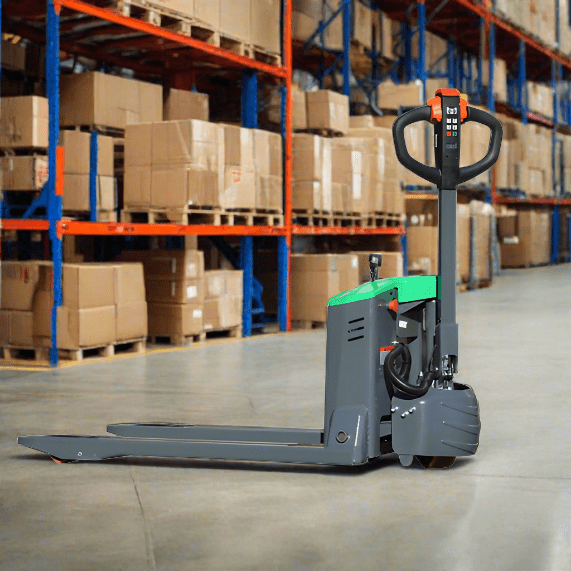

The EKKO EP-JLI series Lithium Iron Phospahte Electric Walkie Pallet Jacks are designed with the versatility of a pallet jack with full power lifting and driving capabilities. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.

Made from high-quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.

  • Lithium 24V Powered
  • Load Capacity 3300 lb
  • Fork Size 27x45
  • Raised Height 7.87"
  • Lowered Height 3.35"
  • Pinwheel Capability
  • Polyurethane Wheels

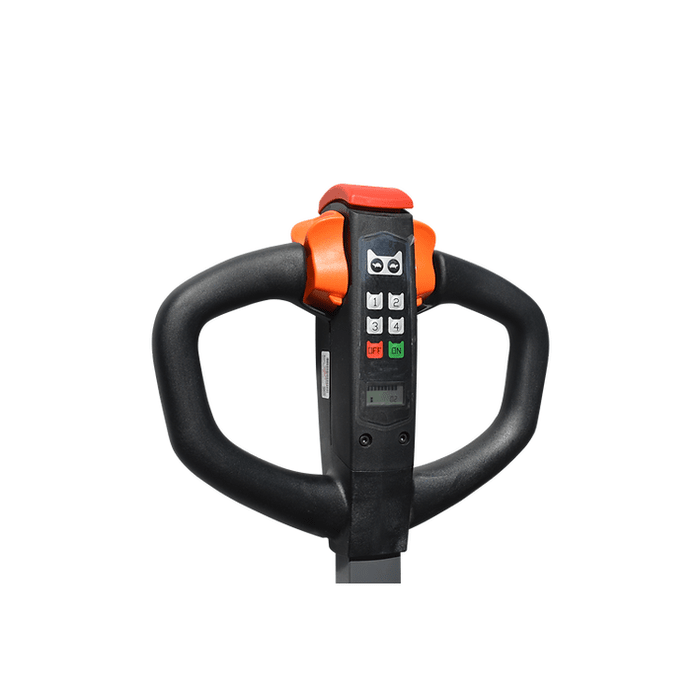

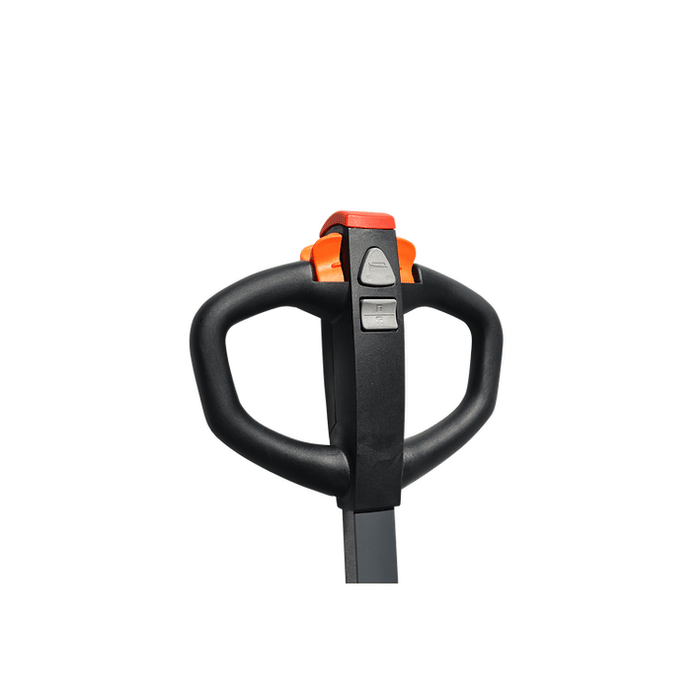

  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • Charger Included
  • (1) Lithium Iron LiFePO4 Battery
  • 3 Years Limited Warranty
  •  New with Pinpad

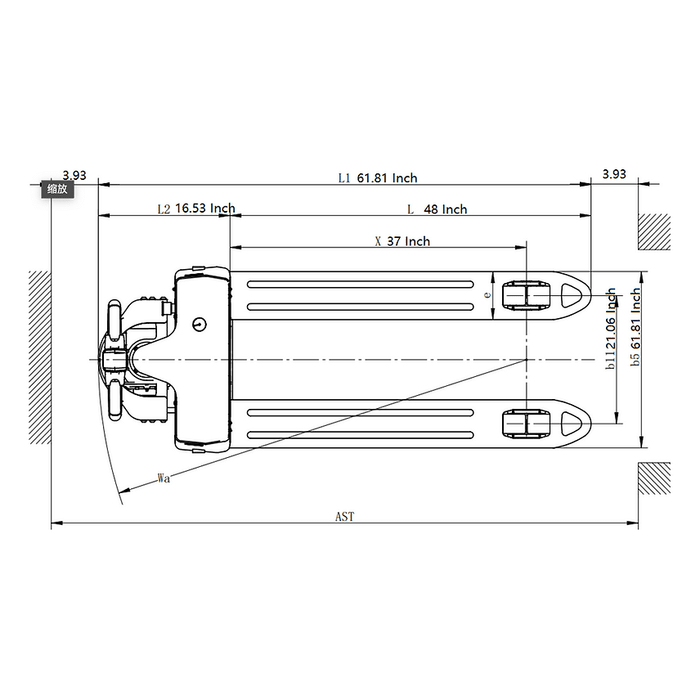

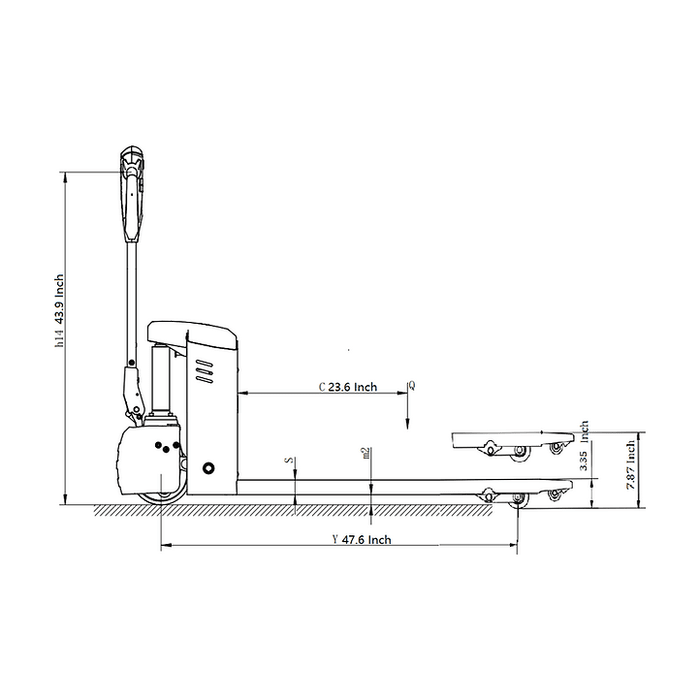

Specifications and Details

Specification Unit / Type Value
Model EP15JLIC
Drive type Electric
Manner of operation Walkie
Load Capacity lbs 3300
Load Centre in 23.6
Axle centre to fork face in 37
Wheel Base in 47.6
Tire material PU
Driving wheel size Φ×w in Φ8.26×2.75
Bearing wheel size Φ×w in Φ3.15×2.36
Qty of wheel, Front/Rear (x=driving wheel) 1x/2
Tread in 21.06
Lifting Height in 7.8
Height of handle in operation in 30.5 / 43.9
Lowered fork height in 3.35
Overall Length in 61.81
Body Length in 16.53
Overall Width in 27
Fork Size s/e/l in 1.97/5.9/48
Fork Width in 27
Min. Ground clearance in 1.38
Aisle width for pallets 39.37*47.24 crossways in 69.7
Aisle width for pallets 31.5*47.24 lengthways in 71.6
Turning Radius in 53.7
Driving Speed, load/unload in 4.2/4.5
Maximum gradeability, load/unload 5/10
Brake Type Electromagnetic brake
Drive Motor kW 0.75
Lift Motor kW 0.8
Lithium LiFePO4 Battery voltage / rate capacity V/Ah 24/30
Battery Weight (±5%) lbs 21.1
Type of drive control DC
Noise level dB(A) ≤70
Service Weight (with battery) lbs 308

About EKKO Lifts

Product Documents

Product Specs

Product User Manual

Product Service Manual

Warranty
