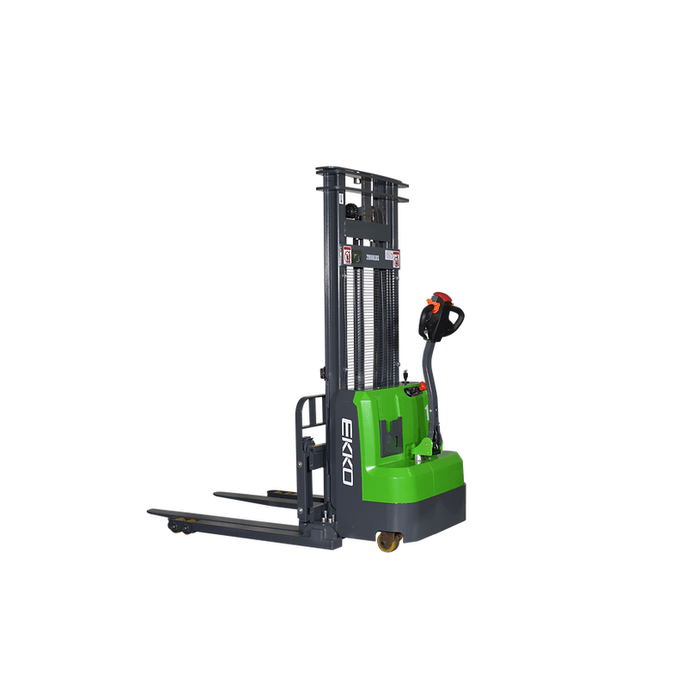

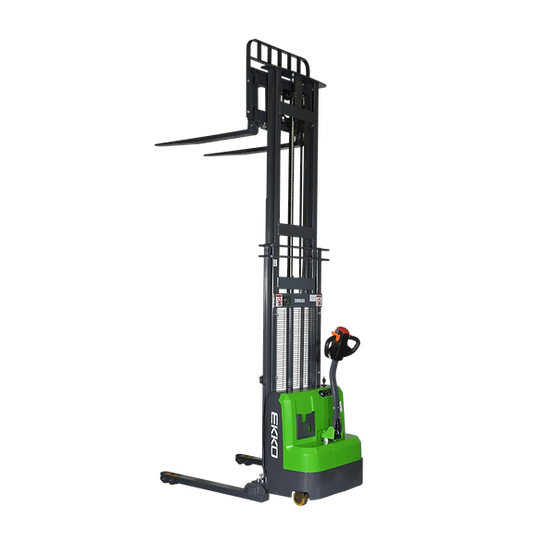

EKKO Lithium Straddle Stacker 3000 lb. Cap., 145" Height EB14C-145Li

EKKO Lithium Straddle Stacker 3000 lb. Cap., 145" Height EB14C-145Li

EKKO  | Authorized Dealer  |  SKU: EB14C-145LI

$7,748.00 - $7,748.00
$7,748.00
$7,748.00 - $7,748.00
$7,748.00
+ FREE SHIPPING
Availability:
In stock

Get A Quote

✓ Free Shipping - on most EKKO products
✓ Manufacturer Warranty Included - on all EKKO
✓ 0% Financing Available - EKKO + 0% APR, Applicable at Checkout
✓ In Stock - most orders leave the warehouse in 3-5 business days
✓ Questions? - Call ‪(866) 412-1837

Want today's EKKO prices but not ready for delivery?

No problem! All orders receive special attention and in most cases we can hold items and begin processing at a later date! Please contact us for more details!

EKKO Lithium Straddle Stacker 3000 lb. Cap., 145" Height EB14C-145Li

The EKKO EB14C-145Li Electric Straddle Stacker is designed with the combination of the versatility of a forklift, reach truck and a walkie stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.

Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.

  • Load Capacity 3000 lb
  • Raised Height 145” (12.08 ft.)
  • Adjustable Forks 8.7-32.1“
  • Adjustable Legs 35.4-51.2”
  • Fork Length 45.3“
  • Curtis Instrument Controller
  • DC Drive Motor
  • Battery 24V/50Ah Lithium
  • Polyurethane Wheels
  • Ergonomic Handle and Controls
  • Steel Construction



Specifications

Model EB14C-145LI
Load capacity 3000 (lbs)
The max. lifting height 145 (in)
Load center distance 20 (in)
Fork length 45.3 (in)
Single fork width 4 (in)
Fork Adjustment Width 8.7-32.1 (in)
Lowered fork height 2.6 (in)
Adjustable legs 35.4-51.2 (in)
Turning radius 57.5 (in)
Overall length 73.7 (in)
Max Overall width 61 (in)
Extended mast height 174.8 (in)
Lowered mast height 98.8 (in)
Battery voltage 24V/50Ah Lithium
Internal Charger 24V/20
Lifting Motor 2.2 kw
Driving Motor DC Drive Motor
Service Weight 1800 (lbs)
