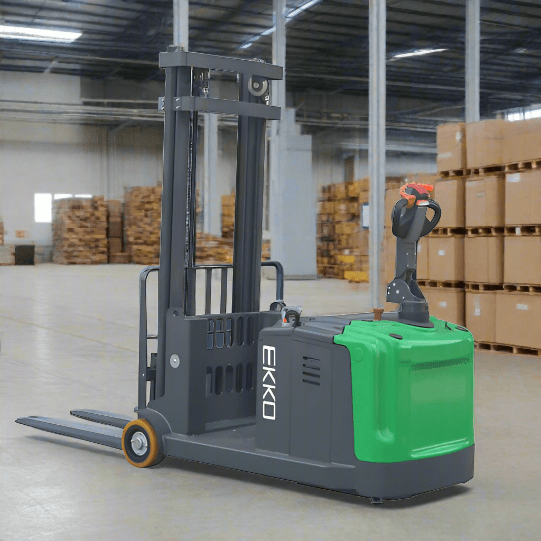

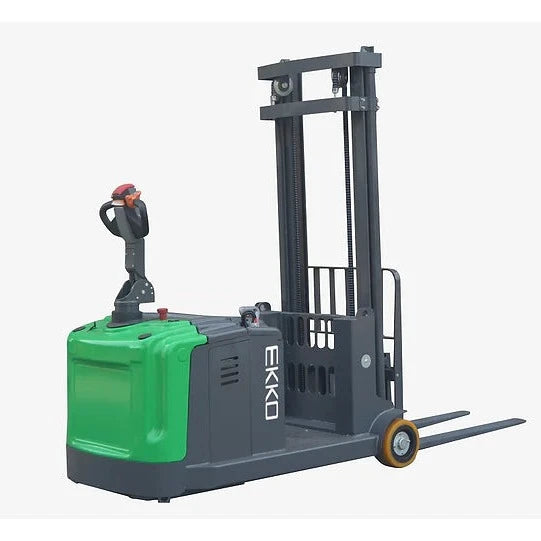

EKKO Lithium Powered Counterbalanced Walkie Stacker EK14-130Li

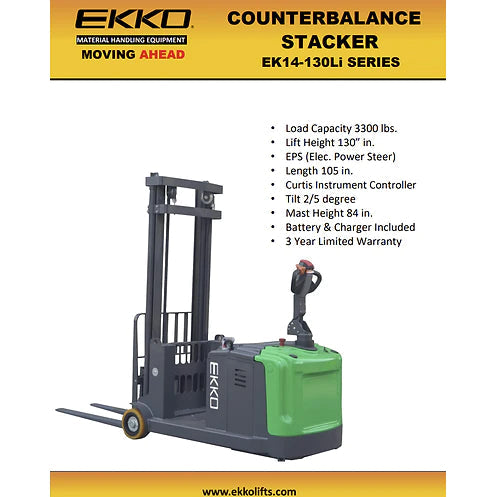

The EKKO EK14-130LI Lithium Powered Counterbalanced Walkie Stacker is designed with the combination of the versatility of forklift and a walkie stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.

Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.

  • Load Capacity 3300 lbs
  • Raised Height 130" (10.83ft)
  • Adjustable Forks 8.6-28.3"
  • Fork Length 45.3"
  • Tilt 2/5 Degree
  • Curtis Controller
  • 24V Center Drive Motor
  • 24V Lift Motor
  • Battery 24V/150Ah Lithium
  • Polyurethane Wheels
  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • Charger Included
  • Battery Included
  • 3 Years Limited Warranty

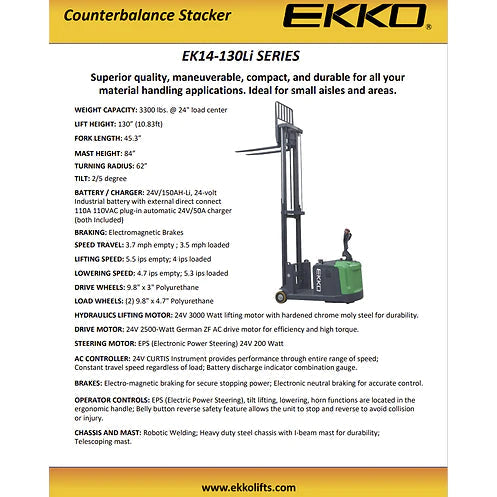

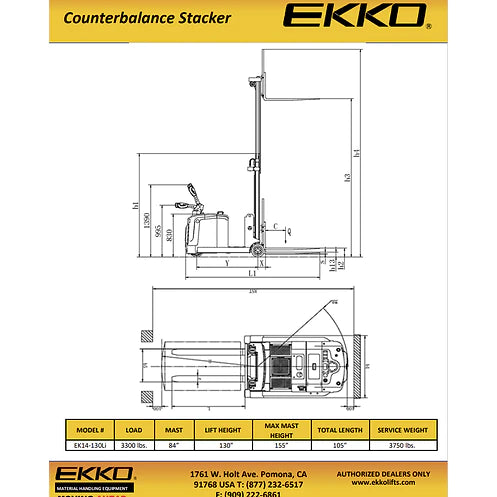

Specification

Model

EK14-130Li

Drive type

Electric

Type of operation

Walike type

Load Capacity

3300 lbs

Load Centre

24 in

Distance between fork backrest and front wheel

6 in

Wheelbase

47 in

Service Weight(with battery)

3750 lbs

Tire material

PU

Driving wheel size

Φ9.8×3.1 in

Front wheel size

Φ9.84×4.71 in

No of Driving wheel,Balance wheel/Bearing wheel(X=Driving wheel

2/1X

Load capacity

Power

Operator type

Stand

Mast/fork carriage tilt, forward/backward

2/5/2024 α/β (°)

Lowered mast height

84 in

Free lift height

4 in

Lift height

130 in

Extended mast height

155 in

Height of seat/stand-on platform

5 mm

Fork carriage width

3.5 in

Overall Length

105 in

The max driving speed laden/unladen

16850/204724 (in/h)

Overall Width

39 in

Fork Size

1.4/4/37 in

Fork Width

8.7-28 in

Ground clearance under mast

2.4 in

Steering Motor

24V/0.2kw

Aisle width for pallets 1000*1200 crossways

119 in

Aisle width for pallets 800*1200 lengthways

123 in

Turing Radius

62 in

Steering Motor

24V/0.2kw

Lifting Speed load/unload

4/5.5 in

Lowered Speed load/unload

5.3/4.7 in

Maximum gradeability load/unload

6/10

Charger

24V/50A

Drive Motor

2.5 kw

Lift Motor

3 kw

Battery voltage/rate capacity

24V/150AH-Li

Specifications

Model / SKUEK14-130LI
BrandEKKO
