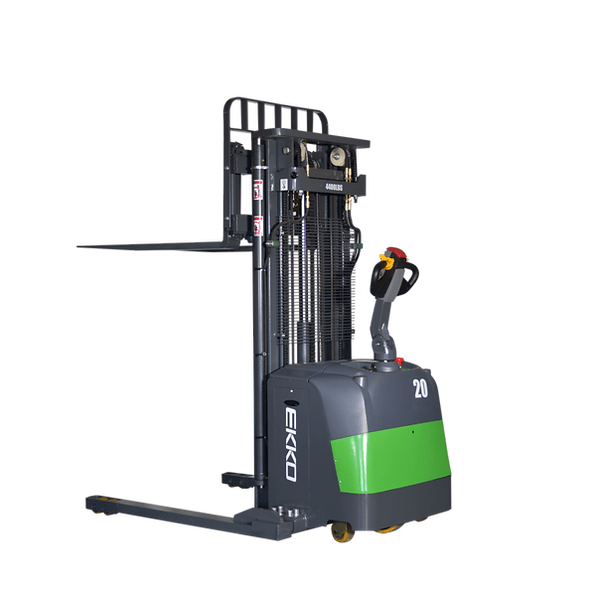

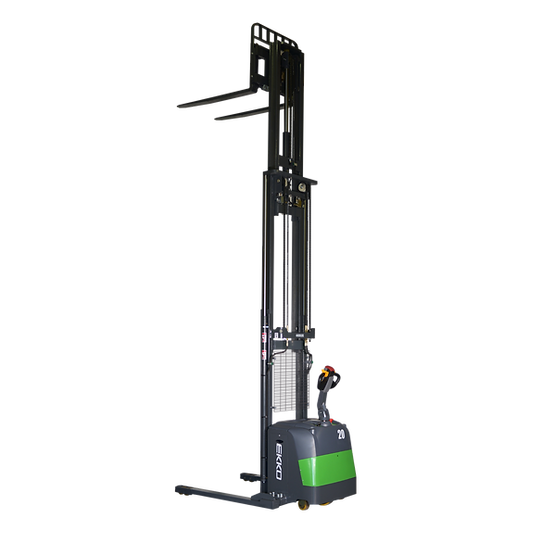

EKKO Lithium Electric Straddle Stacker 4400 lb Cap., 189" Height EB20CS-189Li

Name: EKKO Lithium Electric Straddle Stacker 4400 lb Cap., 189" Height EB20CS-189Li
Brand: EKKO
SKU: EB20CS-189LI
Price: 19198.0 USD
Availability: InStock

EKKO | Authorized Dealer | SKU: EB20CS-189LI

$19,198.00 - $19,198.00

$19,198.00

$19,198.00 - $19,198.00

$19,198.00

+ FREE SHIPPING

Availability:

In stock

Get A Quote

✓ Free Shipping - on most EKKO products
✓ Manufacturer Warranty Included - on all EKKO
✓ 0% Financing Available - EKKO + 0% APR, Applicable at Checkout
✓ In Stock - most orders leave the warehouse in 3-5 business days
✓ Questions? - Call ‪(866) 412-1837

Quantity

Want today's EKKO prices but not ready for delivery?

No problem! All orders receive special attention and in most cases we can hold items and begin processing at a later date! Please contact us for more details!

EKKO Lithium Electric Straddle Stacker 4400 lb Cap., 189" Height EB20CS-189Li

The EKKO EB20CS-189Li Lithium Electric Straddle Stacker is designed with the combination of the versatility of a forklift, reach truck, and a walkie stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.

Made from high-quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.

Load Capacity 4400 lb
Battery 24V/150Ah Lithium
Raised Height 189" (15.75ft)
Side Shift
Adjustable Forks 8.7-32.1"
Adjustable Legs 39.8-55.5"
Fork Length 45.3"
Curtis Controller
24V AC Drive Motor
24V Lift Motor
Triple Mast
Polyurethane Wheels
Ergonomic Handle and Controls
Steel Construction
Robotic Welding
Charger 24V/50A Included
Batteries Included

Specifications and Details

Specification	EB20CS-189LI
Load Capacity (lb)	4400
Max Lifting Height (in)	189
Load Center Distance (in)	24
Fork Length (in)	45.3
Single Fork Width (in)	3.9
Overall Fork Width (in)	8.7-32.1
Lowered Fork Height (in)	2.6
Overall Length (in)	81.9
Adjustable Legs (in)	39.8-55.5
Turning Radius (in)	65
Min. Ground Clearance (in)	1.2
Extended Mast Height (in)	217.7
Lowered Mast Height (in)	83.1
Battery Voltage / Capacity	24V / 150Ah Lithium
Charger	24V / 50A
Lifting Motor	3000 W
Driving Motor	1500 W
Service Weight (lb)	3000
