Home > EKKO > EKKO Lithium Electric Straddle Stacker 2800 lb Cap., 119" Height EB13E-Li
EKKO Lithium Electric Straddle Stacker 2800 lb Cap., 119" Height EB13E-Li

EKKO Lithium Electric Straddle Stacker 2800 lb Cap., 119" Height EB13E-Li

EKKO  | Authorized Dealer  |  SKU: EB13E-LI

$6,043.00 - $6,043.00
$6,043.00
$6,043.00 - $6,043.00
$6,043.00
+ FREE SHIPPING
Availability:
In stock

Get A Quote

✓ Free Shipping - on most EKKO products
✓ Manufacturer Warranty Included - on all EKKO
✓ 0% Financing Available - EKKO + 0% APR, Applicable at Checkout
✓ In Stock - most orders leave the warehouse in 3-5 business days
✓ Questions? - Call ‪(866) 412-1837

Want today's EKKO prices but not ready for delivery?

No problem! All orders receive special attention and in most cases we can hold items and begin processing at a later date! Please contact us for more details!

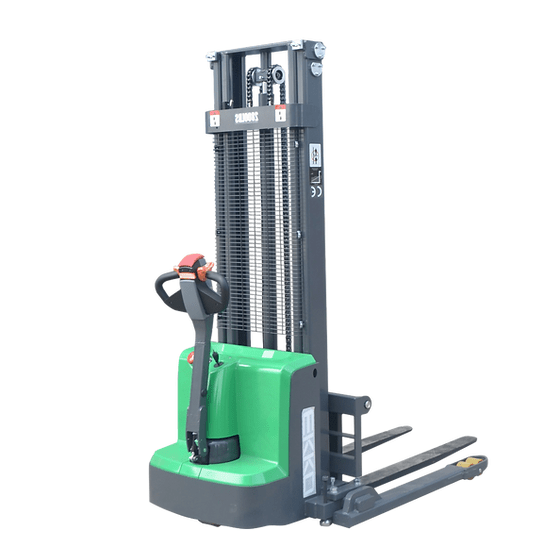

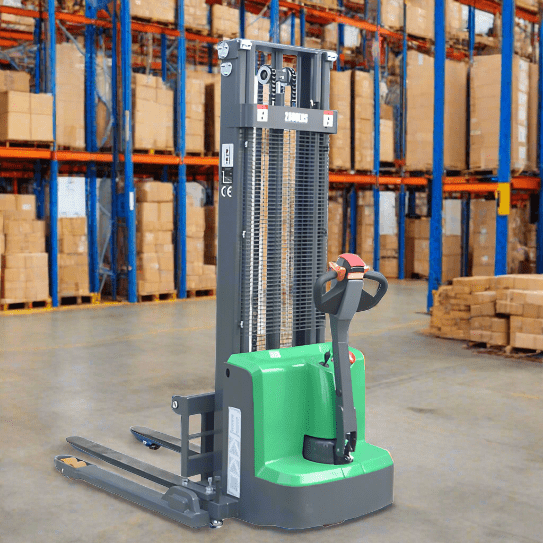

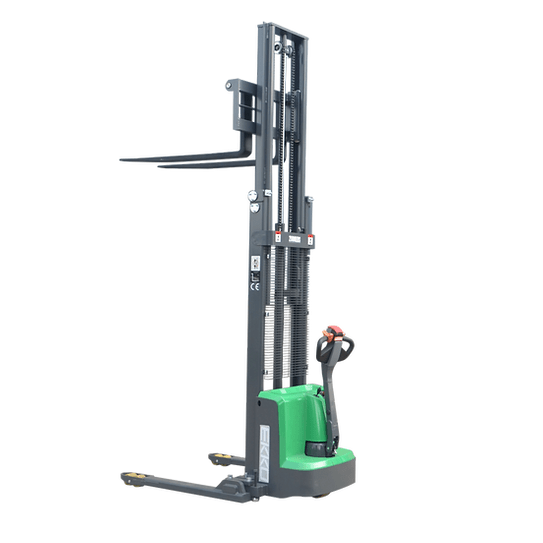

EKKO Lithium Electric Straddle Stacker 2800 lb Cap., 119" Height EB13E-Li

The EKKO EB13E-Li Lithium Electric Straddle Stacker is designed with the combination of the versatility of a forklift, reach truck and a walkie stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.

Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.

  • Load Capacity 2800 lb
  • Raised Height 119”
  • Adjustable Forks 8.3-33.5“
  • Adjustable Legs 45.7-59.1”
  • Fork Length 45.3“
  • Curtis Instrument Controller
  • 24V Center Drive Motor
  • 24V Lift Motor
  • Battery 24V/50Ah Lithium
  • Polyurethane Wheels
  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • 3 Year Limited Warranty



About EKKO Lifts

Specification



Model EB13E-LI
Load capacity 2800 lbs
The max. lifting height 119” in
Load center distance 24 in
Fork length 45.3 in
Single fork width 4 in
Overall fork width 8.3-33.5 in
Lowered fork height 2.35 in
Fixed leg length 36.5 in
Adjustable legs 45.5-59.1 in
Turning radius 52.6 in
Overall length 70 in
Max Overall width 61 in
Extended mast height 135 in
Lowered mast height 82 in
Battery voltage (dimensions) 24V/50Ah Lithium
Internal Charger 24V/15A
Lifting Motor 2.2kw. Lift speed, laden/unladen:92/136mm/s Lowering speed, laden/unladen:112/98mm/s
Driving Motor 0.75kw.Driving speed: laden/unladen:4.0/4.2km/h
Service Weight 1325 lbs



Product Documents

Product Specs

Product Service Manual

Warranty
