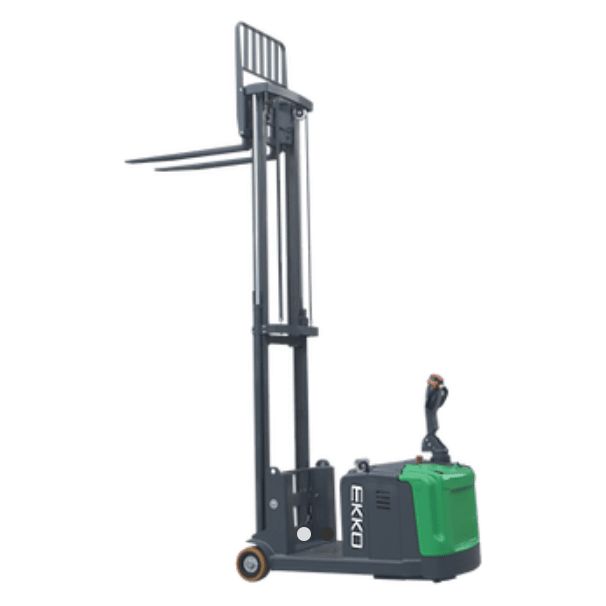

EKKO Lithium Counterbalanced Walkie Stacker SIDE-SHIFTING EK14S-189Li

Name: EKKO Lithium Counterbalanced Walkie Stacker SIDE-SHIFTING EK14S-189Li
Brand: EKKO
SKU: EK14S-189LI
Price: 21118.0 USD
Availability: InStock

EKKO | Authorized Dealer | SKU: EK14S-189LI

$21,118.00 - $21,118.00

$21,118.00

$21,118.00 - $21,118.00

$21,118.00

+ FREE SHIPPING

Availability:

In stock

Get A Quote

✓ Free Shipping - on most EKKO products
✓ Manufacturer Warranty Included - on all EKKO
✓ 0% Financing Available - EKKO + 0% APR, Applicable at Checkout
✓ In Stock - most orders leave the warehouse in 3-5 business days
✓ Questions? - Call ‪(866) 412-1837

Quantity

Want today's EKKO prices but not ready for delivery?

No problem! All orders receive special attention and in most cases we can hold items and begin processing at a later date! Please contact us for more details!

EKKO Lithium Counterbalanced Walkie Stacker SIDE-SHIFTING EK14S-189Li

The EKKO EK14S-189Li Fully Powered Counterbalanced Walkie Stacker includes SIDE-SHIFTING and is designed with the combination of the versatility of forklift and a walkie stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.

Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.

Load Capacity 3300 lb
Raised Height 189" (15.75ft)
SIDE-SHIFTING
Adjustable Forks 8.6-28.3"
Fork Length 45.3"
Tilt 2/5 Degree
Curtis Controller
24V AC Drive Motor
24V Lift Motor
EPS (Electronic Power Steering)
Polyurethane Wheels
Ergonomic Handle and Controls
Steel Construction
Robotic Welding
Charger Included
Batteries Included
3 Years Limited Warranty

About EKKO Lifts

Specification

Model	EK14S-189LI
Lift	Electric
Drive	Electric
Load capacity	3,300
Load center distance	24 in
Wheel base	47 in
Lifting height	189 in
SIDE-SHIFTING	4 in
Lowered mast height	84.6 in
Extended mast height	226 in
Mast/Fork carriage tilt forward/backward	2/5
Overall length	105 in
Overall width	39 in
Fork size, Thick/Width/Length	1.4/4/37 in
Fork adjust width	8.6-28.3 in
Turning radius	62 in
Max.gradient performance, laden/unladen	6/10
Lift speed, laden/unladen	4/5.5 in
Lowering speed, laden/unladen	5.3/4.7 in
Charger	24V/50A
Driving Motor	AC 24V/2500W
Lifting Motor	24V/3000W
EPS Steering Motor	24/200W
Battery voltage	24V/150Ah Lithium
Service Weight	4350 lbs
