Home > EKKO > EKKO Lithium Counterbalanced Walkie Stacker, Side Shifting EK14CS-189Li

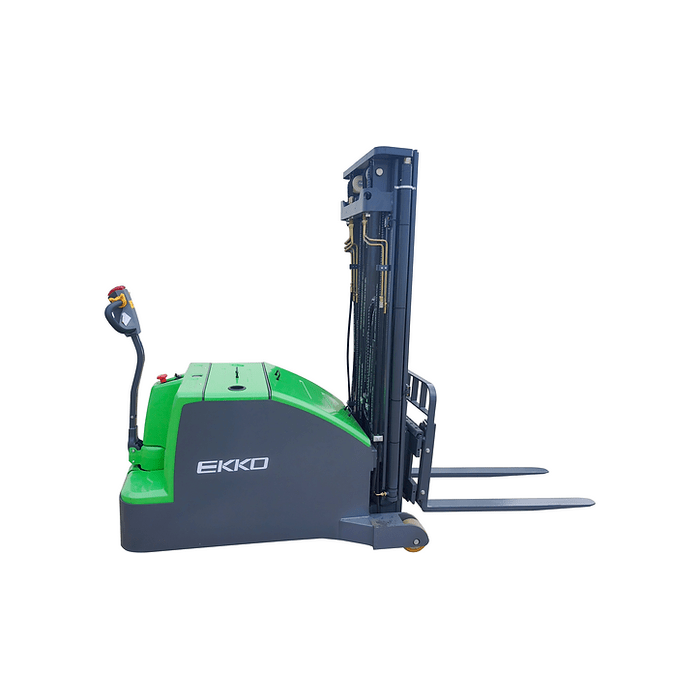

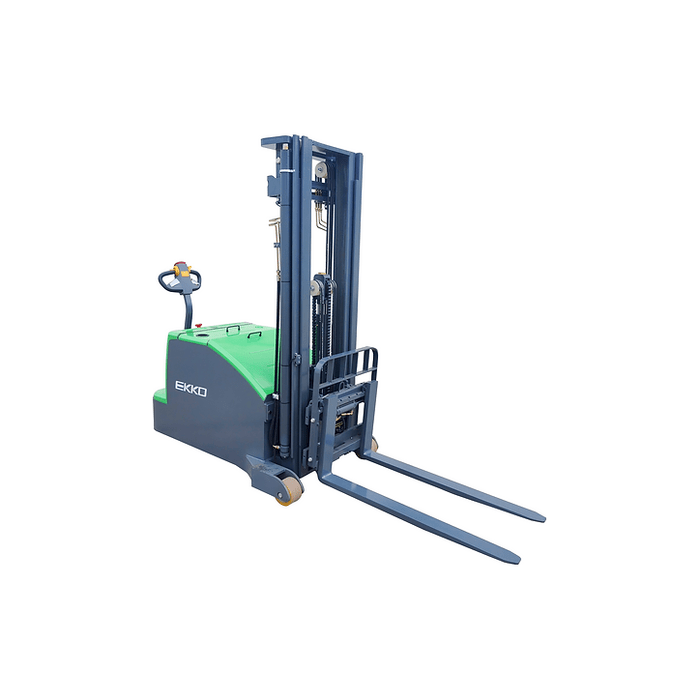

EKKO Lithium Counterbalanced Walkie Stacker, Side Shifting EK14CS-189Li

EKKO Lithium Counterbalanced Walkie Stacker, Side Shifting EK14CS-189Li

EKKO  | Authorized Dealer  |  SKU: EK14CS-189LI

$23,038.00 - $23,038.00
$23,038.00
$23,038.00 - $23,038.00
$23,038.00
+ FREE SHIPPING
Availability:
In stock

Get A Quote

✓ Free Shipping - on most EKKO products
✓ Manufacturer Warranty Included - on all EKKO
✓ 0% Financing Available - EKKO + 0% APR, Applicable at Checkout
✓ In Stock - most orders leave the warehouse in 3-5 business days
✓ Questions? - Call ‪(866) 412-1837

Want today's EKKO prices but not ready for delivery?

No problem! All orders receive special attention and in most cases we can hold items and begin processing at a later date! Please contact us for more details!

EKKO Lithium Counterbalanced Walkie Stacker, Side Shifting EK14CS-189Li

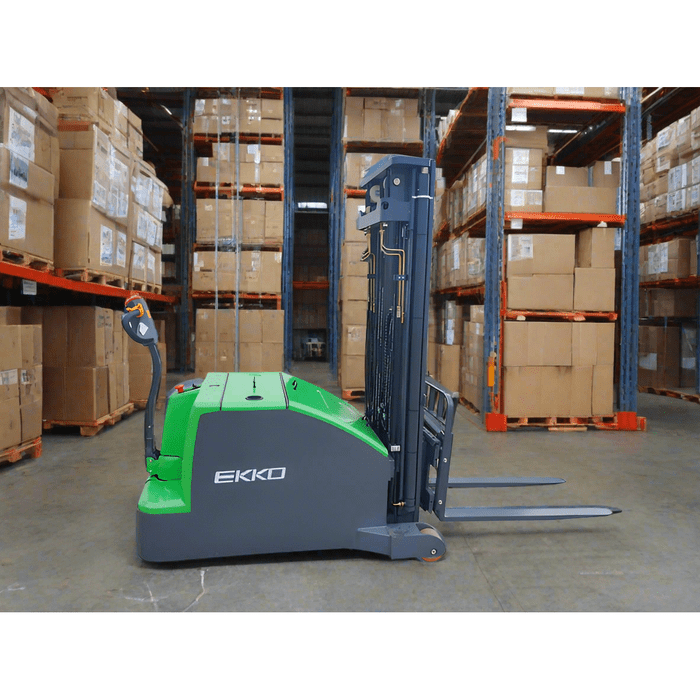

The EKKO EK14CS-189Li Lithium Counterbalanced Walkie Stacker is designed with the combination of the versatility of forklift and a walkie stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.

Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.

  • Load Capacity 3000 lb
  • Raised Height 189" (15.75ft)
  • Side-Shifting
  • Adjustable Forks 8.6-26"
  • Fork Length 42.1"
  • Tilt 2/5 Degree
  • Curtis Controller
  • 24V AC Drive Motor
  • 2.2kw Lift Motor
  • Polyurethane Wheels
  • Ergonomic Handle and Controls
  • Synchronous Proportional Valve
  • Steel Construction
  • Robotic Welding
  • Charger Included
  • Battery Included
  • 3 Years Limited Warranty

Specifications

Model EK14CS-189Li
Lift Electric
Drive Electric
Load capacity 3000 (lb)
Load center distance 24 (in)
Wheel base 47 (in)
Lifting height 189 (in)
Side Shifting 4 (in)
Lowered mast height 84.3 (in)
Extended mast height 217.2 (in)
Mast/Fork carriage tilt forward/backward 2/5 ( °)
Overall length 122.6 (in)
Overall width 42.1 (in)
Fork size, Thick/Width/Length 1.4/4/42.1 (in)
Fork adjust width 8.6-26 (in)
Turning radius 57 (in)
Max.gradient performance, laden/unladen 6/10 (%)
Lift speed, laden/unladen 2.95/3.94 (in/s)
Lowering speed, laden/unladen 5.3/4.7 (in/s)
Charger 24V/50A
Driving Motor AC 24V/2500W
Lifting Motor 24V/2500W
EPS Steering Motor 24/200W
Battery voltage 24V/150Ah Lithium
Service Weight 4145 (lb)
