Home > EKKO > EKKO Lithium Counterbalanced Walkie Stacker EK14CS-130Li

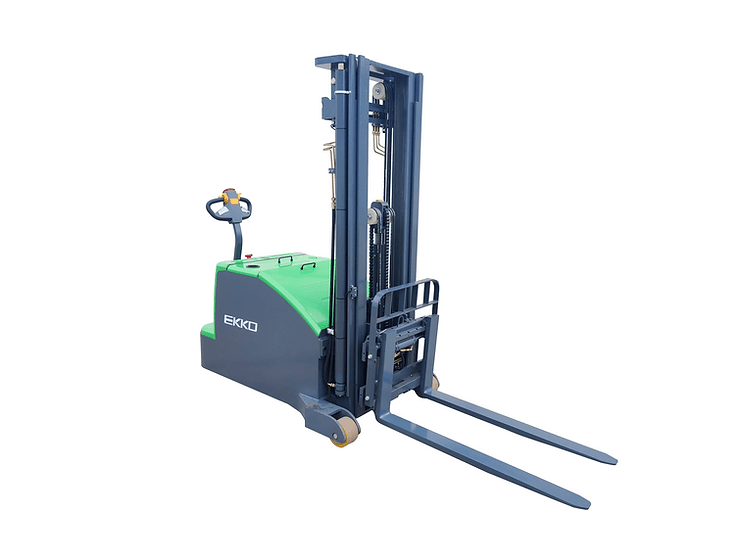

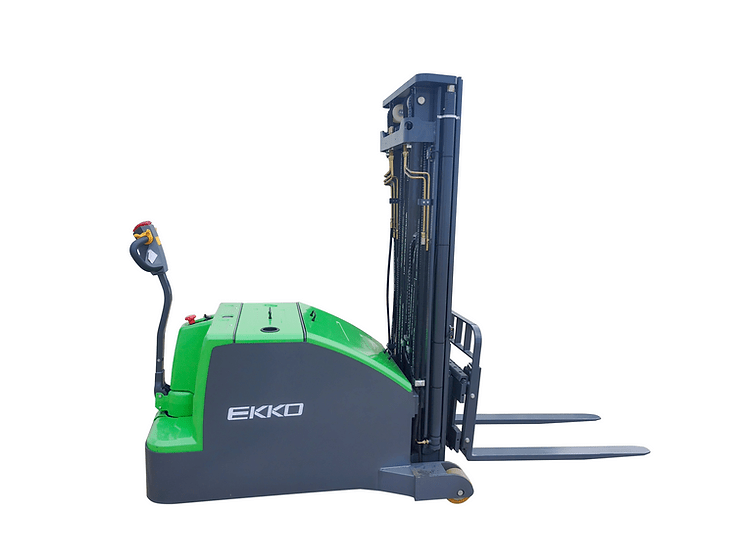

EKKO Lithium Counterbalanced Walkie Stacker EK14CS-130Li

EKKO Lithium Counterbalanced Walkie Stacker EK14CS-130Li

EKKO  | Authorized Dealer  |  SKU: EK14CS-130LI

$19,198.00 - $19,198.00
$19,198.00
$19,198.00 - $19,198.00
$19,198.00
+ FREE SHIPPING
Availability:
In stock

Get A Quote

✓ Free Shipping - on most EKKO products
✓ Manufacturer Warranty Included - on all EKKO
✓ 0% Financing Available - EKKO + 0% APR, Applicable at Checkout
✓ In Stock - most orders leave the warehouse in 3-5 business days
✓ Questions? - Call ‪(866) 412-1837

Want today's EKKO prices but not ready for delivery?

No problem! All orders receive special attention and in most cases we can hold items and begin processing at a later date! Please contact us for more details!

EKKO Lithium Counterbalanced Walkie Stacker EK14CS-130Li

The EKKO EK14CS-130Li Lithium Counterbalanced Walkie Stacker is designed with the combination of the versatility of forklift and a walkie stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.

Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.

  • Load Capacity 3000 lb
  • Raised Height 130" (10.83ft)
  • Side-Shifting
  • Adjustable Forks 8.6-26"
  • Fork Length 42.1"
  • Tilt 2/5 Degree
  • Curtis Controller
  • 24V AC Drive Motor
  • 2.2kw Lift Motor
  • Polyurethane Wheels
  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • Charger Included
  • Battery Included
  • 3 Years Limited Warranty

Product Info

Model



EK14CS-130Li

Lift



Electric

Drive



Electric

Load capacity

(lb)

3000

Load center distance

(in)

24

Wheel base

(in)

47

Lifting height

(in)

130

Side Shifting

(in)

4

Lowered mast height

(in)

85.6

Extended mast height

(in)

158.7

Mast/Fork carriage tilt forward/backward

( °)

2/5

Overall length

(in)

118

Overall width

(in)

42.1

Fork size, Thick/Width/Length

(in)

1.4/4/42.1

Fork adjust width

(in)

8.6-26

Turning radius

(in)

57

Max.gradient performance,  laden/unladen

(%)

6/10

Lift speed, laden/unladen

(in/s)

2.95/3.94

Lowering speed, laden/unladen

(in/s)

5.3/4.7

Charger

(V/A)

24V/50A

Driving Motor

(V/W)

AC 24V/2500W

Lifting Motor

(V/W)

24V/2500W

EPS Steering Motor

(V/W)

24/200W

Battery voltage

(V/Ah)

24V/150Ah Lithium

Service Weight

(lb)

4330
