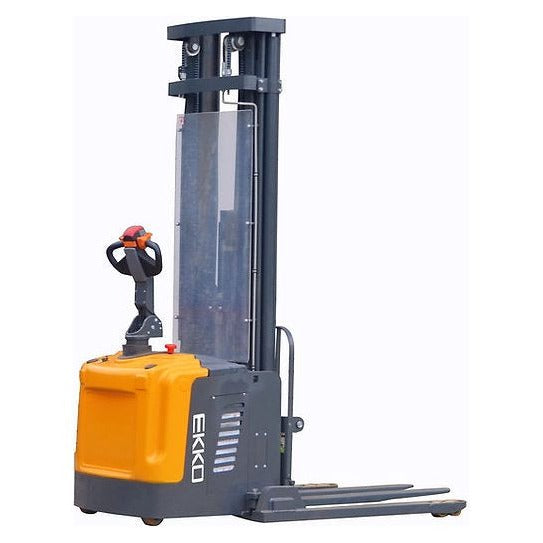

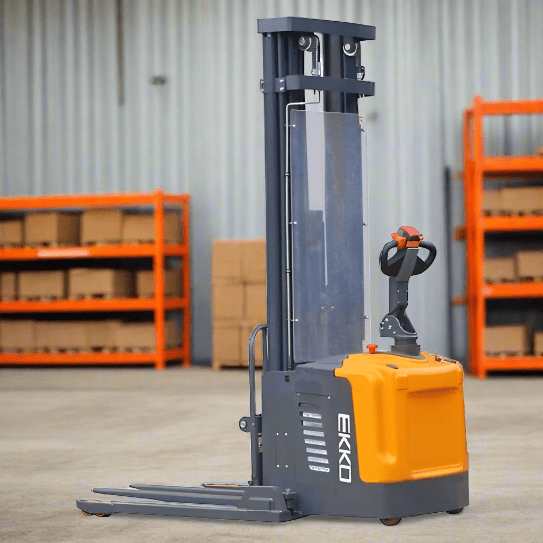

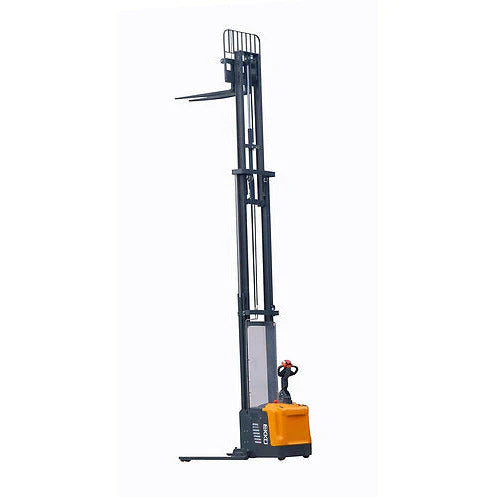

EKKO Full Powered Straddle Stacker 4400 lb Cap., 216" Height EB16EA

The EKKO EB16EA Electric Straddle Stacker is designed with the combination of the versatility of a forklift, reach truck and a walkie stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.

Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.

Load Capacity 4400 lb
Raised Height 216”
Adjustable Forks 9.8-31.5“
Adjustable Legs 38.06-51.8”
Fork Length 45.28“
Free Lift 76.25”
EPS (Electric Power Steering)
Curtis Instrument Controller
24V Center AC Drive Motor
24V Lift Motor
Triple Mast
Battery 24V/210Ah
Polyurethane Wheels
Ergonomic Handle and Controls
Steel Construction
Robotic Welding
3 Year Limited Warranty

About EKKO Lifts

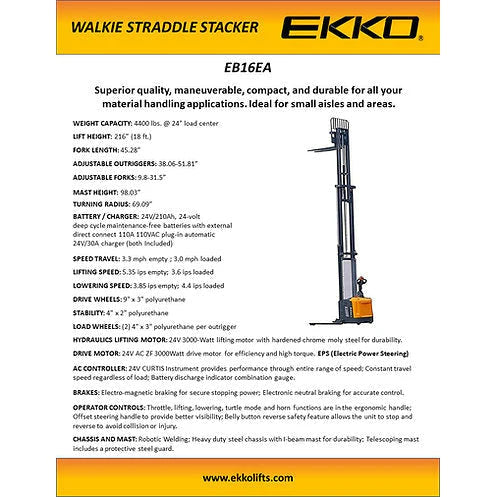

Specification

Model	EB16EA
Load capacity	4400 lbs
The max. lifting height	216 in
Load center distance	24 in
Free Lift	76.25 in
EPS (Elec. Power Steer)	Yes
Fork length	45.28 in
Single fork width	4.7 in
Overall fork width	9.8-31.5 in
Lowered fork height	1.58 in
Fixed leg length	42 in
Adjustable legs	38.06-51.81 in
Turning radius	69.09 in
Overall length	81.69 in
Max width	46.93-60.71 in
Extended mast height	253.15 in
Lowered mast height	98.03 in
Battery voltage	24/210Ah
Charger	24V/30A
Lifting Motor	3000 Watt, Lift speed, laden/unladen:95/160m/s Lowering speed, laden/unladen:130/110mm/s
AC Driving Motor	3000 Watt, Driving speed: laden/unladen: 5.2/5.5km/h
Service Weight	3542 lbs
