EKKO Full Powered Straddle Stacker 4400 lb Cap., 177" Height EB20E

Name: EKKO Full Powered Straddle Stacker 4400 lb Cap., 177" Height EB20E
Brand: EKKO
SKU: EB20E
Price: 16502.0 USD
Availability: InStock

EKKO | Authorized Dealer | SKU: EB20E

$16,502.00 - $16,502.00

$16,502.00

$16,502.00 - $16,502.00

$16,502.00

+ FREE SHIPPING

Availability:

In stock

Get A Quote

✓ Free Shipping - on most EKKO products
✓ Manufacturer Warranty Included - on all EKKO
✓ 0% Financing Available - EKKO + 0% APR, Applicable at Checkout
✓ In Stock - most orders leave the warehouse in 3-5 business days
✓ Questions? - Call ‪(866) 412-1837

Quantity

Want today's EKKO prices but not ready for delivery?

No problem! All orders receive special attention and in most cases we can hold items and begin processing at a later date! Please contact us for more details!

EKKO Full Powered Straddle Stacker 4400 lb Cap., 177" Height EB20E

The EKKO EB20E Electric Straddle Stacker is designed with the combination of the versatility of a forklift, reach truck and a walkie stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.

Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.

Load Capacity 4400 lb
Raised Height 177" (14.75ft)
Adjustable Forks 9.8-31.5"
Adjustable Legs 45.5-59.1"
Fork Length 45.3"
Curtis Controller
24V AC Drive Motor
24V Lift Motor
Triple Mast
Battery 24V/210Ah
Polyurethane Wheels
Ergonomic Handle and Controls
Steel Construction
Robotic Welding
Charger 24V/30A Included
Batteries Included
3 Years Limited Warranty

About EKKO Lifts

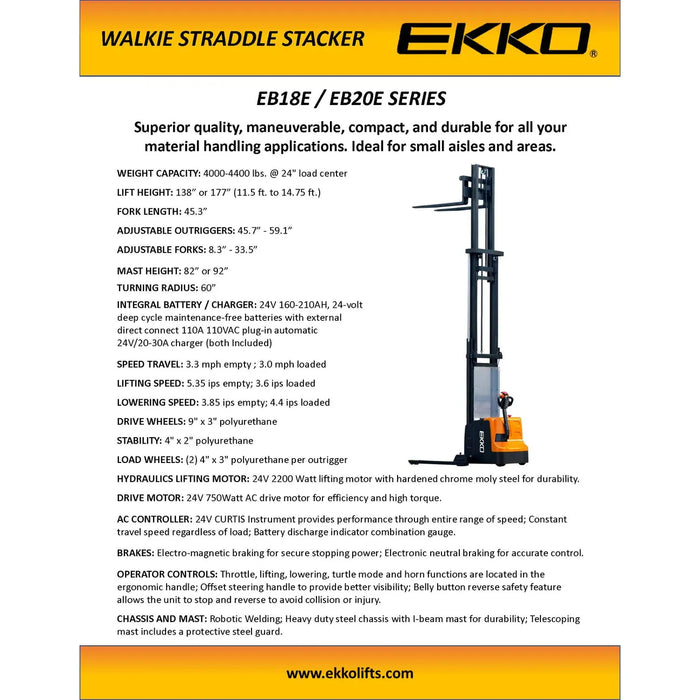

Specification

Model	EB20E
Load capacity	4400 lbs
The max. lifting height	177 in
Load center distance	24 in
Fork length	45.3 in
Single fork width	4.7 in
Overall fork width	9.8-31.5 in
Lowered fork height	3 in
Fixed leg length	42 in
Adjustable legs	45.5-59.1 in
Turning radius	60 in
Overall length	85 in
Max width	61 in
Extended mast height	198 in
Lowered mast height	85 in
Battery voltage	24/210Ah
The charger	24V/30A
Lifting Motor	3000W, Lift speed, laden/unladen:92/136mm/s Lowering speed, laden/unladen:112/98mm/s
Driving Motor	1500W, Driving speed: laden/unladen:4.0/4.2km/h
Service Weight	2800 lbs

Product Documents

Product Specs

Product User Manual

Product Service Manual

Warranty
