EKKO Full Powered Straddle Stacker 4000 lb Cap., 138" Height EB18E

EKKO Full Powered Straddle Stacker 4000 lb Cap., 138" Height EB18E

EKKO  | Authorized Dealer  |  SKU: EB18E

$12,478.00 - $12,478.00
$12,478.00
$12,478.00 - $12,478.00
$12,478.00
+ FREE SHIPPING
Availability:
In stock

Get A Quote

✓ Free Shipping - on most EKKO products
✓ Manufacturer Warranty Included - on all EKKO
✓ 0% Financing Available - EKKO + 0% APR, Applicable at Checkout
✓ In Stock - most orders leave the warehouse in 3-5 business days
✓ Questions? - Call ‪(866) 412-1837

Want today's EKKO prices but not ready for delivery?

No problem! All orders receive special attention and in most cases we can hold items and begin processing at a later date! Please contact us for more details!

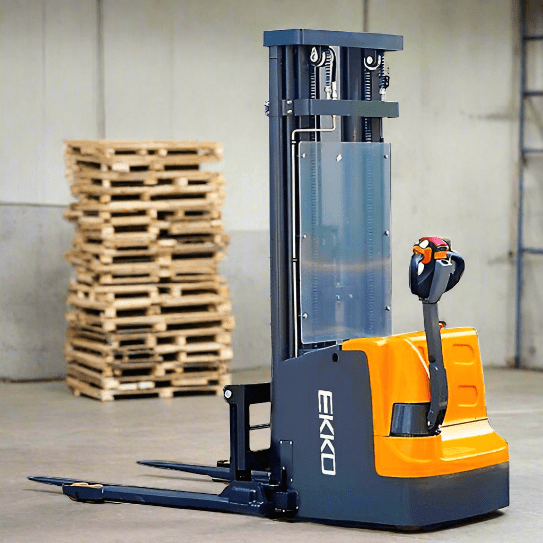

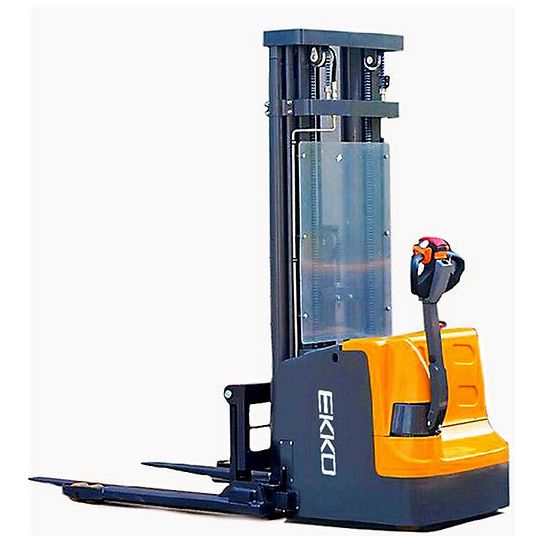

EKKO Full Powered Straddle Stacker 4000 lb Cap., 138" Height EB18E

The EKKO EB18E Electric Straddle Stacker is designed with the combination of the versatility of a forklift, reach truck and a walkie stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.

Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.

  • Load Capacity 4000 lb
  • Raised Height 138" (11.5ft)
  • Adjustable Forks 9.8-31.5"
  • Adjustable Legs 45.5-59.1"
  • Fork Length 45.3"
  • Curtis Controller
  • 24V AC Drive Motor
  • 24V Lift Motor
  • Battery 24V/160Ah
  • Polyurethane Wheels
  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • Charger 24V/20A Included
  • Batteries Included
  • 3 Years Limited Warranty



About EKKO Lifts

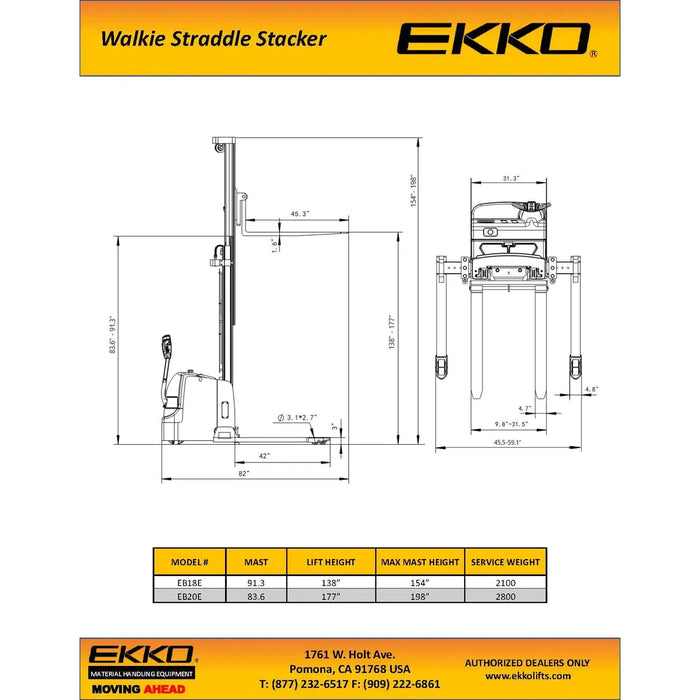

Specification

Model EB18E
Load capacity 4000 lbs
The max. lifting height 138 in
Load center distance 24 in
Fork length 45.3 in
Single fork width 4.7 in
Overall fork width 9.8-31.5 in
Lowered fork height 2.35 v
Fixed leg length 36.5 in
Adjustable legs 45.5-59.1 in
Turning radius 60 in
Overall length 82 in
Max width 61 in
Extended mast height 154 in
Lowered mast height 91.3 in
Battery voltage 2x12V/160Ah
The charger 24V/20A
Lifting Motor 3000 Watt, Lift speed, laden/unladen:92/136mm/s Lowering speed, laden/unladen:112/98mm/s
Driving Motor 1500 Watt, Driving speed: laden/unladen:4.0/4.2km/h
Service Weight 2100 lbs



Product Documents

Product Specs

Product User Manual

Product Service Manual
