Home > EKKO > EKKO Full Powered Straddle Stacker 3000 lb Cap., 145.67" Height EB12EA
EKKO Full Powered Straddle Stacker 3000 lb Cap., 145.67" Height EB12EA

EKKO Full Powered Straddle Stacker 3000 lb Cap., 145.67" Height EB12EA

EKKO  | Authorized Dealer  |  SKU: EB12EA

$8,554.00 - $8,554.00
$8,554.00
$8,554.00 - $8,554.00
$8,554.00
+ FREE SHIPPING
Availability:
In stock

Get A Quote

✓ Free Shipping - on most EKKO products
✓ Manufacturer Warranty Included - on all EKKO
✓ 0% Financing Available - EKKO + 0% APR, Applicable at Checkout
✓ In Stock - most orders leave the warehouse in 3-5 business days
✓ Questions? - Call ‪(866) 412-1837

Want today's EKKO prices but not ready for delivery?

No problem! All orders receive special attention and in most cases we can hold items and begin processing at a later date! Please contact us for more details!

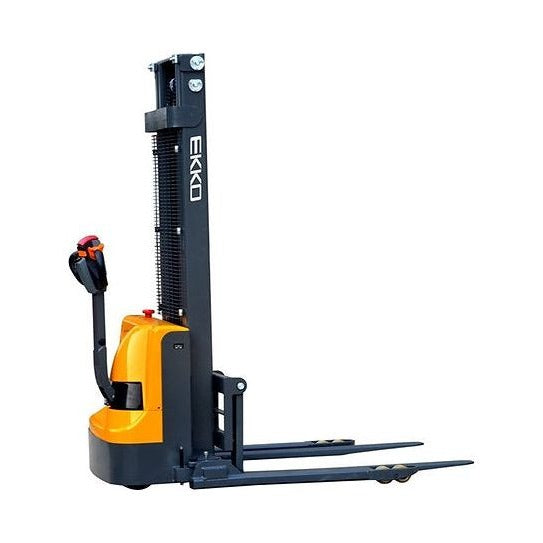

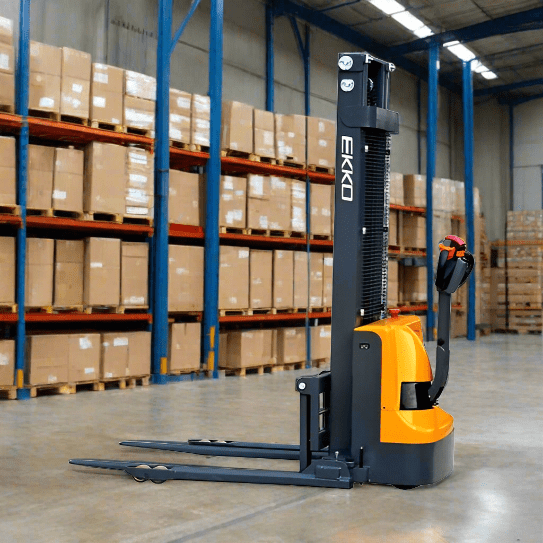

EKKO Full Powered Straddle Stacker 3000 lb Cap., 145.67" Height EB12EA

The EKKO EB12EA Electric Straddle Stacker is designed with the combination of the versatility of a forklift, reach truck and a walkie stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.

Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.

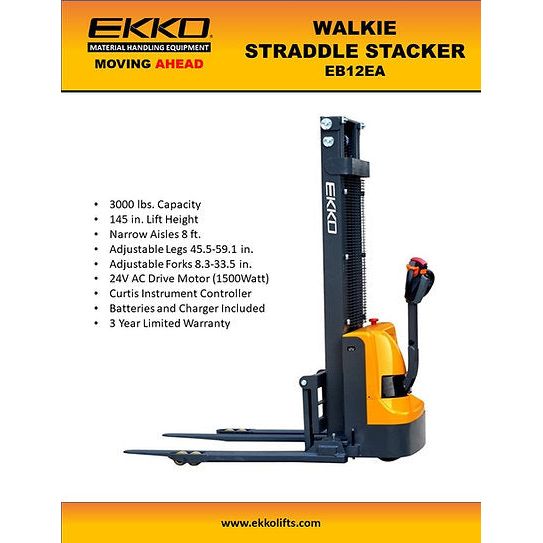

  • Load Capacity 3000 lb
  • Raised Height 145.67" (12.13ft)
  • Adjustable Forks 8.3-33.5"
  • Adjustable Legs 45.7-59.1"
  • Fork Length 45.3"
  • Curtis Controller
  • 24V AC Drive Motor 1500W
  • 24V Lift Motor
  • Internal Charger
  • Battery 2*12V/120Ah Included
  • Polyurethane Wheels
  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • Charger Included
  • 3 Years Limited Warranty



About EKKO Lifts

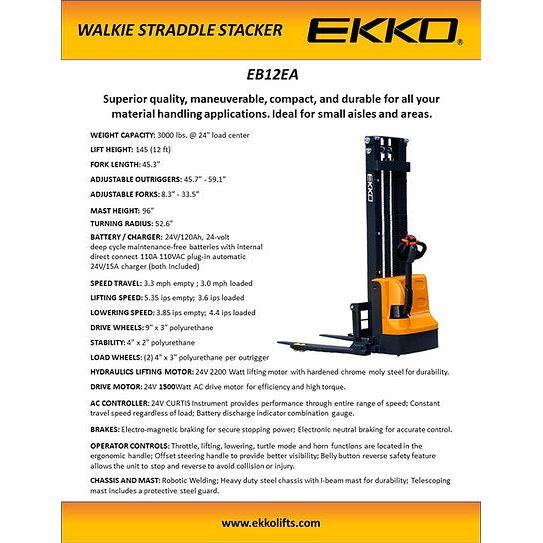

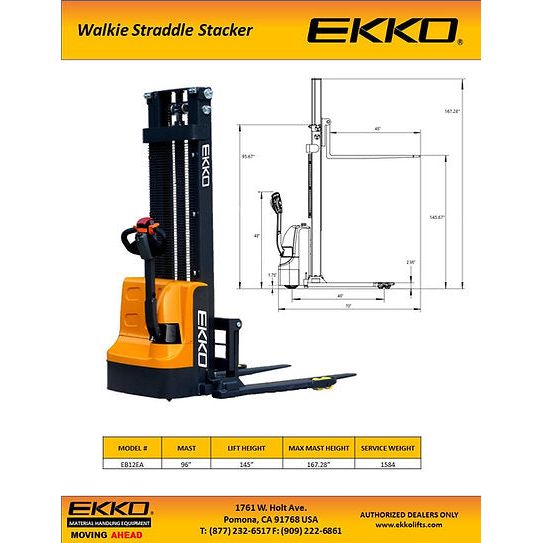

Specification

Model EB12EA
Load capacity 3000 lbs
The max. lifting height 145.67” in
Load center distance 24 in
Fork length 45.3 in
Single fork width 4 in
Overall fork width 8.3-33.5 in
Lowered fork height 2.35 in
Fixed leg length 36.5 in
Adjustable legs 45.5-59.1 in
Turning radius 52.6 in
Overall length 70 in
Max Overall width 61 in
Extended mast height 167.28 in
Lowered mast height 95.67 in
Battery voltage (dimensions) 2×12V/120AH（10/6.6/8.5）
Internal Charger 24V/15A
Lifting Motor 2200 Watt, Lift speed, laden/unladen:92/136mm/s Lowering speed, laden/unladen:112/98mm/s
Driving Motor 1500 Watt, Driving speed: laden/unladen: 4.0/4.2km/h
Service Weight 1584 lbs



Product Documents

Product Specs

Product User Manual

Product Service Manual

Warranty
