EKKO Full-Powered Lithium Pallet Jack 4000 lb Capacity EPF18Li

Name: EKKO Full-Powered Lithium Pallet Jack 4000 lb Capacity EPF18Li
Brand: EKKO
SKU: EPF18LI
Price: 2718.0 USD
Availability: InStock

EKKO | Authorized Dealer | SKU: EPF18LI

$2,718.00 - $2,718.00

$2,718.00

$2,718.00 - $2,718.00

$2,718.00

+ FREE SHIPPING

Availability:

In stock

Get A Quote

✓ Free Shipping - on most EKKO products
✓ Manufacturer Warranty Included - on all EKKO
✓ 0% Financing Available - EKKO + 0% APR, Applicable at Checkout
✓ In Stock - most orders leave the warehouse in 3-5 business days
✓ Questions? - Call ‪(866) 412-1837

Quantity

Want today's EKKO prices but not ready for delivery?

No problem! All orders receive special attention and in most cases we can hold items and begin processing at a later date! Please contact us for more details!

EKKO Full-Powered Lithium Pallet Jack 4000 lb Capacity EPF18Li

The EKKO EPF18LI Lithium Iron Phosphate Electric Walkie Pallet Jack is designed with the versatility of a pallet jack with full power lifting and driving capabilities. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.

Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.

Lithium 24V Powered
Load Capacity 4000 lb
Fork Size 27x48
Raised Height 7.87"
Lowered Height 2.95"
Pinwheel Capability
Polyurethane Wheels

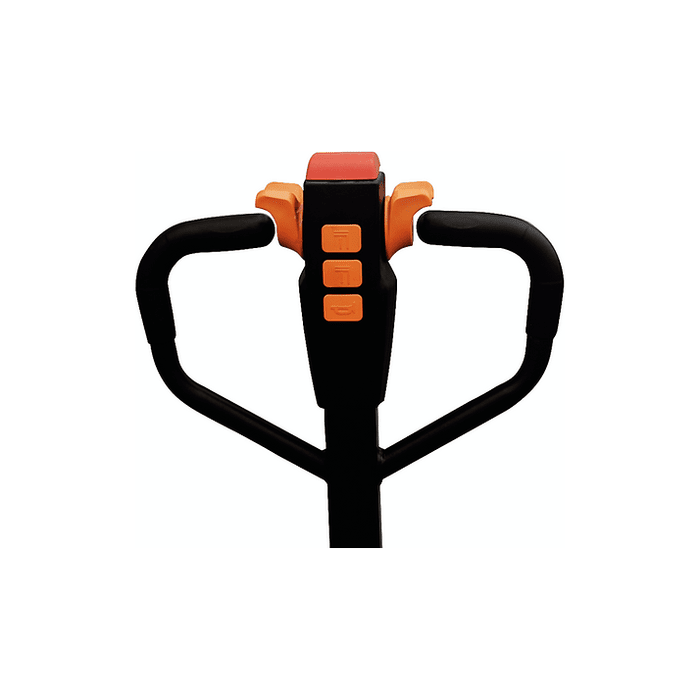

Ergonomic Handle and Controls
Steel Construction
Robotic Welding
Charger Included
(1) Lithium Iron Battery LiFePO4 Included 24V/40Ah
3 Years Limited Warranty

Specifications and Details

Specification	Unit / Type	Value
Model		EPF18LI
Drive type		Electric
Manner of operation		Walkie
Load Capacity	lbs	4000
Load Centre	in	23.6
Distance between fork backrest and front wheel	in	39.92
Wheel Base	in	51.69
Tire material		PU
Driving wheel size	Φ×w in	Φ8.27×2.76
Bearing wheel size	Φ×w in	Φ3.15×3.35
Qty of wheel, Front/Rear (x=driving wheel)		1x/2
Tread	in	21.06
Lifting Height	in	7.87
Height of handle in operation	in	29.13 / 45.67
Lowered fork height	in	2.95
Overall Length	in	65.86
Body Length	in	17.83
Overall Width	in	26.97
Fork Size	s/e/l in	1.97/5.91/48.03
Fork Width	in	26.97
Min. Ground clearance	in	1.38
Aisle width for pallets 39.37*47.24 crossways	in	73.78
Aisle width for pallets 31.5*47.24 lengthways	in	75.75
Turning Radius	in	57.8
Driving Speed, load/unload	km/h	4.2 / 4.5
Maximum gradeability, load/unload		5 / 10
Brake Type		Electromagnetic brake
Drive Motor	kW	0.75
Lift Motor	kW	0.8
Lithium LiFePO4 Battery voltage / rate capacity	V/Ah	24 / 40
Battery Weight (±5%)	lbs	22.4
Type of drive control		DC
Noise level	dB(A)	≤70
Service Weight (with battery)	lbs	370
