Home > EKKO > EKKO Full Electric Pallet Jack 3300 lb Capacity W/ PinPad EP15JLi
EKKO Full Electric Pallet Jack 3300 lb Capacity W/ PinPad EP15JLi

EKKO Full Electric Pallet Jack 3300 lb Capacity W/ PinPad EP15JLi

EKKO  | Authorized Dealer  |  SKU: EP15JLI

$2,718.00 - $2,718.00
$2,718.00
$2,718.00 - $2,718.00
$2,718.00
+ FREE SHIPPING
Availability:
In stock

Get A Quote

✓ Free Shipping - on most EKKO products
✓ Manufacturer Warranty Included - on all EKKO
✓ 0% Financing Available - EKKO + 0% APR, Applicable at Checkout
✓ In Stock - most orders leave the warehouse in 3-5 business days
✓ Questions? - Call ‪(866) 412-1837

Want today's EKKO prices but not ready for delivery?

No problem! All orders receive special attention and in most cases we can hold items and begin processing at a later date! Please contact us for more details!

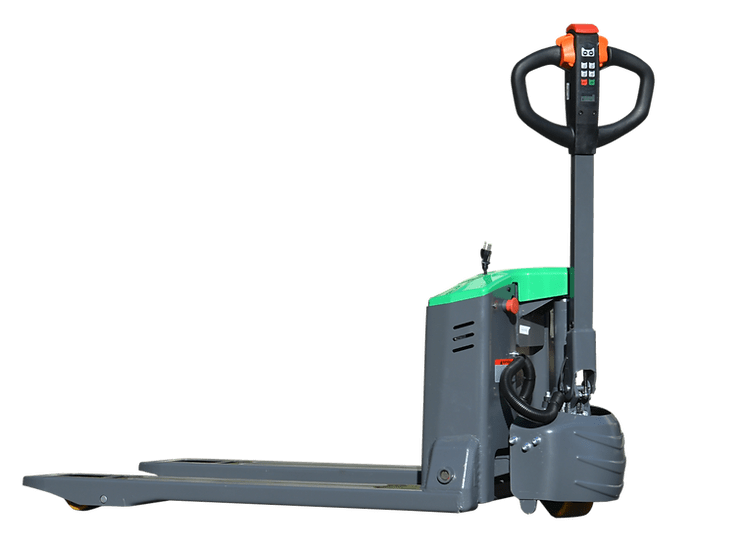

EKKO Full Electric Pallet Jack 3300 lb Capacity W/ PinPad EP15JLi

The EKKO EP-JLi series Lithium Iron Phospahte Electric Walkie Pallet Jacks are designed with the versatility of a pallet jack with full power lifting and driving capabilities. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.

Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.

  • Lithium 24V Powered
  • Load Capacity 3300 lb
  • Fork Size 27x45
  • Raised Height 7.87"
  • Lowered Height 3.35"
  • Pinwheel Capability
  • Polyurethane Wheels

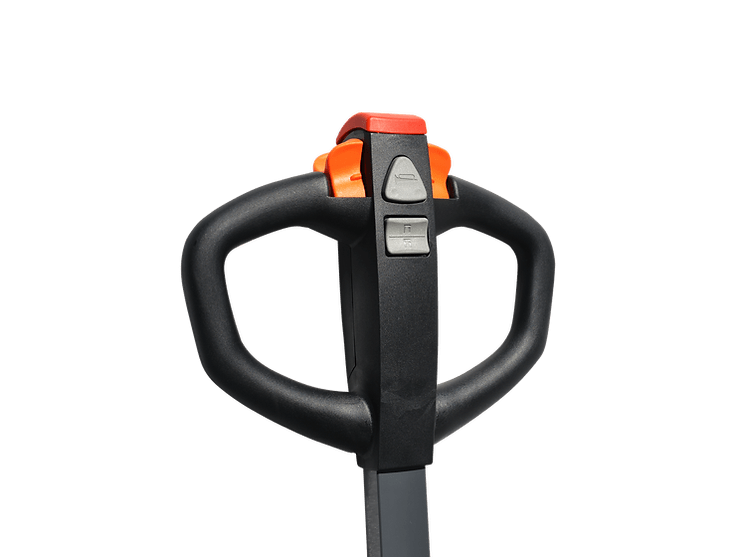

  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • Charger Included
  • (1) Lithium Iron LiFePO4 Battery
  • 3 Years Limited Warranty

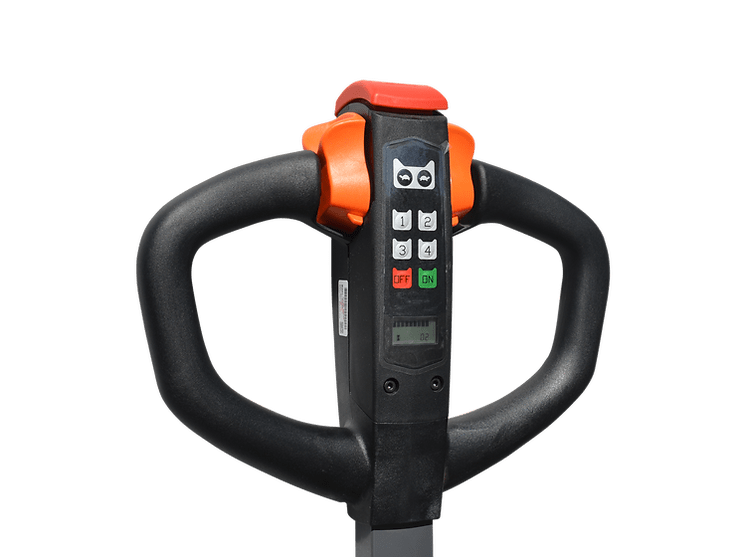

  • New with Pinpad

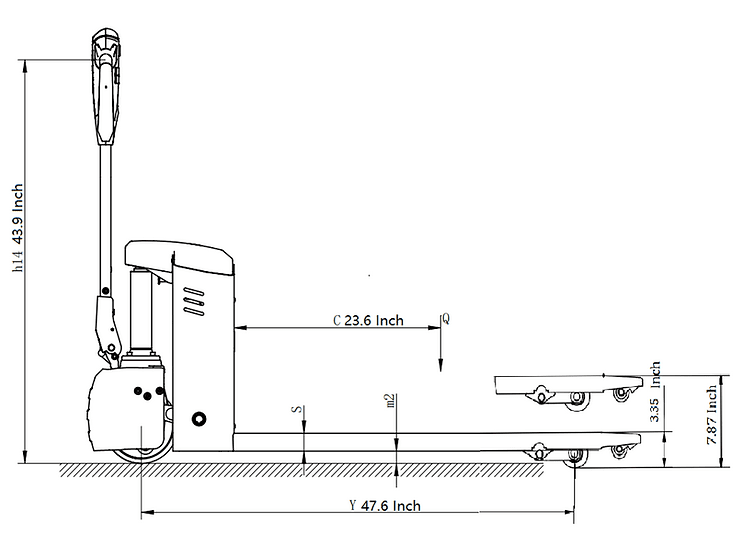

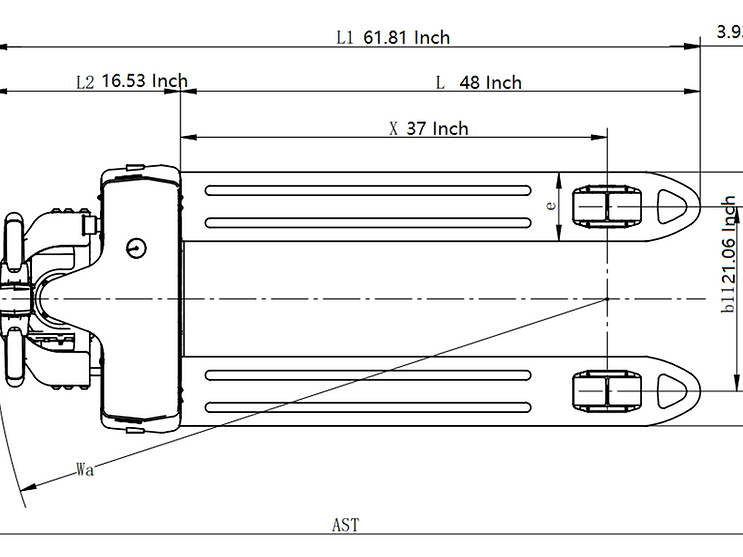

Specifications and Details

Model EP15JLI
Drive Type Electric
Manner of Operation Walkie
Load Capacity (Q) 3300 lbs
Load Centre (c) 23.6 in
Axle Centre to Fork Face (x) 37 in
Wheel Base (y) 47.6 in
Tire Material PU
Driving Wheel Size (Φ×w) Φ8.26 × 2.75 in
Bearing Wheel Size (Φ×w) Φ3.15 × 2.36 in
Qty of Wheels (Front/Rear) 1x / 2
Tread (b11) 21.06 in
Lifting Height (h3) 7.8 in
Handle Height in Operation (h14) 30.5 / 43.9 in
Lowered Fork Height (h13) 3.35 in
Overall Length (l1) 61.81 in
Body Length (l2) 16.53 in
Overall Width (b1/b2) 27 in
Fork Size (s/e/l) 1.97 / 5.9 / 45 in
Fork Width (b5) 27 in
Min. Ground Clearance (m2) 1.38 in
Aisle Width for Pallets 39.37×47.24 (Crossways) (Ast) 69.7 in
Aisle Width for Pallets 31.5×47.24 (Lengthways) (Ast) 71.6 in
Turning Radius (Wa) 53.7 in
Driving Speed (Load/Unload) 4.2 / 4.5 km/h
Maximum Gradeability (Load/Unload) 5% / 10%
Brake Type Electromagnetic Brake
Drive Motor 0.75 kW
Lift Motor 0.8 kW
Lithium LiFePO4 Battery (Voltage/Capacity) 24V / 30Ah
Battery Weight (±5%) 21.1 lbs
Type of Drive Control DC
Noise Level ≤70 dB(A)
Service Weight (with Battery) 308 lbs
