EKKO Full Electric Narrow Pallet Jack 4000 lb. Capacity EP18JNLI

EKKO Full Electric Narrow Pallet Jack 4000 lb. Capacity EP18JNLI

EKKO  | Authorized Dealer  |  SKU: EP18JNLI

$2,888.00 - $2,888.00
$2,888.00
$2,888.00 - $2,888.00
$2,888.00
+ FREE SHIPPING

0% APR financing available with Affirm — up to 12 months on purchases under $2,000, up to 24 months over $2,000. Subject to credit approval. See financing details

Availability:
In stock
Get Expert Pricing Call a Specialist — (866) 412-1837

Talk to a real specialist about pricing, freight and lead time. Mon–Fri, 9AM–6PM EST. We reply to quote requests within 24 hours on business days.

Authorized
EKKO Dealer
Free
Shipping
Price Match
Guarantee
Full Mfr
Warranty

Shipping & delivery on this item

  • Leaves the warehouse in 3–5 business days. You get a tracking number by email within 24 hours of dispatch.
  • Then 5–10 business days in transit. Times vary by distance and weight.
  • Ships from a US warehouse. Carriers are UPS, USPS or FedEx, or a freight carrier on large items.
  • This is a freight item. The carrier calls you to book a delivery appointment before it arrives. Delivery is curbside — plan to have help or equipment to move it, and note that installation is not included.
  • Inspect it before you sign. If anything is damaged in transit, email support@innovdepot.com the same day with photos (we usually need 3–5) and we replace it.
  • We cannot deliver to a PO Box.

Need it by a certain date, or not ready for delivery yet? Call (866) 412-1837 — in most cases we can hold the item and start processing later. Full shipping policy

Want today's EKKO prices but not ready for delivery?

No problem! All orders receive special attention and in most cases we can hold items and begin processing at a later date! Please contact us for more details!

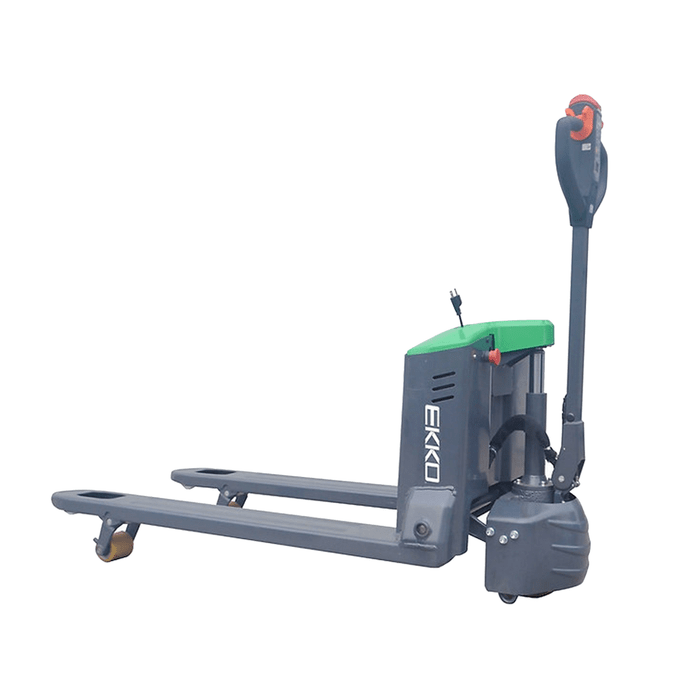

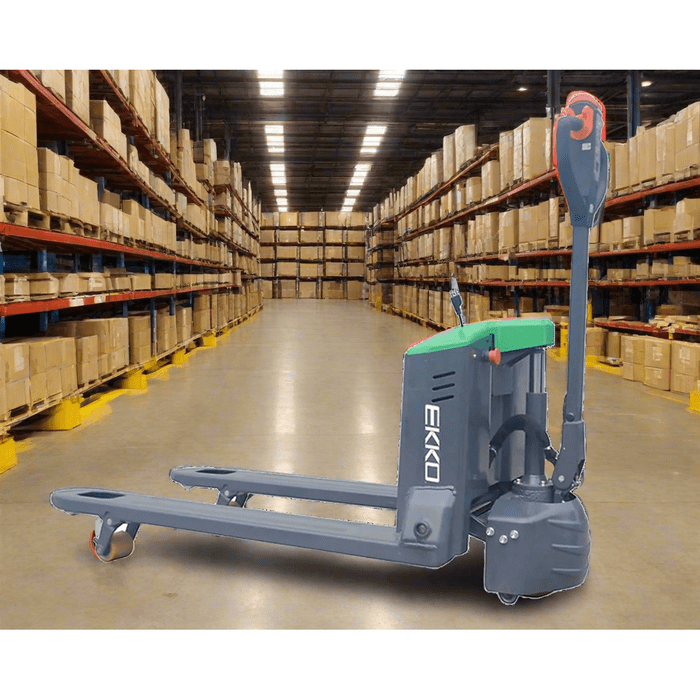

EKKO Full Electric Narrow Pallet Jack 4000 lb. Capacity EP18JNLI

The EKKO EP18JNLI Lithium Iron Phosphate Electric Narrow Walkie Pallet Jack is designed with the versatility of a pallet jack with full power lifting and driving capabilities. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors, and warehousing.

Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact, and directional changes for the use of any application with confidence and assurance.

  • Lithium 24V Powered
  • Load Capacity 4000 lb
  • Fork Size 22x45
  • Raised Height 7.8"
  • Lowered Height 3.35"
  • Pinwheel Capability
  • Polyurethane Wheels
  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • Charger Included
  • (1) Lithium Iron Battery LiFePO4 Included 24V/40Ah
  • 3 Years Limited Warranty

Specifications and Details

Specification Unit / Type Value
Model EP18JNLI
Drive type Electric
Manner of operation Walkie
Load Capacity lbs 4000
Load Centre in 23.6
Axle centre to fork face in 37
Wheel Base in 47.6
Tire material PU
Driving wheel size Φ×w in Φ8.26×2.75
Bearing wheel size Φ×w in Φ3.15×2.36
Qty of wheel, Front/Rear (x=driving wheel) 1x/2
Tread in 21.06
Lifting Height in 7.8
Height of handle in operation in 30.5 / 43.9
Lowered fork height in 3.35
Overall Length in 61.81
Body Length in 16.53
Overall Width in 22
Fork Size s/e/l in 1.97/5.9/45
Fork Width in 27
Min. Ground clearance in 1.38
Aisle width for pallets 39.37*47.24 crossways in 69.7
Aisle width for pallets 31.5*47.24 lengthways in 71.6
Turning Radius in 53.7
Driving Speed, load/unload km/h 4.2 / 4.5
Maximum gradeability, load/unload 5 / 10
Brake Type Electromagnetic brake
Drive Motor kW 0.75
Lift Motor kW 0.8
Lithium LiFePO4 Battery voltage / rate capacity V/Ah 24 / 40
Battery Weight (±5%) lbs 26.4
Type of drive control DC
Noise level dB(A) ≤70
Service Weight (with battery) lbs 320

Specifications

Model / SKUEP18JNLI
BrandEKKO
