EKKO Counterbalanced Walkie Stacker SIDE-SHIFTING EK14S-130

Name: EKKO Counterbalanced Walkie Stacker SIDE-SHIFTING EK14S-130
Brand: EKKO
SKU: EK14S-130
Price: 17598.0 USD
Availability: InStock

EKKO | Authorized Dealer | SKU: EK14S-130

$17,598.00 - $17,598.00

$17,598.00

$17,598.00 - $17,598.00

$17,598.00

+ FREE SHIPPING

Availability:

In stock

Get A Quote

✓ Free Shipping - on most EKKO products
✓ Manufacturer Warranty Included - on all EKKO
✓ 0% Financing Available - EKKO + 0% APR, Applicable at Checkout
✓ In Stock - most orders leave the warehouse in 3-5 business days
✓ Questions? - Call ‪(866) 412-1837

Quantity

Want today's EKKO prices but not ready for delivery?

No problem! All orders receive special attention and in most cases we can hold items and begin processing at a later date! Please contact us for more details!

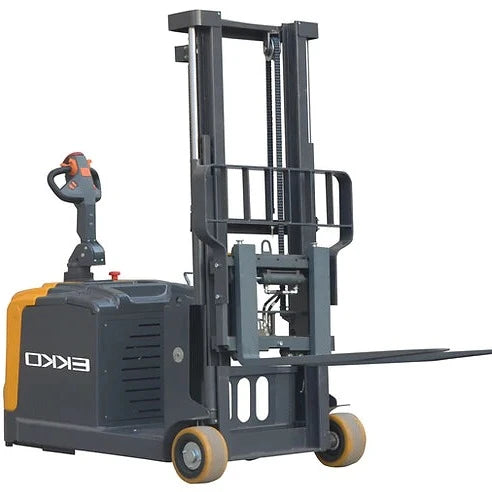

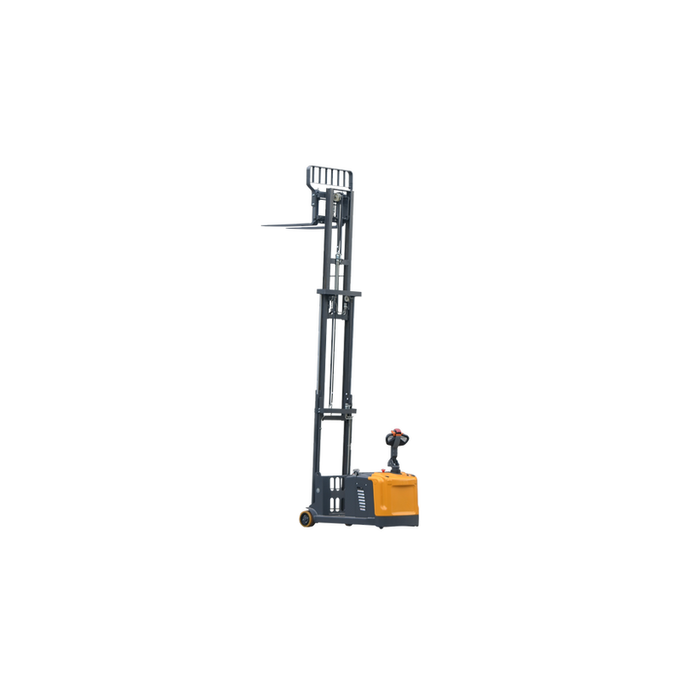

EKKO Counterbalanced Walkie Stacker SIDE-SHIFTING EK14S-130

The EKKO EK14S-130 Fully Powered Counterbalanced Walkie Stacker includes SIDE-SHIFTING and is designed with the combination of the versatility of forklift and a walkie stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.

Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.

Load Capacity 3300 lb
Raised Height 130" (10.83ft)
SIDE-SHIFTING
Adjustable Forks 8.6-28.3"
Fork Length 45.3"
Tilt 2/5 Degree
Curtis Controller
24V AC Drive Motor
24V Lift Motor
EPS (Electronic Power Steering)
Polyurethane Wheels
Ergonomic Handle and Controls
Steel Construction
Robotic Welding
Charger Included
Batteries Included
3 Years Limited Warranty

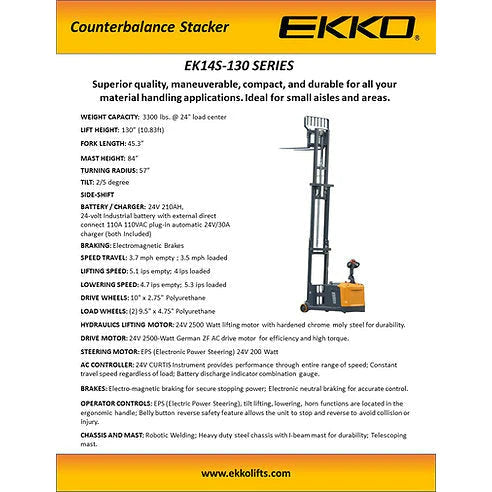

Specifications

Model	EK14S-130
Lift	Electric
Drive	Electric
Load Capacity	3300 lbs
Load Center Distance	24 in
Wheel Base (	47 in
Lifting Height	130 in
SIDE-SHIFTING	4 in
Lowered Mast Height	84 in
Extended Mast Height	167 in
Mast/Fork Carriage Tilt (°)	Forward/Backward (2/5)
Overall Length	109 in
Overall Width	39 in
Fork Size (Thick/Width/Length)	1.4/4/45.3
Fork Adjust Width	8.6-28.3 in
Turning Radius	57 in
Max. Gradient Performance, Laden/Unladen	6/10 %
Lift Speed, Laden/Unladen	4/5.1 in
Lowering Speed, Laden/Unladen	5.3/4.7 in
Charger	24V/30A
Driving Motor (V/W)	AC 24V/2500W
Lifting Motor (V/W)	24V/2500W
EPS Steering Motor (V/W)	24/200W
Battery Voltage (V/Ah)	24V/210Ah (Side)
Service Weight	3840 lbs
