EKKO Center-Controlled Rider Pallet Jack 5000lbs. Capacity EPC30A

Name: EKKO Center-Controlled Rider Pallet Jack 5000lbs. Capacity EPC30A
Brand: EKKO
SKU: EPC30A
Price: 15298.0 USD
Availability: InStock

EKKO | Authorized Dealer | SKU: EPC30A

$15,298.00 - $15,298.00

$15,298.00

$15,298.00 - $15,298.00

$15,298.00

+ FREE SHIPPING

Availability:

In stock

Get A Quote

✓ Free Shipping - on most EKKO products
✓ Manufacturer Warranty Included - on all EKKO
✓ 0% Financing Available - EKKO + 0% APR, Applicable at Checkout
✓ In Stock - most orders leave the warehouse in 3-5 business days
✓ Questions? - Call ‪(866) 412-1837

Quantity

Want today's EKKO prices but not ready for delivery?

No problem! All orders receive special attention and in most cases we can hold items and begin processing at a later date! Please contact us for more details!

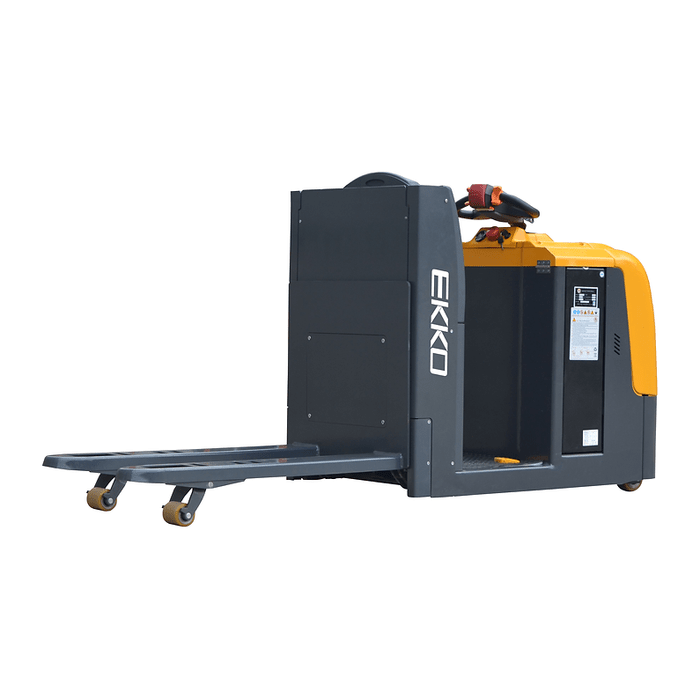

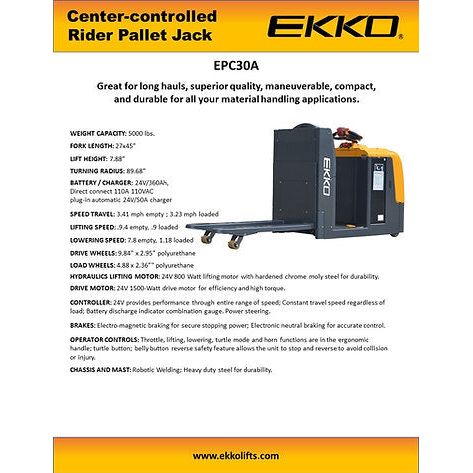

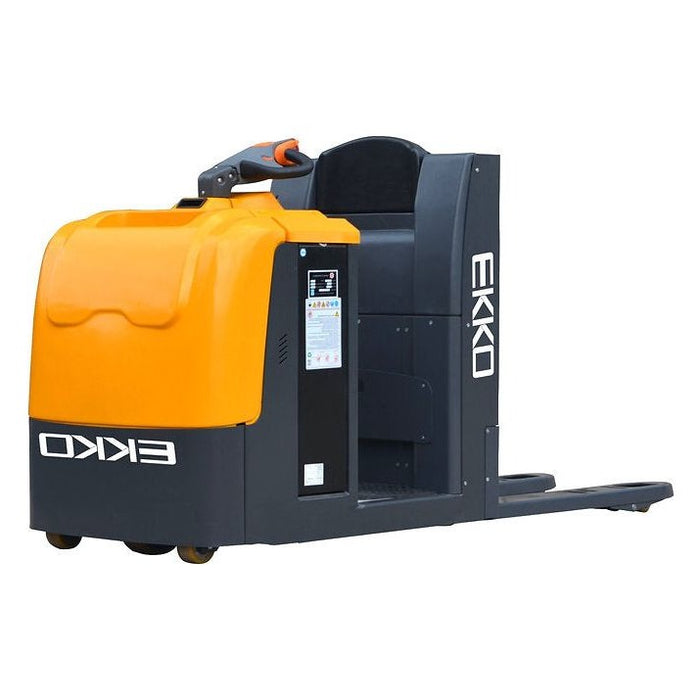

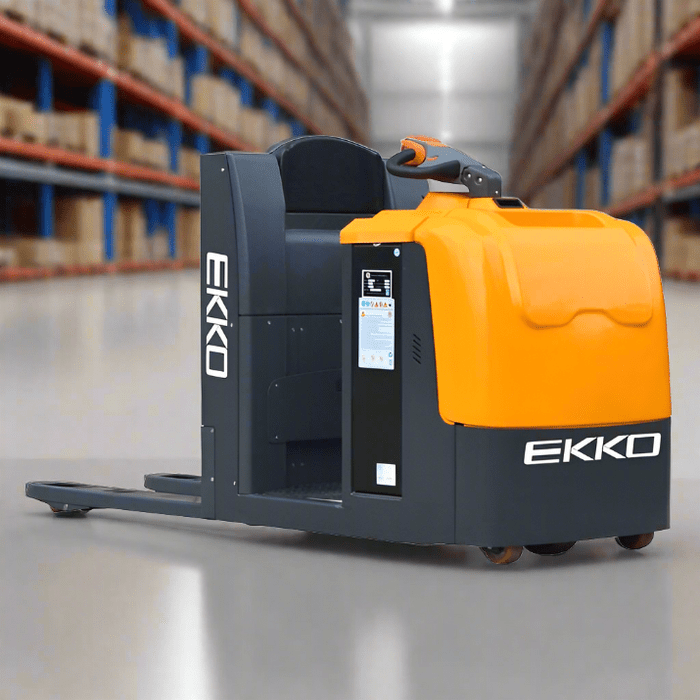

EKKO Center-Controlled Rider Pallet Jack 5000lbs. Capacity EPC30A

The EKKO EPC30A Center-Controlled Rider Pallet Jack is designed with the versatility of a pallet jack with full power lifting and driving capabilities. It is ideal for long hauls, loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.

Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.

Load Capacity 5000lbs.
Fork Size 27x45
Raised Height 7.88"
Lowered Height 3.35"
Curtis Controller
ZF German AC Driver Motor
Polyurethane Wheels
Steel Entry Wheels
Ergonomic Handle and Controls
Steel Construction
Robotic Welding
Charger Included
Battery 24V/360Ah Included
3 Years Limited Warranty

Specifications and Details

Specification	Unit / Type	Value
Model		EPC30A
Power unit		Electric
Operation		Stand on
Rated loading capacity	lbs	5000
Load centre	in	23.6
Distance between fork backrest and front wheel	in	35.83
Wheel base	in	81.89
Wheels type		PU
Driving wheel size	in	Φ9.84×2.95
Bearing wheel size	in	Φ3.15×3.35
Balance wheels	in	Φ4.53×2.17
Wheels, number front/rear (x = driven)		1,2/2
Track width (front)	in	21.26
Track width (rear)	in	20.28
Lifting height	in	7.88
Overall height	in	42.91
Lowered fork height	in	3.35
Overall length	in	99.09
Body Length	in	58.82
Overall width	in	31.81
Fork Size (thickness/height/length)	in	1.97/6.69/45.3
Fork Width	in	26.97
Min. Ground clearance	in	0.98
Aisle width for pallets 39.37×47.24 crossways	in	107.48
Aisle width for pallets 31.5×47.24 lengthways	in	109.45
Turning Radius	in	89.68
Travel speed, laden/unladen	km/h	5.2/5.5
Lifting speed, with/without load	mm/s	23/24
Lowering speed, with/without load	mm/s	30/20
Maximum climbing ability, with/without load		3/6
Brake Type		Electromagnetic brake
Drive Motor	kw	1.5
Lift Motor	kw	0.8
Battery (DIN 43531/35/36)		No
Battery voltage/capacity	V / Ah	24 / 360
Battery Weight (±5%)	lbs	680
Steering type		EPS
Type of drive control		AC
Noise level	dB(A)	≤75
Service weight with battery	lbs	2400
