EKKO Aerial Work Platform Lift Height 26.2' (315'') ES80E-Li

Name: EKKO Aerial Work Platform Lift Height 26.2' (315'') ES80E-Li
Brand: EKKO
SKU: ES80E-LI
Price: 33598.0 USD
Availability: InStock

EKKO | Authorized Dealer | SKU: ES80E-LI

$33,598.00 - $33,598.00

$33,598.00

$33,598.00 - $33,598.00

$33,598.00

+ FREE SHIPPING

Availability:

In stock

Get A Quote

✓ Free Shipping - on most EKKO products
✓ Manufacturer Warranty Included - on all EKKO
✓ 0% Financing Available - EKKO + 0% APR, Applicable at Checkout
✓ In Stock - most orders leave the warehouse in 3-5 business days
✓ Questions? - Call ‪(866) 412-1837

Quantity

Want today's EKKO prices but not ready for delivery?

No problem! All orders receive special attention and in most cases we can hold items and begin processing at a later date! Please contact us for more details!

EKKO Aerial Work Platform Lift Height 26.2' (315'') ES80E-Li

The EKKO ES80E-LI Scissor Aerial Work Platform is a 990-lb capacity compact platform with four wheels and Curtis controller which allows you to make lifting, transporting loads, and moving products easily and safely. This product also complys with GB25849 and EN280 standards.

Load Capacity 990 lb
Raised Height 26.2' (315")
Lowered Height 90.6''
Size: Length 89" x Width 45"
Steel construction
3 Years Limited Warranty

Specifications and Details

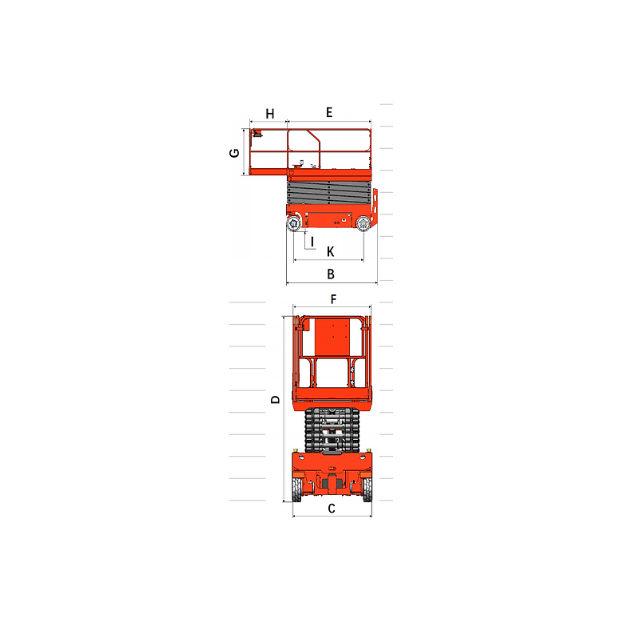

Specification	Unit	Value

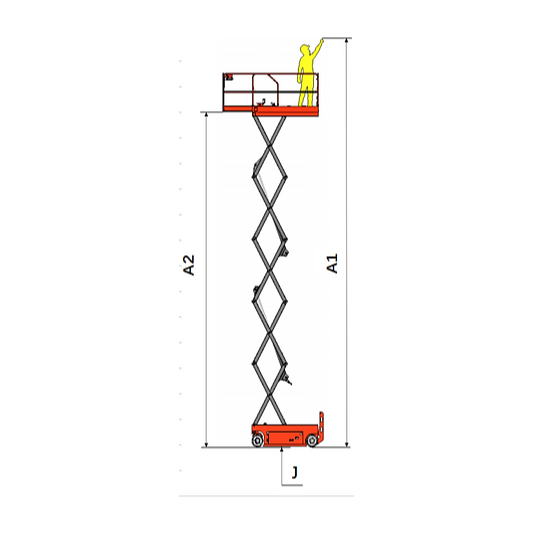

A1 Max working height	Inch	32.8' (394'')
A2 Max platform height	Inch	26.2' (315'')
B Length	Inch	94.5
C Width	Inch	45.27
D Overall height (guardrail not folded)	Inch	91.5"
Overall height (folding guardrail)		67"
Platform size (length EX width FX height G)	Inch	88.58x45.27
G Guardrail height	Inch	43.3
H Platform extension size	Inch	39.37
I Ground clearance (closed state)	Inch	3.74
J Ground clearance (lifting state)	Inch	0.78
K Wheelbase	Inch	72.83
Maximum number of workers (indoor/outdoor)		2 / 1
Load rating	LBS	990
Extended platform load rating	LBS	265
Driving speed (folding state)	km/h	0-3.2
Driving speed (lifting condition)	km/h	0~0.8
Minimum Turning radius (inside)	Inch	0
Minimum turning radius (outside)	Inch	86.61
Rise/fall time	s	32/35
Maximum allowable tilting Angle (front/left/right)	°	3°/1.5°
Maximum allowable wind speed (indoor/outdoor)	m/s	0/12.5
Maximum allowable lateral force (indoor/outdoor)	N	400/200
Gradeability	%	30
Control		Proportional control
Actuator		Double front wheels
Braking		Double rear wheels
Tyre specification/type	Inch	15*5
Lift/drive motor	kw	3.3/0.7x2
Battery voltage/capacity	V/Ah	25.6V/230AH
Charger input voltage	VAC	25.6V
Charger output current	A	36A
Control voltage	VDC	24
Hydraulic tank capacity	L	22
Total weight	lbs	5512
