EKKO Aerial Work Platform Lift Height 19' (228'') ES60E-Li

The EKKO ES60E-LI Scissor Aerial Work Platform is a 506-lb capacity compact platform with four wheels and Curtis controller which allows you to make lifting, transporting loads, and moving products easily and safely. This product also complys with GB25849 and EN280 standards.

  • Load Capacity 500 lb
  • Raised Height 19' (228")
  • Lowered Height 86''
  • Size: Length 65" x Width 30"
  • Steel construction
  • 3 Years Limited Warranty

Specifications and Details

Specification Unit / Type Value
Model ES60E-LI

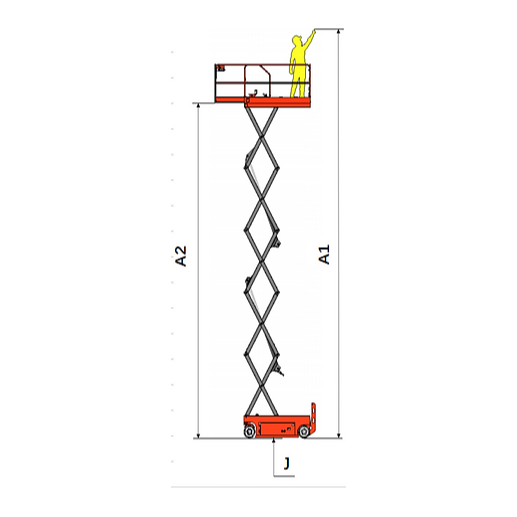

A1 Max working height in 25.5' (307'')
A2 Max platform height in 19' (228'')
B Length in 72.44
C Width in 29.92
D Overall height (guardrail not folded) in 85.75"
Overall height (folding guardrail) in 72.5"
Platform size (length EX width FX height G) in 64.96x29.92
G Guardrail height in 43.31
H Platform extension size in 35.43
I Ground clearance (closed state) in 2.36
J Ground clearance (lifting state) in 0.59
K Wheelbase in 1.36
Maximum number of workers (indoor/outdoor) 2 / –
Load rating lbs 506
Extended platform load rating lbs 264
Driving speed (folding state) km/h 0~4
Driving speed (lifting condition) km/h 0~0.8
Minimum Turning radius (inside) in 0
Minimum turning radius (outside) in 61
Rise/fall time s 18/28
Maximum allowable tilting Angle (front/left/right) ° 3°/1.5°
Maximum allowable wind speed (indoor/outdoor) m/s 0/0
Maximum allowable lateral force (indoor/outdoor) N 400/0
Gradeability % 30
Control Proportional control
Actuator Double front wheels
Braking Double rear wheels
Tyre specification/type in 12.71*3.93
Lift/drive motor kw 2.2/0.7x2
Battery voltage/capacity V/Ah 25.6V/150AH Lithium
Charger input voltage V 25.6
Charger output current A 36
Control voltage V 24
Hydraulic tank capacity L 8
Total weight lbs 3356
