Home > EKKO > EKKO Aerial Work Platform Lift Height 13' (157'') ES40E-Li
EKKO Aerial Work Platform Lift Height 13' 157'' ES40E-Li

EKKO Aerial Work Platform Lift Height 13' (157'') ES40E-Li

EKKO  | Authorized Dealer  |  SKU: ES40E-LI

$14,398.00 - $14,398.00
$14,398.00
$14,398.00 - $14,398.00
$14,398.00
+ FREE SHIPPING
Availability:
In stock

Get A Quote

✓ Free Shipping - on most EKKO products
✓ Manufacturer Warranty Included - on all EKKO
✓ 0% Financing Available - EKKO + 0% APR, Applicable at Checkout
✓ In Stock - most orders leave the warehouse in 3-5 business days
✓ Questions? - Call ‪(866) 412-1837

Want today's EKKO prices but not ready for delivery?

No problem! All orders receive special attention and in most cases we can hold items and begin processing at a later date! Please contact us for more details!

EKKO Aerial Work Platform Lift Height 13' (157'') ES40E-Li

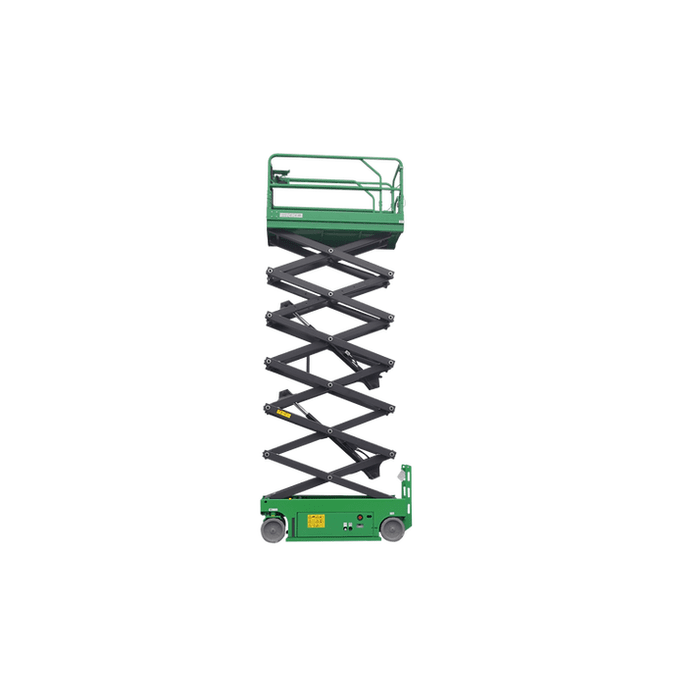

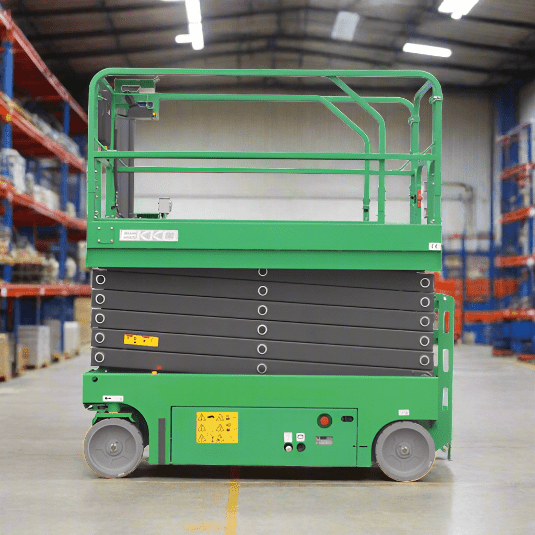

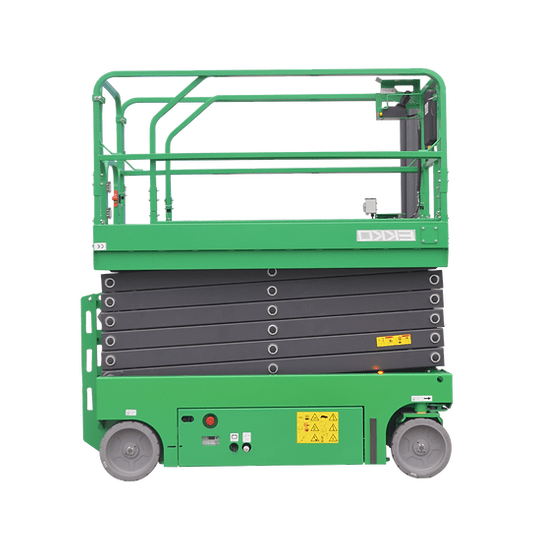

The EKKO ES40E-Li Scissor Aerial Work Platform is a 506-lb capacity compact platform with four wheels and Curtis controller, which allows you to make lifting, transporting loads, and move products easily and safely. This product also complys with GB25849 and EN280 standards.

  • Load Capacity 500 lb
  • Raised Height 13' (157")
  • Lowered Height 77''
  • Size: Length 57" x Width 30"
  • Steel construction
  • 3 Years Limited Warranty

Specifications and Details

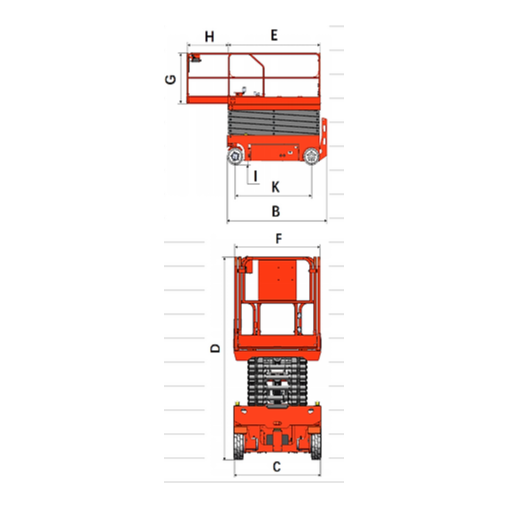

Specification Unit / Type Value
Model ES40E-Li
A1 Max working height in 19.7' (236.2'')
A2 Max platform height in 13' (157'')
B Length in 57.1
C Width in 29.9
D Overall height (guardrail not folded) in 76.8
Overall height (folding guardrail) in 63
Platform size (length EX width FX height G) in 50.4*29.1
G Guardrail height in 43.3
H Platform extension size in 23.6
I Ground clearance (closed state) in 2.36
J Ground clearance (lifting state) in 0.59
K Wheelbase in 40.6
Maximum number of workers (indoor/outdoor) 2 / –
Load rating lbs 500
Extended platform load rating lbs 220
Driving speed (folding state) km/h 0~4
Driving speed (lifting condition) km/h 0~0.8
Minimum Turning radius (inside) in 0
Minimum turning radius (outside) in 61
Rise/fall time s 25/25
Maximum allowable tilting Angle (front/left/right) ° 3°/1.5°
Maximum allowable wind speed (indoor/outdoor) m/s 0/0
Maximum allowable lateral force (indoor/outdoor) N 400/0
Gradeability % 25
Control Proportional control
Actuator Dual front wheels
Braking Double front wheels
Tyre specification/type in 9*3.1
Lift/drive motor kw 1.2/0.4*2
Battery voltage/capacity V/Ah 25.6/75
Charger input voltage VAC 100-240
Charger output current A 10
Control voltage VDC 24
Hydraulic tank capacity L 3
Total weight lbs 2046
