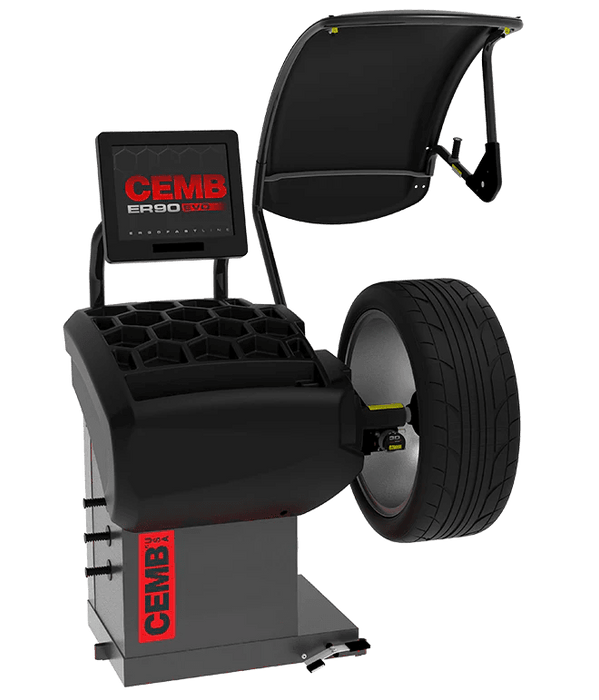

CEMB Fully Automatic Balancer - ER90 EVO

The new immediate no contact balancing machine without need of check-spin.
The new ER90 EVO automatically detects wheel data simply pressing one single touchbutton and after a few seconds gives a clear and accurate indication of exact position to place counterweights (clip-on and/or stick-on weights)

• One Plane Balancing (OPB)
• AutoAdaptive™ Mode
• Hubmatch
• Ergonomic Design
• 3D Laser Scan
• Side Laser
• Automatic Positioning System

CEMB’s AutoAdaptive Mode software measures the wheel’s weight and dimensions and then recalculates the tolerance value so as to cancel any vibration perceived on the steering wheel, ensuring the greatest possible driving comfort.  CEMB’s OPB (One Plane Balancing) program, 3D Laser Scan and HubMatch,  clock the RFV highpoint of the assembly to the vehicle hub before mounting it at the 12 o’clock position. All these features guarantee significant time savings during the balancing process. Also included is a TDC Laser (Top Dead Center) for steel rims.

Features

•Average 6-second cycle time includes automatic RFV* and wheel scanning performed during the balance cycle.
•Dynamic AutoAdaptive OPB balancing automatically shifts to a single weight balance on over 70% of today’s wheels; gaining a 33%-time savings on every balance.
•Made in Italy. Final assembly in USA.
• 220V, 1ph. +AIR
•Radial Force Vectoring
