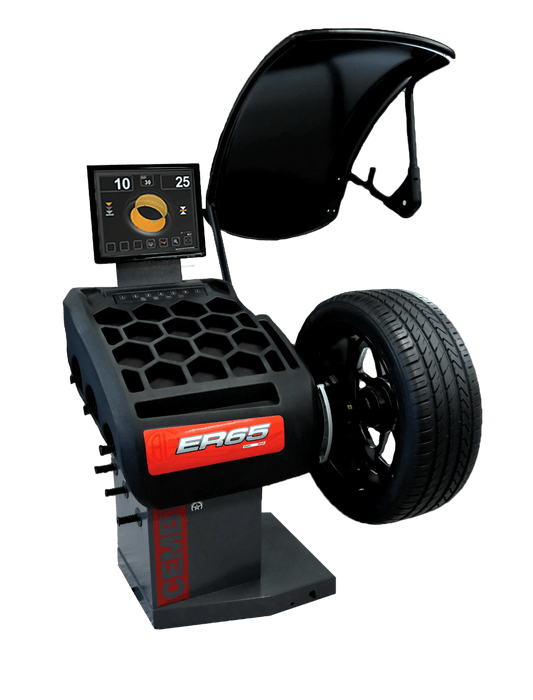

CEMB Automatic Balancing Machine with Monitor - ER65

A balancing machine with ample monitor and intuitive graphical display which, combined to its large ergonomic weight tray, conveys prestige to the tire shop and transmits a sense of efficiency and professionalism to end users.

• Ergonomic design
• Detection of Wheel Data
• Automatic Approach
• Pneumatic locking of wheel (ER65SE)
• LA Sonar
• Adhesive counter-weights positioning with laser beam

Features

•  The ErgoFast range of balancing machines has been developed to offer the operator the best possible working conditions.
• The automatic gauge enables detection of distance and diameter (up to 28″ rims) with relative activation of desired balancing program (clip-on or stick-on weights).
• Once the measuring launch is completed, thanks to the Automatic Approach system, the wheel automatically stops around 15° from the exact point of application of the counterweight, allowing the operator to position it correctly with a little movement.
• Wheel locked in position for weight applications through electric brake and laser beam indicating position guarantee an easy and extremely quick balancing operation.
• Two gas springs which produce a force of 551.2 lbs guarantee a quick and constant wheel locking. The 4 wheel tire set is balanced in the same conditions. (SE Version)
• The LA sonar for width measurement enables an immediate entry of all necessary wheel data.
