AMGO XL-9F Flush Mount Scissor Lift | 9,000 lb Low-Profile Garage Car Lift

AMGO XL-9F Flush Mount Scissor Lift | 9,000 lb Low-Profile Garage Car Lift

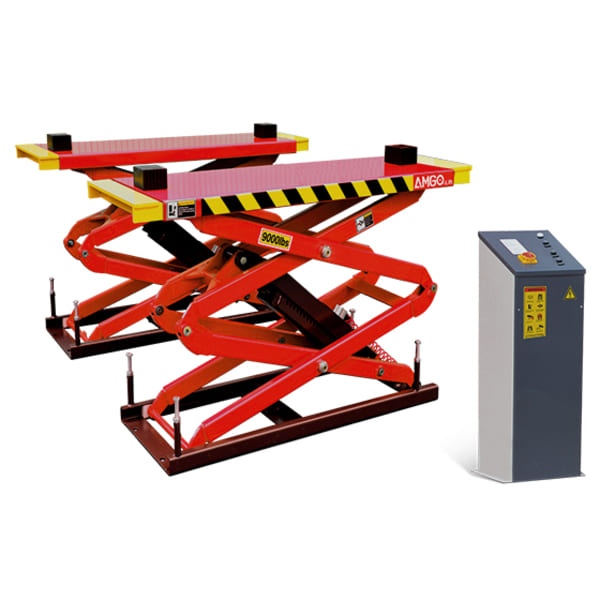

The AMGO XL-9F Flush Mount Scissor Lift is a professional-grade 9,000 lb scissor car lift engineered for automotive shops and garages that need full-rise lifting capability without sacrificing floor space. Designed as a flush mount scissor lift, the XL-9F installs level with the shop floor, creating a clean, obstruction-free workspace ideal for general service, tire work, brake jobs, and undercar maintenance.

Unlike bulky four post car lifts or traditional 2 post car lifts, the XL-9F offers a compact footprint while delivering full-rise access. Dual synchronous hydraulic cylinders ensure balanced lifting across both platforms, while extendable runways accommodate a wide range of wheelbases—from compact cars to light trucks and pickups.

Built with heavy-duty steel construction, an electric/hydraulic power system, and air-activated mechanical safety locks, the AMGO XL-9F is a reliable solution for shops searching automotive scissor lift, garage scissor lifts, or low profile car lift options for daily professional use.

WHY CHOOSE THE AMGO XL-9F SCISSOR LIFT

• 9,000 lb automotive scissor lift for professional service bays
• Flush mount design keeps shop floor clean and unobstructed
• Full-rise lifting without overhead columns
• Compact alternative to 2 post car lift systems
• Extendable platforms for multiple vehicle wheelbases
• Dual hydraulic cylinders for balanced, stable lifting
• Ideal for shops searching scissor car lift, garage scissor lifts, or car lift for garage

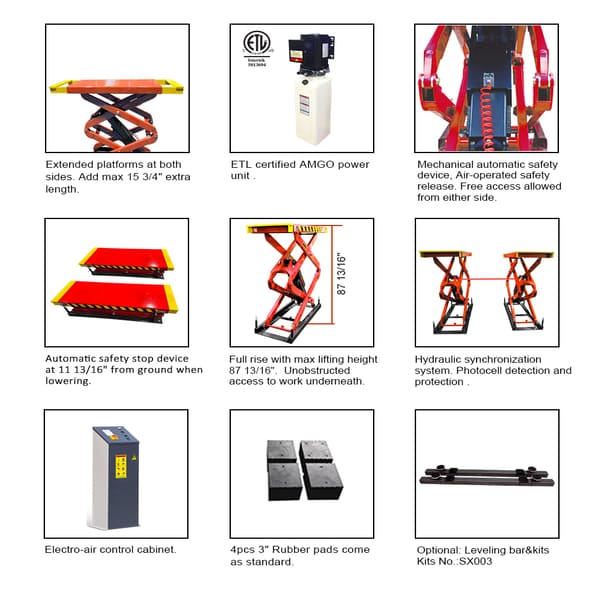

KEY FEATURES

9,000 lb Lifting Capacity
Supports passenger cars, SUVs, and light-duty trucks.

Flush Mount Full-Rise Design
Installs level with the floor for a clean, space-efficient shop layout.

Dual Synchronous Hydraulic Cylinders
Ensures even lifting across both platforms for vehicle stability.

Extendable Diamond Plate Platforms
Adjusts to accommodate a wide range of vehicle wheelbases.

Electric / Hydraulic Power System
Delivers smooth, consistent lifting performance.

Mechanical Safety Lock System
Air cylinder-activated locks provide secure lifting at working height.

Heavy-Duty Steel Construction
Built for long-term durability in commercial shop environments.

FLUSH MOUNT SCISSOR LIFT SPECIFICATIONS

Model: XL-9F
Lifting Capacity: 9,000 lbs
Lifting Time: 49 seconds
Max Lifting Height: 87 3/4"
Minimum Height: 13 3/4"
Overall Length: 65 1/8" – 80 7/8"
Overall Width: 74 3/4"
Width Between Runways: 31 1/2"
Gross Weight: 1,903 lbs
Motor: 3.0 HP
Lift Type: Flush mount, full-rise scissor lift

AMGO XL-9F Scissor Car Lift Installation Manual

Download the XL-9F Installation Manual (PDF)

INSTALLATION NOTES (IMPORTANT)

Flush mount installation requires proper floor preparation.
Confirm pit dimensions, electrical requirements, and shop layout before installation.

Buyer is responsible for site preparation and unloading.

WARRANTY

AMGO 5-3-2 Warranty

• 5-Year warranty on steel structural components
• 3-Year warranty on hydraulic parts
• 2-Year warranty on electrical components
• on approved warranty replacement parts
• Labor not included

BOTTOM LINE

The AMGO XL-9F is a premium flush mount scissor car lift built for shops that want full-rise service capability without sacrificing floor space. If you’re comparing automotive scissor lifts, garage scissor lifts, or compact alternatives to a 2 post car lift, the XL-9F delivers professional performance in a clean, low-profile design.

Live Chat with us or call (866) 412-1837 to confirm fitment, installation requirements, or shipping details.
