AMGO RJ-10A Rolling Jack – 10,000 lb Scissor Lift

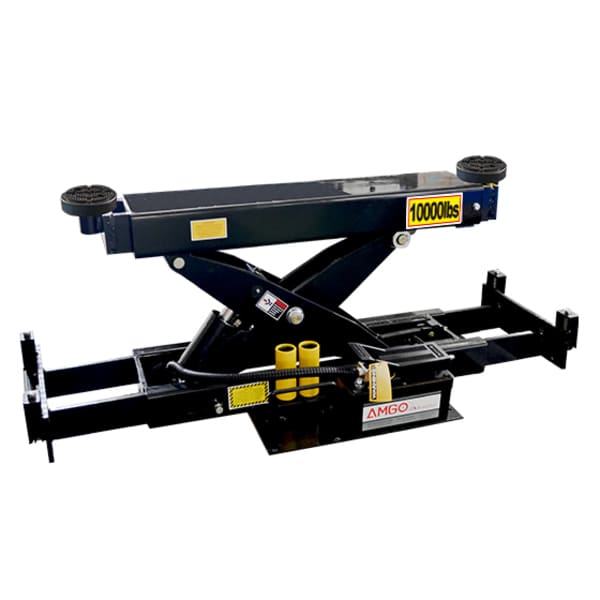

AMGO RJ-10A Heavy-Duty Pneumatic Rolling Jack

The AMGO RJ-10A is a commercial-grade rolling jack designed to pair with four-post and scissor lifts rated 18,000 lbs and above. With a robust 10,000 lb capacity, this jack provides stable lifting for heavy-duty service tasks. Built with reinforced steel construction, a pneumatic hydraulic pump, and ergonomic features, the RJ-10A delivers reliable performance, safety, and durability in any workshop.

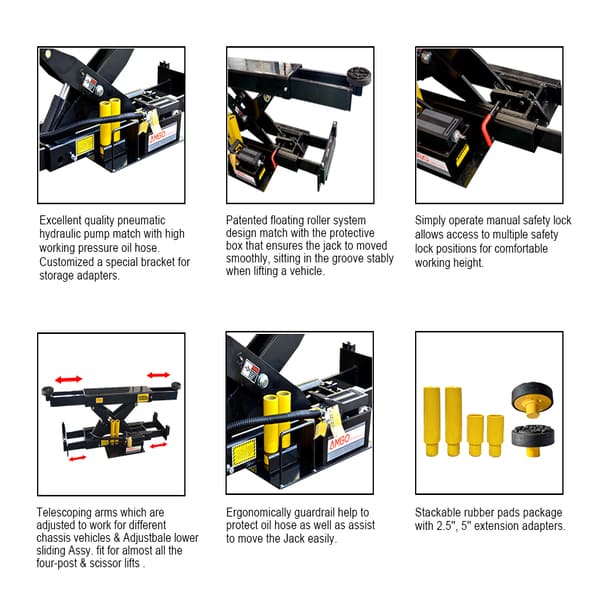

High-Capacity Lift Features – AMGO RJ-10A Jacking Beam

• Pneumatic hydraulic pump operation

• Massive 10,000 lb lifting capacity

• Reinforced scissor structure for stability

• Includes 2.5" & 5" adapter extensions + rubber pads

• Extendable arms (Min: 38 7/16”, Max: 66 3/8”)

• Two-position manual safety lock for height flexibility

• Fits lift runways from 39 9/16” to 56 ½”

• Guardrail doubles as a handle and hose protector

Heavy Vehicle Jack Specs – AMGO RJ-10A Specifications

• Model: RJ-10A

• Type: Pneumatic Rolling Jack

• Lifting Capacity: 10,000 lbs

• Arm Extension Range: 38 7/16" to 66 3/8"

• Runway Width Compatibility: 39 9/16" to 56 ½"

• Safety Lock: Manual, 2-position

• Included: 2.5" & 5" adapters, rubber pad assembly

• Frame: Reinforced steel scissor mechanism

• Application: For 4-post/scissor lifts over 18,000 lbs

Commercial Jack Installation Guide – AMGO RJ-10A Manual

Download AMGO RJ-10A Installation Manual (PDF)
