AMGO 18K PRO-18A Heavy-Duty Alignment Car Lift

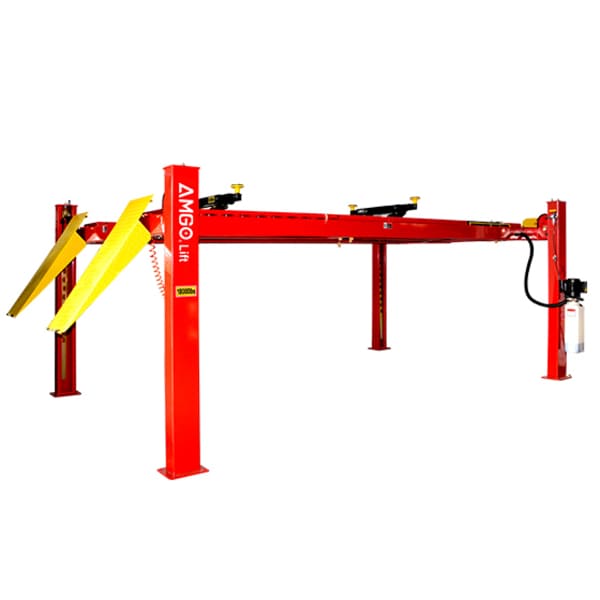

AMGO PRO-18A 18,000 lb Four Post Alignment Lift

The AMGO PRO-18A is a premium heavy-duty alignment lift engineered to handle large vehicles with precision and ease. With an 18,000 lb lifting capacity, this robust four-post lift features extra-long, non-skid runways, integrated slip plates, and adjustable turnplate pockets—ideal for alignment and general services. Built for durability and safety, it’s the perfect addition to any professional automotive shop or commercial garage.

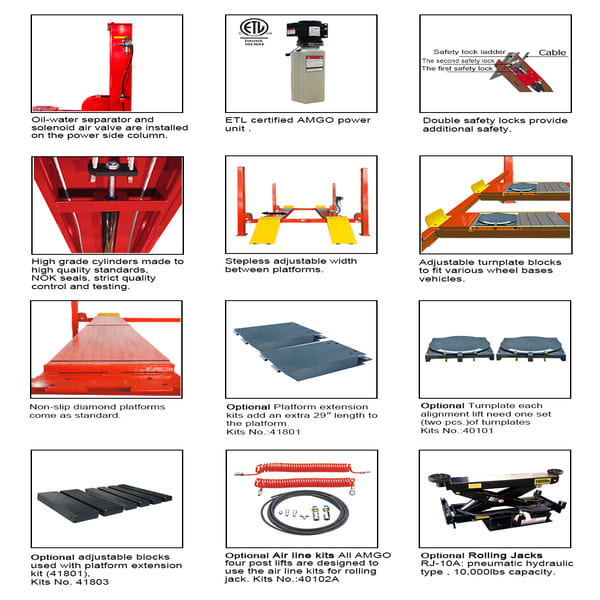

PRO-18A Four Post Lift Alignment Features

• 18,000 lbs lifting capacity for trucks, buses, and cars

• Integrated slip plates and adjustable turnplate pockets

• Extra-long, non-skid diamond runways

• AMGO ETL-certified hydraulic power unit

• Mechanical self-locking system with air lock release

• Dual safety locks with cable-slack protection

• Aircraft-grade, high-tensile lifting cables

• Stepless adjustable runway width for flexible use

• High-quality hydraulic cylinder with premium oil seals

AMGO PRO-18A Heavy-Duty Lift Specifications

• Lifting Capacity: 18,000 lbs

• Overall Length (including ramps): 280 1/2″ (7120mm)

• Runway Length: 233 1/2″ (5930mm)

• Overall Width: 130″ (3300mm)

• Lifting Height: 75″ (1905mm)

• Width Between Columns: 116″ (2946mm)

• Runway Width: 22″ (560mm)

• Width Between Runways: 43″ (1100mm)

• Power Supply: 220V, 1Ph

PRO-18A Alignment Lift Installation Manual

Download the PRO-18A Installation Manual (PDF)
