AMGO PRO-12SX Four Post Lift | 12,000 lb 4 Post Car Lift for Garage & Shops
The AMGO PRO-12SX Four Post Lift is a heavy-duty, professional-grade 4 post car lift built for automotive repair shops, service centers, and residential garages that need strength, stability, and wide drive-through clearance. With a 12,000 lb lifting capacity, this lift is ideal for daily service, inspections, storage, and general vehicle maintenance.
Designed with an extremely wide stance and over 100 inches of drive-through clearance, the PRO-12SX makes it easy to position vehicles without stress or tight margins. The non-skid diamond plate runways, aircraft-grade lifting cables, and multi-position mechanical safety locks provide confidence and control for long-term use.

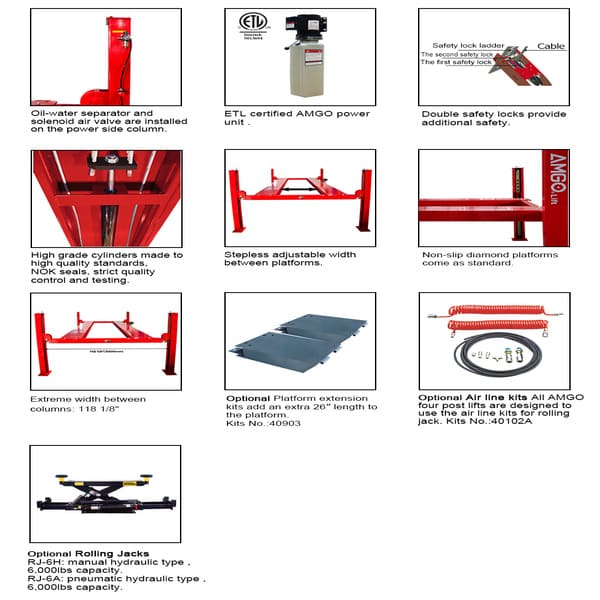

KEY FEATURES
12,000 lb Lifting Capacity โ Supports cars, SUVs, trucks, and commercial vehicles within rated limits.
Extra-Wide Four Post Design โ Over 118" between columns improves access and stability.
Mechanical Safety Lock System โ Multi-position locks with air-driven release for controlled lowering.
Aircraft-Grade Cable Drive โ High-strength cables with slack-cable protection for safe lifting.
Heavy-Duty Hydraulic System โ Premium oil seals and compensation valve ensure smooth operation.
Non-Skid Diamond Plate Runways โ Improves traction and safety during drive-on positioning.
FOUR POST LIFT SPECIFICATIONS
Model: PRO-12SX
Lift Type: Four Post Lift
Lifting Capacity: 12,000 lbs
Lifting Time: 45 seconds
Overall Length (with ramps): 232 5/8"
Overall Width: 132 1/8"
Width Between Columns: 118 1/8"
Drive-Thru Clearance: 104 3/16"
Max Lifting Height: 74 7/16"
Minimum Height: 6 11/16"
Motor: 2.0 HP
Gross Weight: 2,229 lbs
INSTALLATION & SHIPPING NOTES (IMPORTANT)
โข Freight shipping only
โข Forklift required for unloading
โข Buyer responsible for unloading and placement
โข Ensure adequate ceiling height and floor space before purchase
โข Commercial or terminal delivery recommended
WARRANTY
AMGO 5-3-2 Warranty
โข 5-Year structural steel warranty
โข 3-Year hydraulic parts warranty
โข 2-Year electrical components warranty
โข Labor not included
AMGO PRO-12SX Vehicle Lift Manual
Download the PRO-12SX Installation Manual (PDF)
Specifications
-
Overall Dimensions (W x H x D): 132 1/8 in W x 74 7/16 in max lift height x 232 5/8 in L (with ramps)
-
Cutout / Rough-In: Not listed (freestanding floor-mount; requires adequate ceiling height & floor space)
-
Installation Type: Four-Post
-
Capacity: 12,000 lb
-
Fuel / Voltage: Electric-hydraulic, 2.0 HP motor (voltage not listed)
