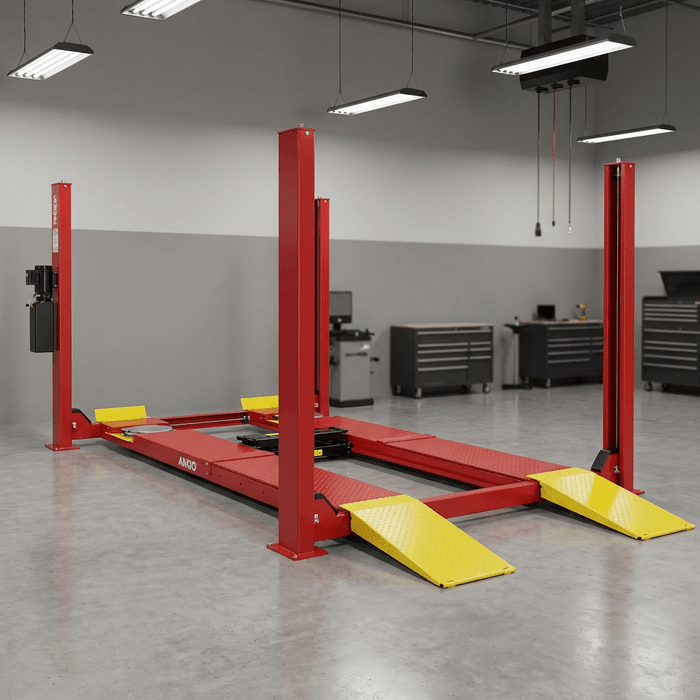

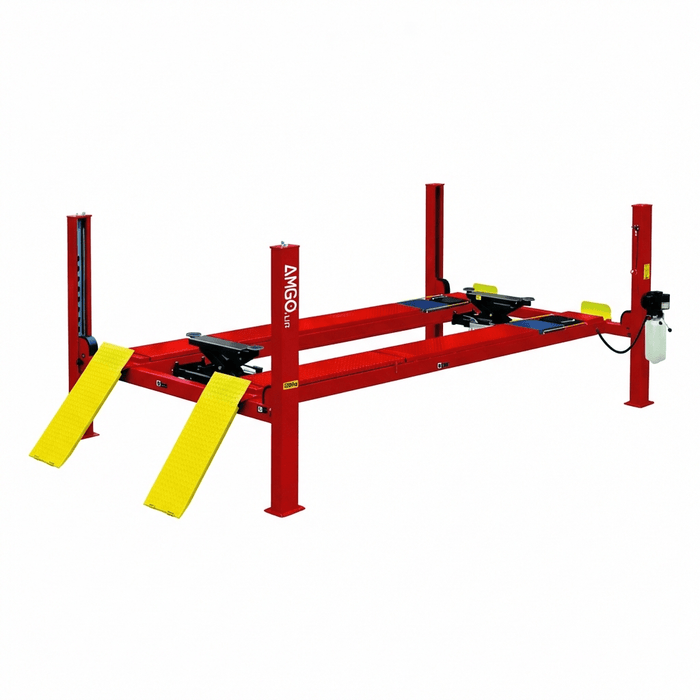

AMGO PRO-12ASX 12,000 lb 4 Post Alignment Lift | Commercial Four Post Car Lift
The AMGO PRO-12ASX 4 Post Alignment Lift is a commercial-grade 12,000 lb four post car lift engineered for automotive repair shops, alignment bays, and professional garages that require accuracy, safety, and long-term durability. This alignment-ready four post lift is designed for daily shop use and supports full wheel alignment service without aftermarket modifications.
Unlike standard four post lifts for sale, the PRO-12ASX includes integrated slip plates and adjustable turnplate pockets, allowing alignment work straight out of the box. The stepless adjustable runway width accommodates a wide range of vehicle wheelbases and track widths, making it a versatile solution for modern service bays.
Powered by a reliable 2.0HP single-phase motor and reinforced with aircraft-grade cables and mechanical self-locking safety systems, this AMGO alignment lift delivers smooth lifting, stable operation, and dependable performance. It’s an ideal choice for shops comparing 4 post car lift options, 11000 lb 4 post lift alternatives, or upgrading from older alignment equipment.
WHY CHOOSE THE AMGO PRO-12ASX FOUR POST LIFT
• 12,000 lb four post alignment lift for professional shops
• Alignment-ready design with slip plates and turnplate pockets
• Stepless adjustable runway width for multiple wheel tracks
• Heavy-duty four post car lift for commercial garages
• Mechanical self-locking safety system with air release
• Aircraft-grade cable-driven lifting system
• Anti-slip diamond plate runways for secure positioning
• Ideal for shops comparing bendpak HD9, triumph 4 post lift, or other 4 post lifts for sale
AMGO PRO-12ASX Lift Specifications
-
Lift Capacity: 12,000 lbs
-
Drive-through Width: Over 100″
-
Platform Surface: Non-skid diamond
-
Width Adjustment: Stepless technology
-
Alignment Features: Slip plates + adjustable turnplate pockets
-
Safety Systems: Cable-slack protection, self-locking mechanical locks
AMGO PRO-12ASX Car Lift Manual
Download the PRO-12ASX Installation Manual (PDF)

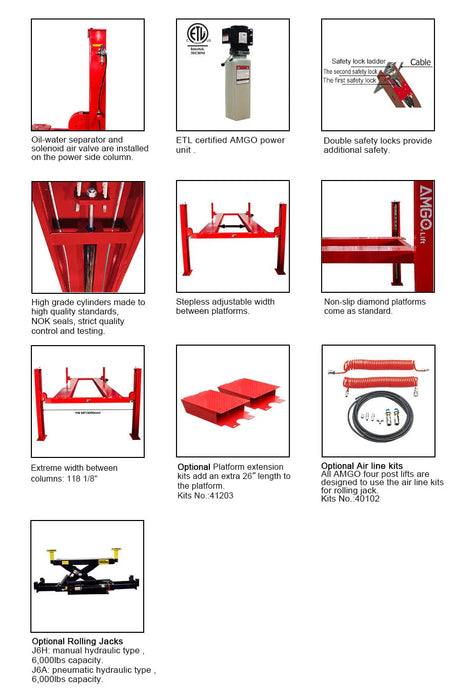

KEY FEATURES
12,000 lb Lifting Capacity
Supports passenger vehicles, SUVs, and light-duty trucks.
Alignment-Ready Runways
Integrated slip plates and adjustable turnplate pockets eliminate aftermarket add-ons.
Stepless Adjustable Width
Adapts to different wheelbases and track widths without reconfiguration.
Mechanical Self-Locking Safety System
Multiple lock positions with air-released operation for controlled lowering.
Aircraft-Grade Cable System
3/8" steel cables provide smooth, stable lifting performance.
Hydraulic Cylinders with Flow Restrictors
Ensures consistent lifting speed and long-term reliability.
Anti-Slip Diamond Plate Platforms
Improves traction and vehicle stability during alignment and service.
Commercial-Grade Power Unit
2.0HP / 220V single-phase motor designed for high-volume shop use.

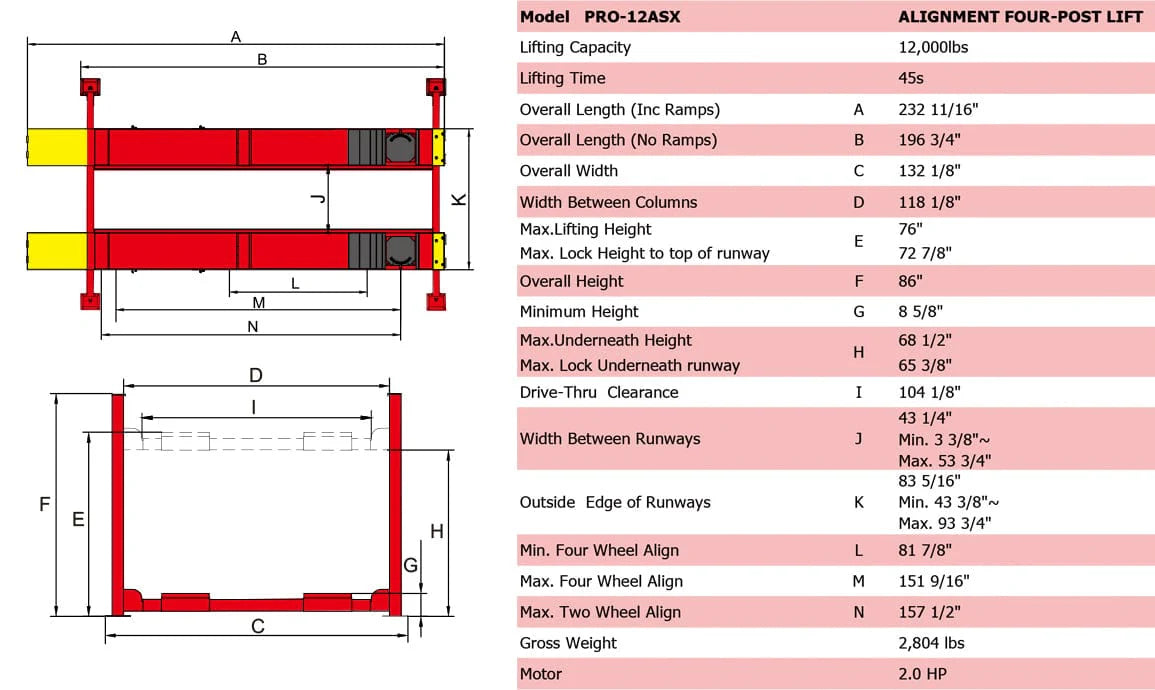

4 POST ALIGNMENT LIFT SPECIFICATIONS
-
Lift Capacity: 12,000 lbs
-
Overall Length (with ramps): 232 5/8"
-
Overall Length (without ramps): 196 3/4"
-
Overall Width: 132 1/8"
-
Width Between Columns: 118 1/8"
-
Max Lifting Height: 76 3/8"
-
Minimum Height: 8 11/16"
-
Drive-Thru Clearance: 104 3/16"
-
Runway Width (Inside Edge): 43 5/16" – 53 3/4"
-
Runway Width (Outside Edge): 83 5/16" – 93 3/4"
-
Motor: 2.0HP / 220V / 60Hz / Single Phase
-
Gross Weight: 2,773 lbs
Rolling jacks sold separately.

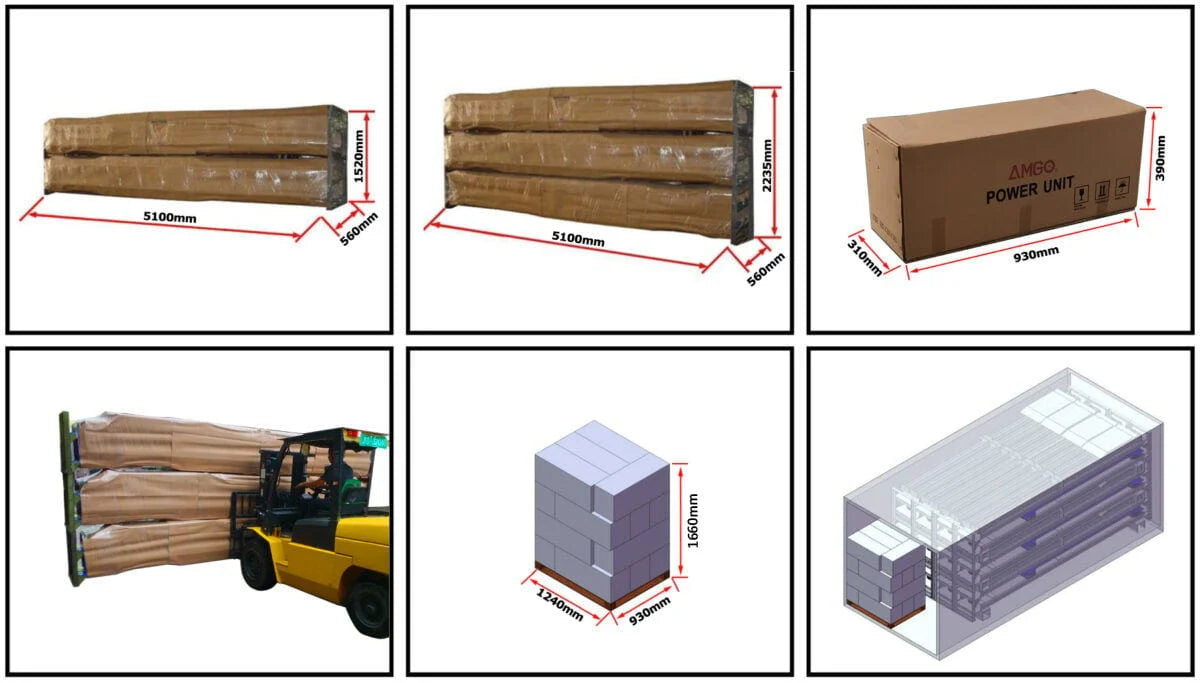

INSTALLATION & SHIPPING NOTES (IMPORTANT)
-
Commercial freight shipping only
-
Forklift required for unloading
-
Warehouse pickup available (Dallas, TX / Manning, SC)
-
Buyer responsible for unloading and site preparation
-
Confirm 220V single-phase power prior to installation
WARRANTY
BOTTOM LINE
The AMGO PRO-12ASX is a professional 12,000 lb four post alignment lift built for shops that need accuracy, safety, and durability. If you’re comparing four post lifts for sale, bendpak HD9, or other commercial alignment lifts, the PRO-12ASX delivers full alignment capability and long-term performance in one complete system.
Live Chat with us or call (866) 412-1837 to confirm fitment, warehouse pickup availability, or installation requirements.
