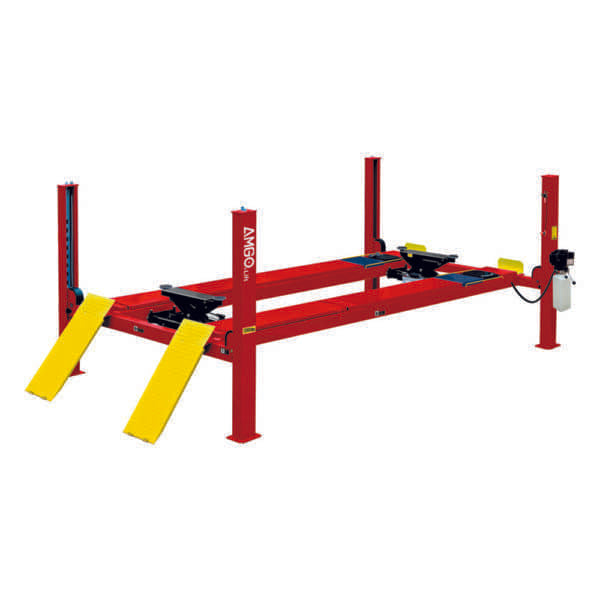

AMGO PRO-12A Four-Post Alignment Lift – 12,000 lb Capacity

The AMGO PRO-12A combines the trusted features of the PRO-12 series with added alignment capabilities. Engineered for commercial-grade performance, this 4-post lift comes with integrated slip plates and adjustable turnplate pockets—ideal for wheel service and alignment jobs. With a robust 12,000 lb lifting capacity and stepless width adjustment, the PRO-12A is perfect for garages and service centers handling a wide range of vehicles including cars, SUVs, pickups, and vans.

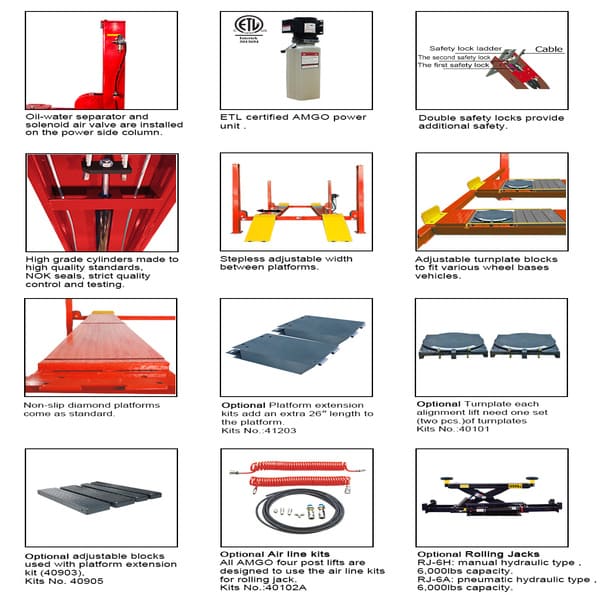

PRO-12A Alignment Lift Features

• 12,000 lbs lifting capacity

• AMGO ETL-certified power unit included

• Mechanical self-locking system with air-driven lock release

• Primary multi-position safety locks and cable-slack protection

• Aircraft-grade, cable-driven system for enhanced durability

• High-standard hydraulic cylinder with premium oil seals and compensation valve

• Non-skid diamond platform surfaces

• Stepless adjustable width to fit various wheel tracks

• Integrated slip plates and adjustable turnplate pockets

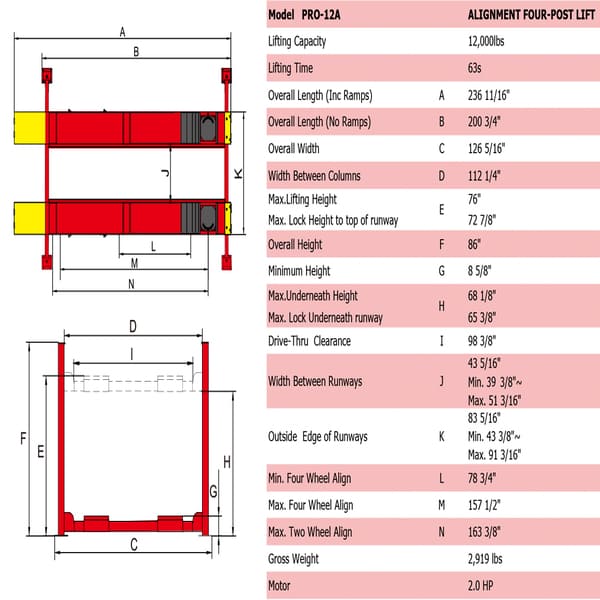

AMGO PRO-12A Four-Post Lift Specifications

• Lift Capacity: 12,000 lbs

• Power Unit: ETL certified

• Locking System: Mechanical with air release

• Platform Surface: Non-skid diamond

• Drive System: Aircraft-grade cables

• Hydraulics: High-quality seals & compensation valve

• Adjustment: Stepless platform width

• Alignment Features: Slip plates & turnplate pockets

PRO-12A Vehicle Lift Installation Manual

Download the PRO-12A Installation Manual (PDF)
