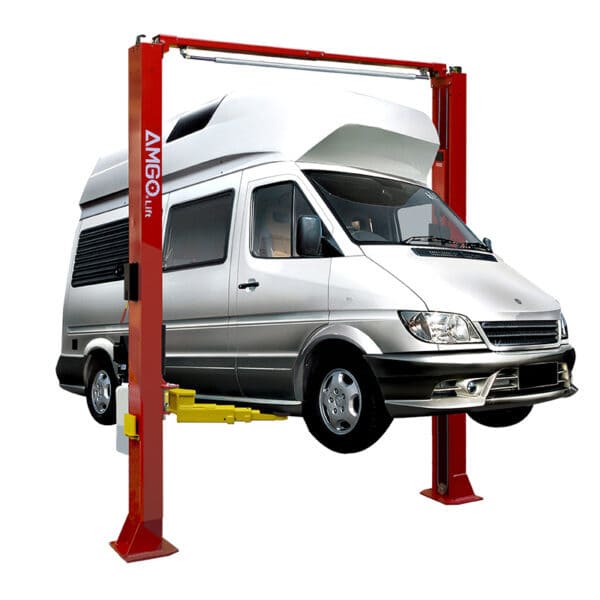

AMGO OHX-10 10,000lb 2-Post Lift with Super Asymmetry

AMGO OHX-10 10,000 lb Super Asymmetric 2-Post Lift

The AMGO OHX-10 is engineered for exceptional performance and long-term reliability. With a 10,000 lb lifting capacity, this 2-post lift is ideal for busy automotive shops and garages with over 12ft ceilings. Built with a single-piece column and split-structure top beam, the OHX-10 ensures easier installation and low-maintenance operation. Its Super Asymmetric technology allows versatile loading for a wide range of vehicles, while the extended carriage and optional width extension offer unmatched flexibility.

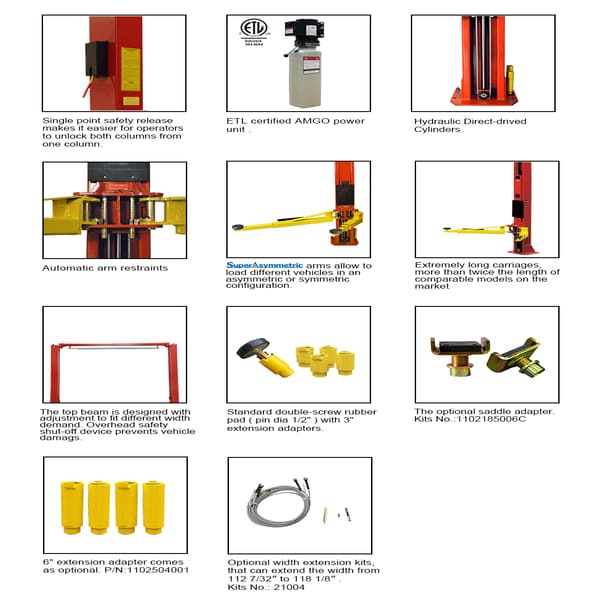

AMGO OHX-10 2-Post Car Lift Features

• 10,000 lb lifting capacity

• Dual hydraulic direct-drive cylinders

• Arms support symmetric and asymmetric loading for optimal door clearance

• Manual single-point safety lock release unlocks both columns simultaneously

• Clear-floor design provides unobstructed workspace

• Overhead safety shut-off prevents vehicle damage

• One-piece columns for simplified installation

• UHMW self-lubricating polyethylene sliders

• Automatic arm restraints

• Areo sync cables included as standard

• Detachable toe guard and convenient tool tray

• Standard double-screw rubber pads (½” pin diameter) with 3” extension adapters

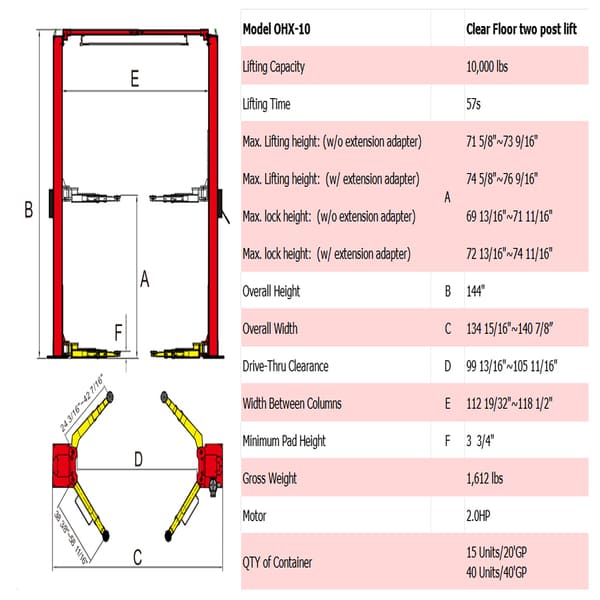

OHX-10 Automotive Lift Specifications

• Lifting Capacity: 10,000 lbs

• Column Design: One-piece

• Top Beam: Split-structure

• Arm Configuration: Super Asymmetric

• Ceiling Height Requirement: Minimum 12 ft

• Safety Locks: Manual single-point release

• Accessories: Rubber pads, extension adapters, toe guard, tool tray

AMGO OHX-10 Super Asymmetric Lift Installation Manual

Download the AMGO OHX-10 Manual (PDF)
