AMGO OH-12S 12K Low Ceiling 2-Post Lift | Adjustable

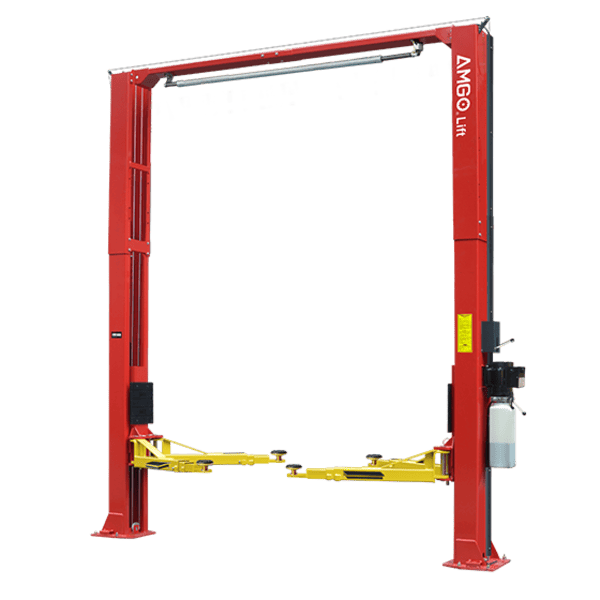

AMGO OH-12S 12,000 lb Low Ceiling 2-Post Auto Lift

The AMGO OH-12S is a game-changing solution for shops with low ceiling clearance. Engineered for strength, flexibility, and precision, this 12,000 lb 2-post lift comes with three adjustable height settings, making it ideal for service centers where every inch of vertical space matters. With its clear-floor design and 4 three-stage arms, the OH-12S provides maximum versatility—lifting everything from compact cars to long-wheelbase trucks—all without compromising performance.

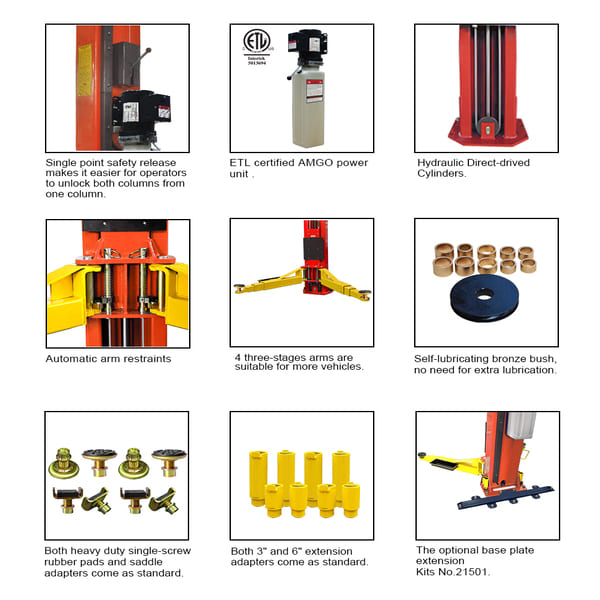

OH-12S Low Ceiling Car Lift Features

• 12,000 lb lifting capacity

• Dual direct-drive hydraulic cylinders for powerful, smooth operation

• Four 3-stage arms to support a wide range of vehicle sizes

• Clear-floor design offers full shop floor access

• Three adjustable height settings for ceilings with limited clearance

• Overhead safety shut-off to prevent accidental damage

• Single-point manual safety lock release (operates both columns at once)

• Self-lubricating UHMW polyethylene sliders for low maintenance

• Automatic arm restraints for safer operation

• Areo sync equalization cables included standard

• Includes detachable toe guard and tool tray

• Comes with heavy-duty single-screw rubber pads

• Both 3” and 6” extension adapters included

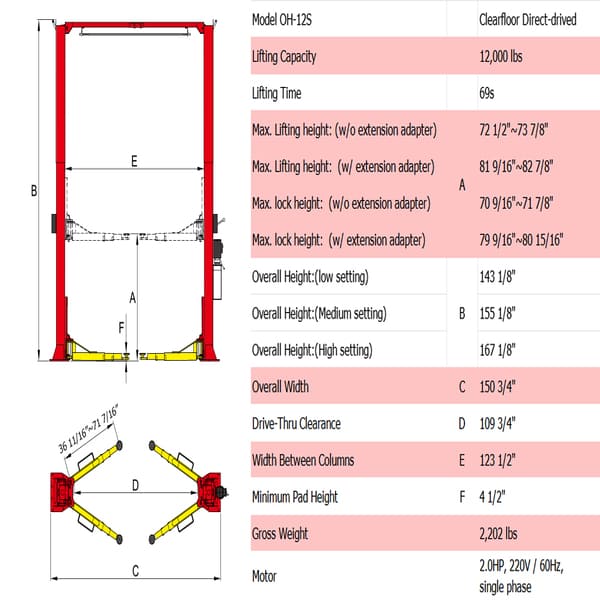

AMGO OH-12S Heavy Duty 2-Post Lift Specifications

• Lift Capacity: 12,000 lbs

• Ceiling Requirement: Adjustable height settings for low clearance

• Arm Type: 4 three-stage arms (short to long wheelbase compatibility)

• Lift Design: Clear-floor

• Safety System: Manual single-point column lock release

• Cylinder Type: Dual hydraulic direct-drive

• Adapters Included: 3” and 6” extension adapters, heavy-duty rubber pads

• Extras: Toe guard, tool tray, UHMW sliders, Areo sync cables

OH-12S Adjustable Height Lift Installation Manual

Download the AMGO OH-12S Manual (PDF)
