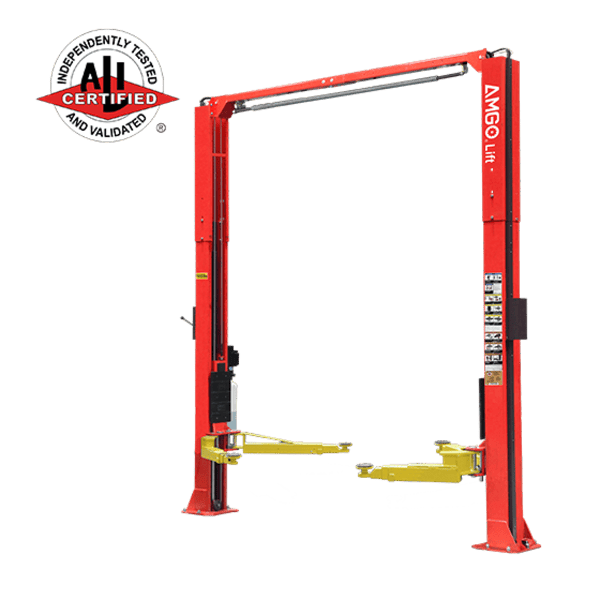

AMGO OH-10 Two Post Lift | 10,000 lb ALI Certified Lift

AMGO OH-10 Two Post Lift – 10,000 lb ALI Certified Power

The AMGO OH-10 is a heavy-duty, ALI certified two post lift engineered for commercial-grade performance. Built with AMGO’s proven Super Asymmetric technology, dual hydraulic direct-drive cylinders, and a clear-floor design, the OH-10 delivers outstanding safety, versatility, and space efficiency. With standard dual height settings and optional width configurations, it’s ideal for shops or garages with varied vehicle types and ceiling heights.

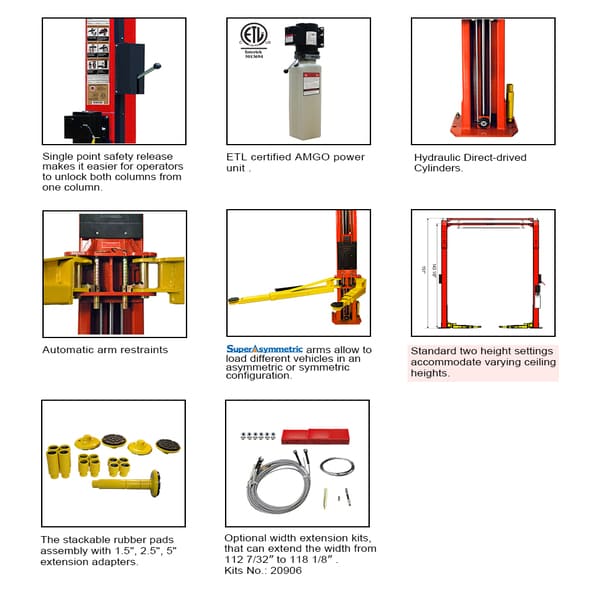

ALI Certified Car Lift Features – AMGO OH-10 Highlights

• 10,000 lb lifting capacity

• ALI certified for industry-leading safety and quality

• Dual hydraulic direct-drive cylinders for smooth lifting

• Supports asymmetric and symmetric vehicle loading

• Super Asymmetric arm design allows greater door clearance

• Aero sync cables ensure equal rise

• Single-point manual lock release operates both columns

• Self-lubricating UHMW polyethylene sliders for long-term durability

• Clear-floor design for unobstructed workspace

• Overhead shut-off bar prevents lift-overrun

• Stackable rubber pads with 1.5”, 2.5”, and 5” adapters included

• Standard dual height settings fit various ceiling heights

• Includes toe guards and tool trays

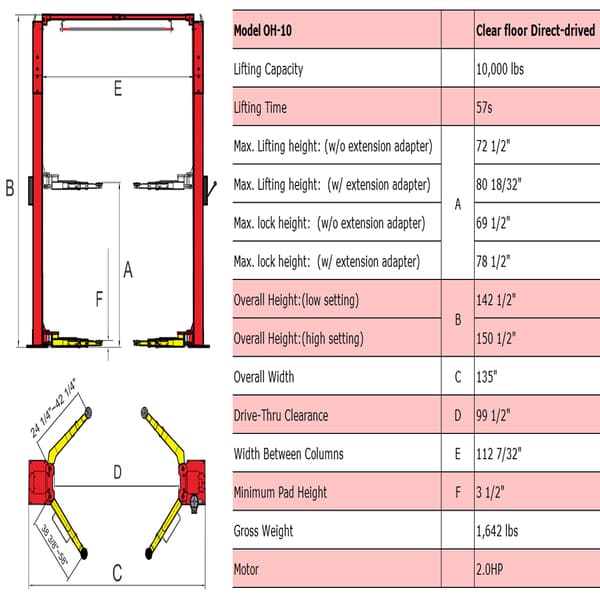

AMGO OH-10 10,000 lb Lift Specifications

• Lift Type: Two-post, clear floor

• Capacity: 10,000 lbs

• Certification: ALI Certified

• Hydraulic System: Dual direct-drive cylinders

• Loading Configuration: Symmetric or asymmetric

• Height Settings: Two standard height options

• Optional Width: Adjustable configuration availableOH-10
  ALI Certified

• Safety: Overhead shut-off and single-point lock release

• Pads & Adapters: Stackable rubber pads (1.5", 2.5", 5")

• Accessories: Toe guard, tool tray, UHMW sliders, sync cables

OH-10 Two Post Lift Installation Manual

Download AMGO OH-10 Installation Manual (PDF)
