AMGO MRL09 9,000 lb Mid-Rise Scissor Service Lift

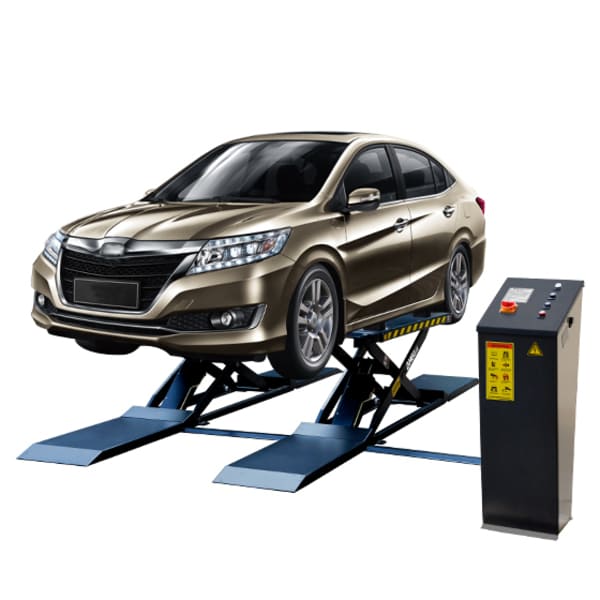

AMGO MRL09 Mid-Rise Scissor Car Lift

Designed for quick service and easy access, the AMGO MRL09 features an innovative two-stage runway that creates a low-profile, drive-on design for low-clearance vehicles. Ideal for quick service bays, tire shops, and garages, this lift supports up to 9,000 lbs with minimal maintenance required. Its flush or surface mount versatility and adjustable platform make it a top choice for automotive professionals who need reliability, speed, and space-efficiency.

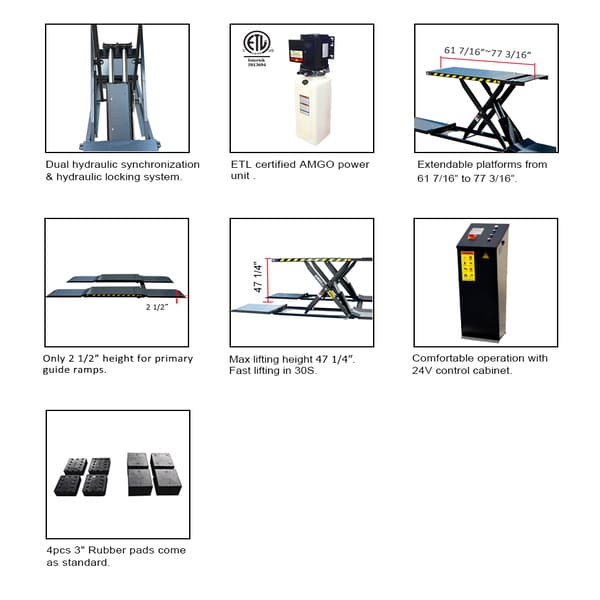

MRL09 Mid-Rise Car Lift Features

• 9,000 lbs lifting capacity

• Dual hydraulic synchronization & locking system

• 24V control system for added safety

• Two-stage low-profile ramps for ultra-low vehicles

• Adjustable platform length for different wheelbases

• Flexible flush or surface mount installation

• Thickened steel scissor arms for added strength

• ETL-certified power unit

• AMGO’s 5-3-2 warranty (5 years steel, 3 years hydraulic, 2 years electrical)

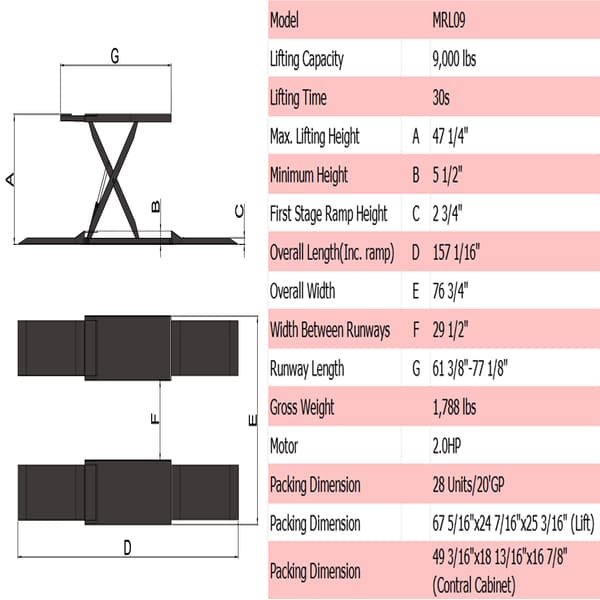

AMGO MRL09 Scissor Lift Specifications

• Lifting Capacity: 9,000 lbs

• Max Lifting Height: [Insert actual spec if known]

• Runway Length: Adjustable

• Voltage: 24V safety control

• Installation Options: Flush mount or surface mount

• Safety System: Dual hydraulic lock + mechanical

AMGO MRL09 Installation Manual

Download the MRL09 Installation Manual (PDF)
