AMGO BP-12 12,000 lb Open Top Base Plate Truck Lift

Engineered for power and precision, the AMGO BP-12 is a standout in the world of heavy-duty base plate lifts. Featuring 12,000 lbs capacity, extra-long three-stage retractable arms, and two width configurations, it handles everything from compact vehicles to oversized trucks with ease. Its open-top design makes it an excellent choice for low-ceiling garages and busy commercial shops alike. Whether you're outfitting a service bay or a home garage, the BP-12 offers unmatched versatility and durability.

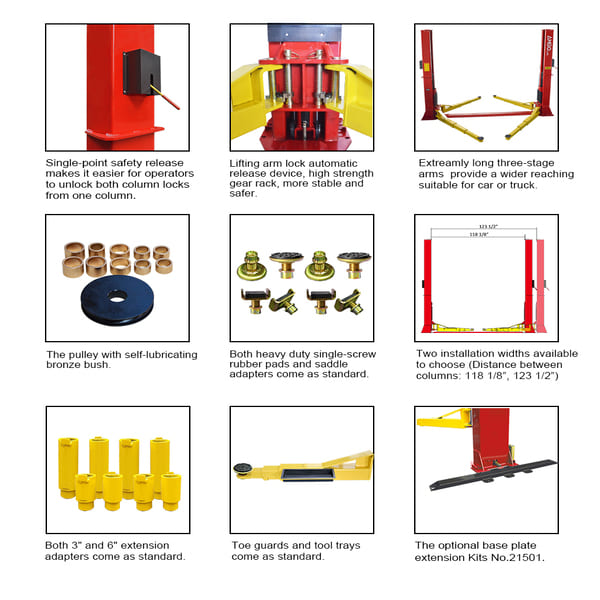

BP-12 Open Top Base Plate Lift Features

• 12,000 lb lifting capacity

• Three-stage retractable arms for wide-range vehicle compatibility

• Base plate design supports vehicles with low ceiling clearance

• Two installation width options: 118 1/8″ and 123 1/2″ between columns

• Single-point manual safety lock release unlocks both columns at once

• Self-lubricating UHMW polyethylene sliders for low maintenance

• Automatic arm restraints for added safety

• Areo sync cables included as standard

• Detachable toe guard and tool tray for technician convenience

• Includes heavy-duty single-screw rubber pads and saddle adapters

• Comes standard with 3” and 6” extension adapters

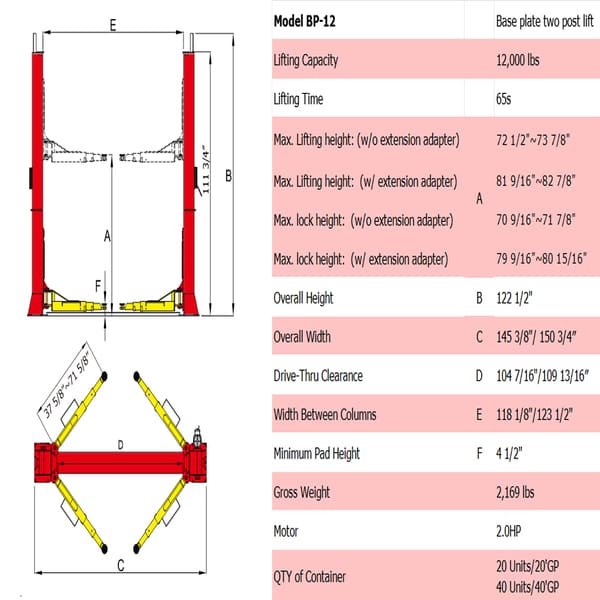

AMGO BP-12 Heavy Duty Car Lift Specifications

• Lift Capacity: 12,000 lbs

• Arm Type: 3-stage retractable arms

• Column Width Options: 118 1/8″ or 123 1/2″

• Design: Open-top base plate

• Safety Mechanism: Single-point manual release

• Adapters Included: 3” & 6” extension adapters, saddle adapters

• Ideal For: Commercial shops and home garages with low ceilings

• Build Features: UHMW sliders, Areo sync cables, tool tray

BP-12 Base Plate Lift Installation Manual

Download the AMGO BP-12 Manual (PDF)
